Description

Models

190-15kg, 190-20kg, 190-30kg, 190-50kg, 190-75kg, 190-120kg, 190-200kg, 190-250kg, 190-350kg, 190-400kg

Features

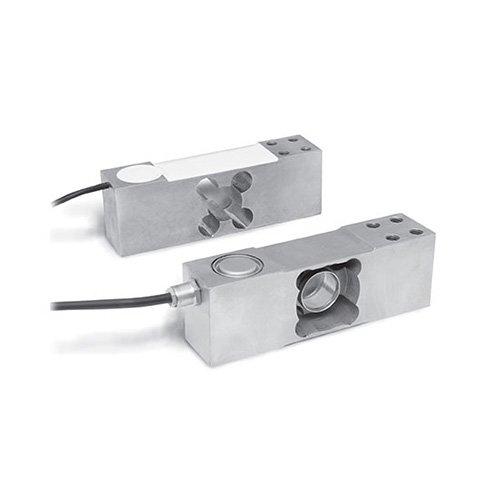

 Double bending beam load cell
 Versions:
– 190a (50…400kg): Nickel-plated Alloy Steel
Silicone sealing, IP 66 (EN 60529),
4000 divisions OIML R60 class C
– 190i (15…400kg): Fully Stainless Steel construction
Hermetically sealed, fully welded, IP 68 (EN 60529)
and IP 69K (ISO 20653), 3000 div.
OIML R60 class C
 High accuracy with off-center loads
 Available in ATEX version (optional)
Zone 0-1-2 (gas) and 20-21-22 (dust)
 Applications: direct platforms up to 600 x 600 mm
or 800 x 800 mm; filling scales

Dimensions

Specifications
