Description

Models

190iD-15kg, 190iD-20kg, 190iD-30kg, 190iD-50kg

Features

 Double bending beam load cell
 Fully stainless steel
 3000 div. OIML R60 class C
 Weighing functions according to EN 45501
and OIML R76
 High speed: 1600 reading per second
 Selectable digital filters for high speed
weighing
 Digital CAN bus interface with CANopen
protocol
 Direct output in weight units
 Hermetically sealed, fully welded, protection
IP 68 (EN 60529) and IP 69K (ISO 20653)
 High accuracy with offcenter loads
 Applications: multihead weighers, packing,
bagging and filling machines, direct platform up to 600 x 600 mm

Dimensions

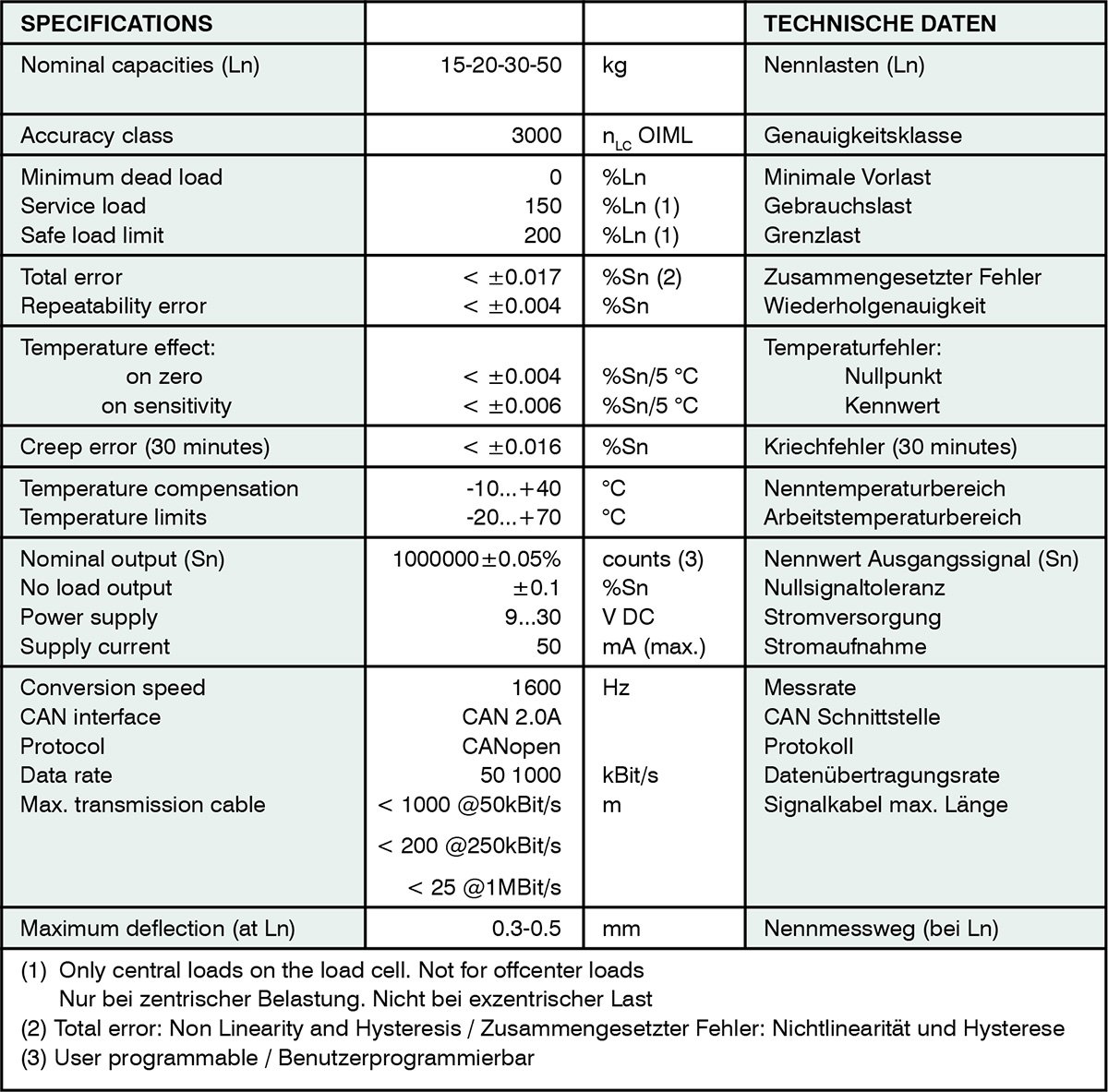

Specifications
