Description

Models

200-2kg, 200-3kg, 200-5kg, 200-7.5kg, 200-10kg, 200-15kg, 200-20kg, 200-30kg

Features

 Double bending beam load cell with
Beryllium-Copper measuring element:
– Outstanding linearity and hysteresis
– High resistance at fatigue and shock
 Viscous damping specially for use in
dynamic weighing applications:
– Faster settling time
– Higher weighing speeds
– Increase load cell life
 Stainless-Steel housing
 Protected against humidity IP 65
(EN 60529)
 Single point load cell, for off-center loads
 Integrated on-center overload protection
 6 wire (senses) electrical connection

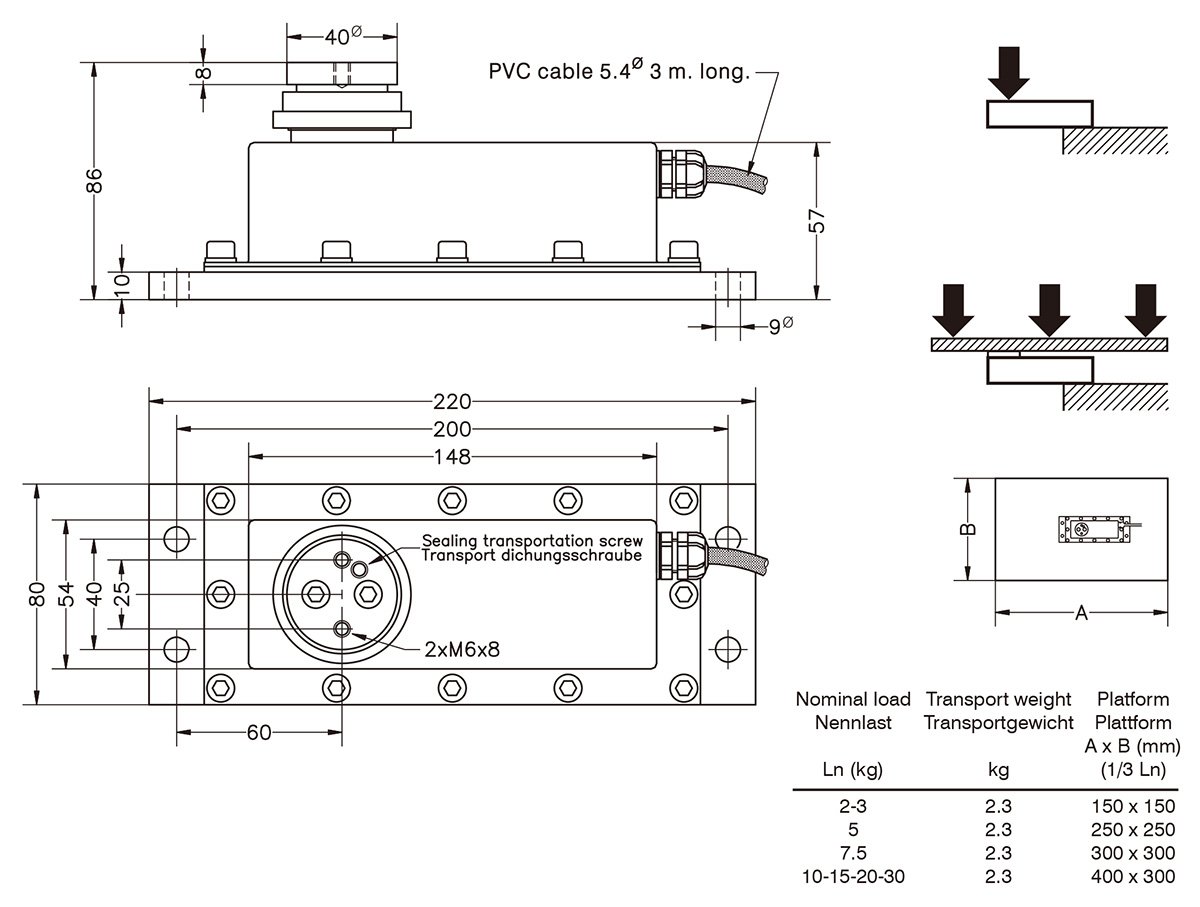

Dimensions

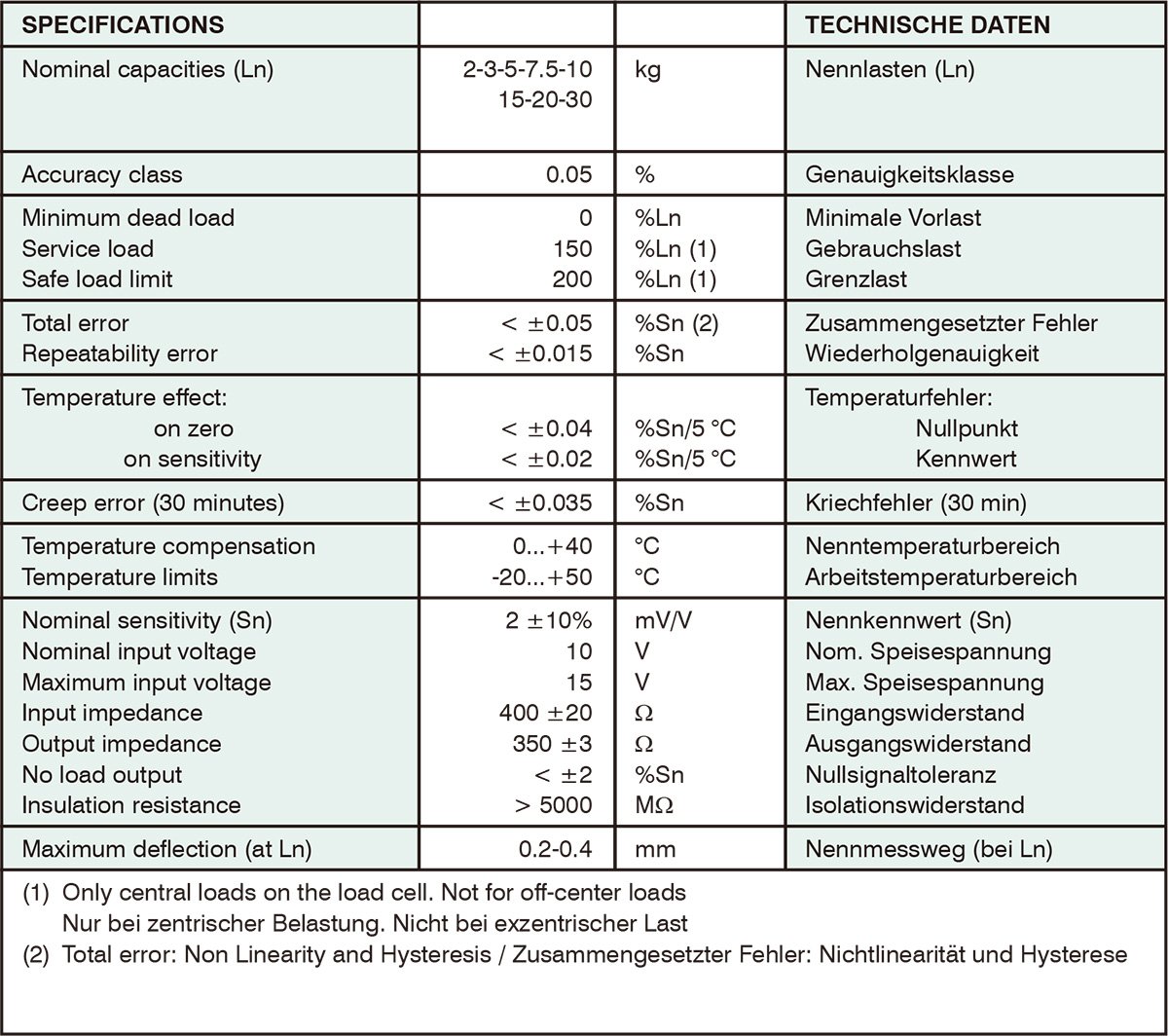

Specifications
