Description

Models

260-5kg, 260-7.5kg, 260-10kg, 260-15kg, 260-20kg, 260-35kg, 260-50kg, 260-75kg, 260-120kg, 260-200kg

Features

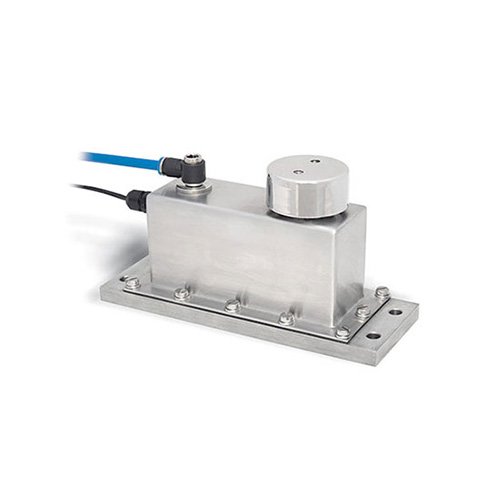

 Double bending beam load cell
 3000 divisions OIML R60 class C
 Viscous damping specially for use in
dynamic weighing applications:
– Faster settling time
– Higher weighing speeds
– Increase load cell life
 Stainless-Steel housing
 Protected against humidity IP 68
(EN 60529)
 Single point load cell, for off-center loads
on platforms up to 500 x 500 mm (5…35 kg)
and 600 x 600 mm (50…200 kg)
 Integrated on-center overload protection,
with a dual stopper for up and down loads

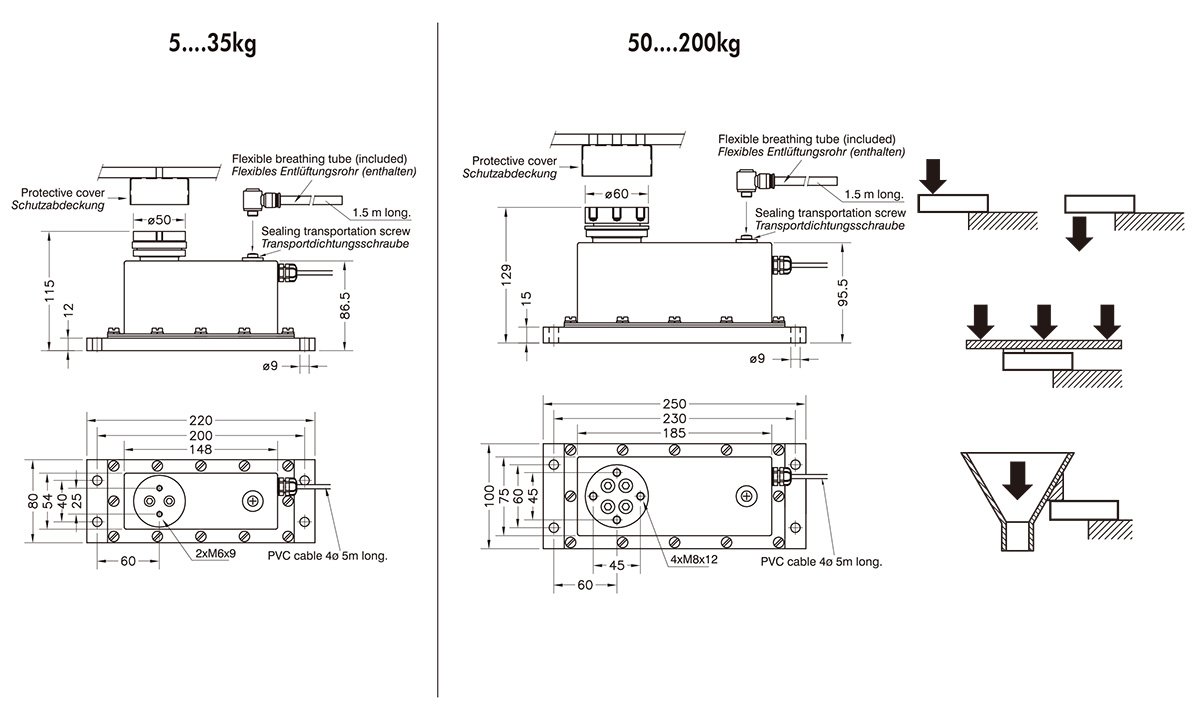

Dimensions

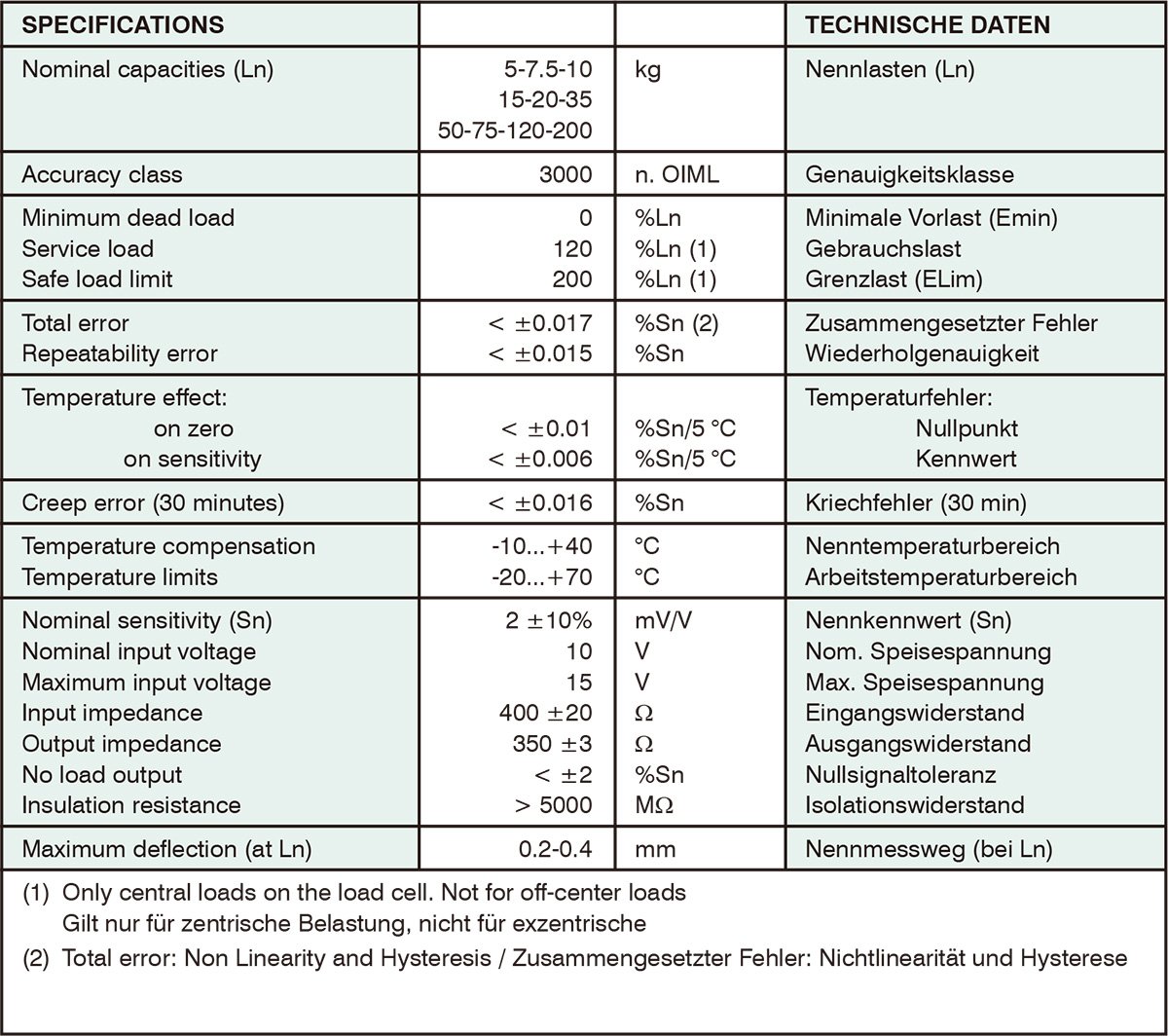

Specifications
