Description

Models

350-300kg, 350-500kg, 350-750kg, 350-1000kg, 350-1500kg, 350-2000kg, 350-3000kg, 350-5000kg, 350-7500kg, 350-10000kg

Features

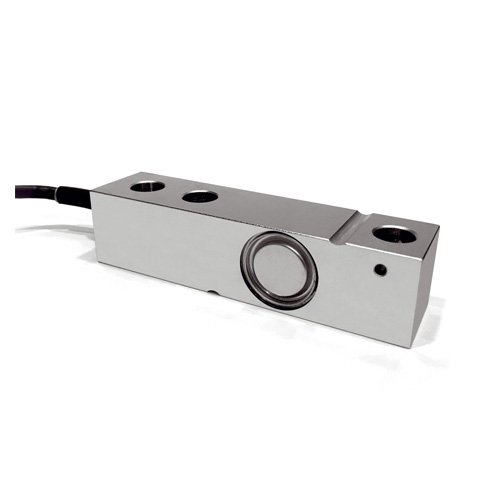

 Shear beam load cell
 Versions:
– 350i (300…5000 kg): Fully Stainless Steel
construction. Hermetically sealed, fully
welded, IP 68 (EN 60529) and IP 69K (ISO 20653)
– 350a (300…5000 kg): Stainless Steel construction. Silicone sealing, IP 66 (EN 60529)
– 350n (300…5000 kg): Nickel-plated alloy
steel. Silicone sealing, IP 66 (EN 60529)
 3000 divisions OIML R60 class C
 Pre-corner adjustment optimized for multicell
systems
 Available in ATEX version (optional)
Zone 0-1-2 (gas) and 20-21-22 (dust)
 High accuracy on industrial applications:
– four load cells platforms
– tanks and hoppers weighing

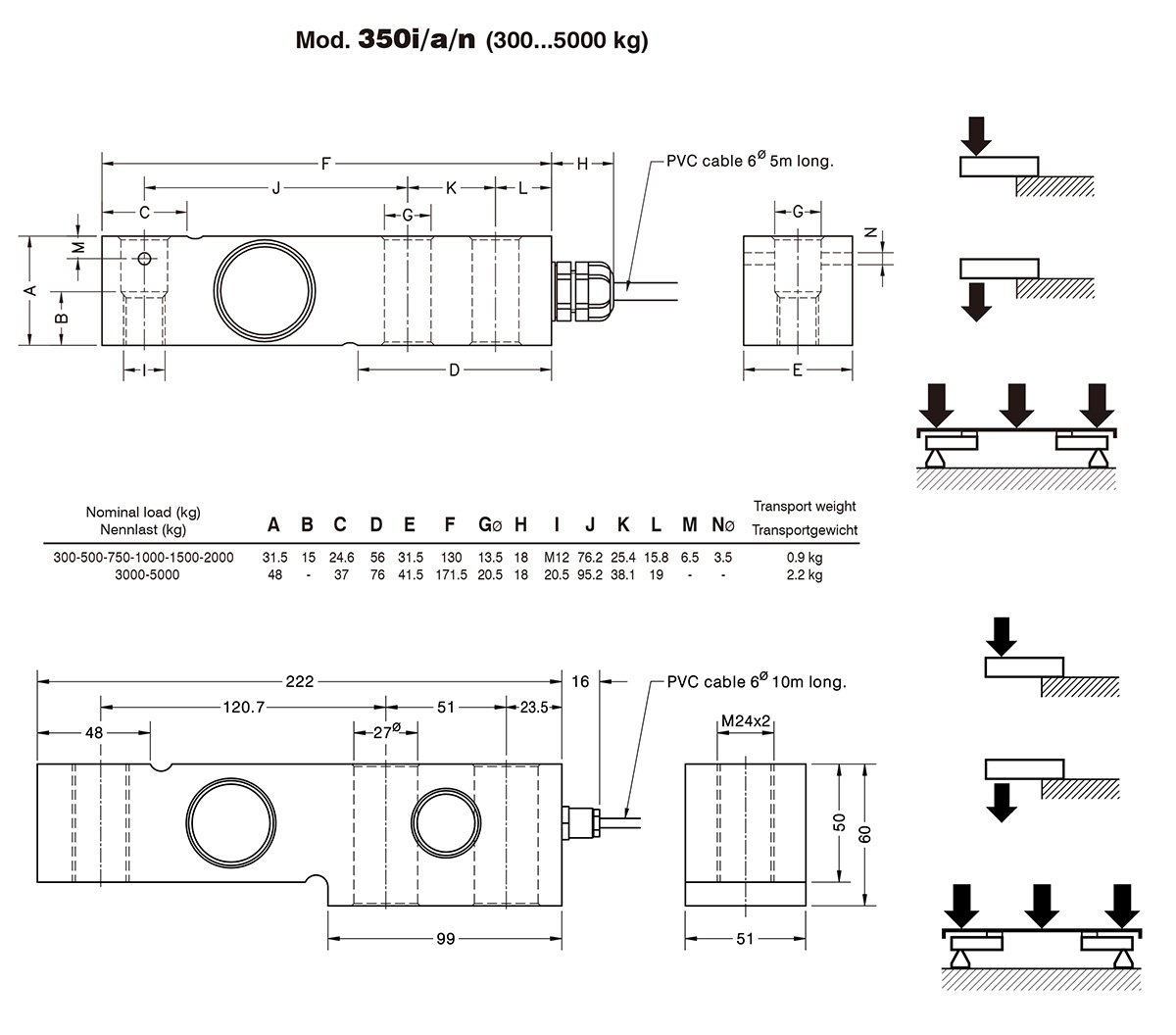

Dimensions

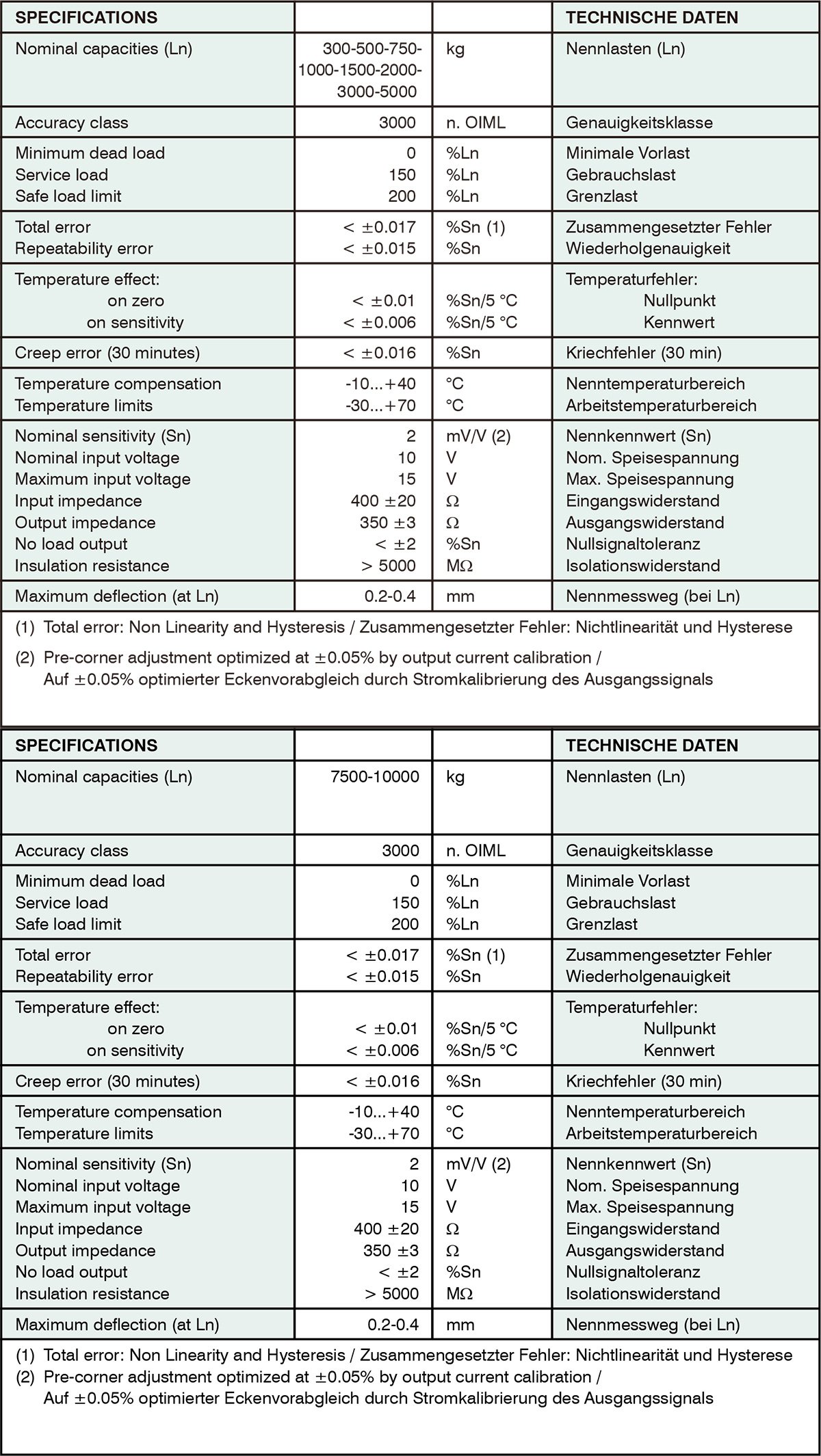

Specifications
