Description

Models

350T-300kg, 350T-500kg, 350T-750kg, 350T-1000kg, 350T-1500kg, 350T-2000kg

Features

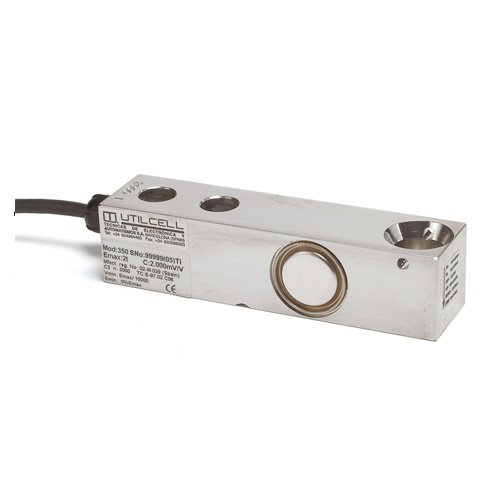

 Shear beam load cell
 Option T for model 350 with blind loading hole
 Versions:
– 350Ti: Fully Stainless Steel construction.
Hermetically sealed, fully welded,
IP 68 (EN 60529) and IP 69K (ISO 20653)
– 350Ta: Stainless Steel construction.
Silicone sealing, IP 66 (EN 60529)
 3000 divisions OIML R60 class C
 Pre-corner adjustment optimized for multicell
systems
 Available in ATEX version (optional)
Zone 0-1-2 (gas) and 20-21-22 (dust)
 High accuracy on industrial applications
specially for four load cells platforms

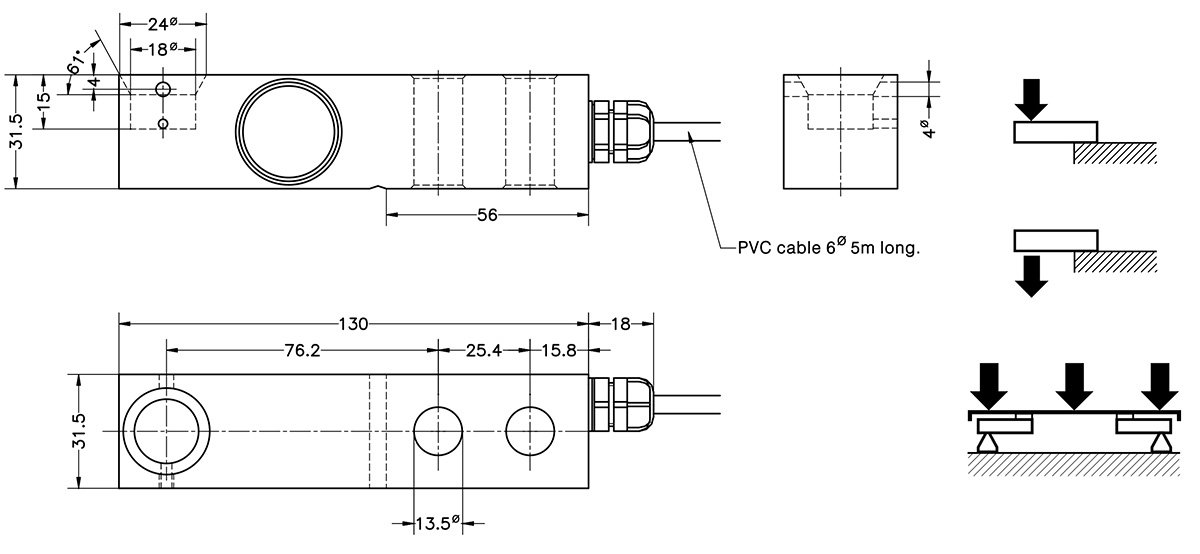

Dimensions

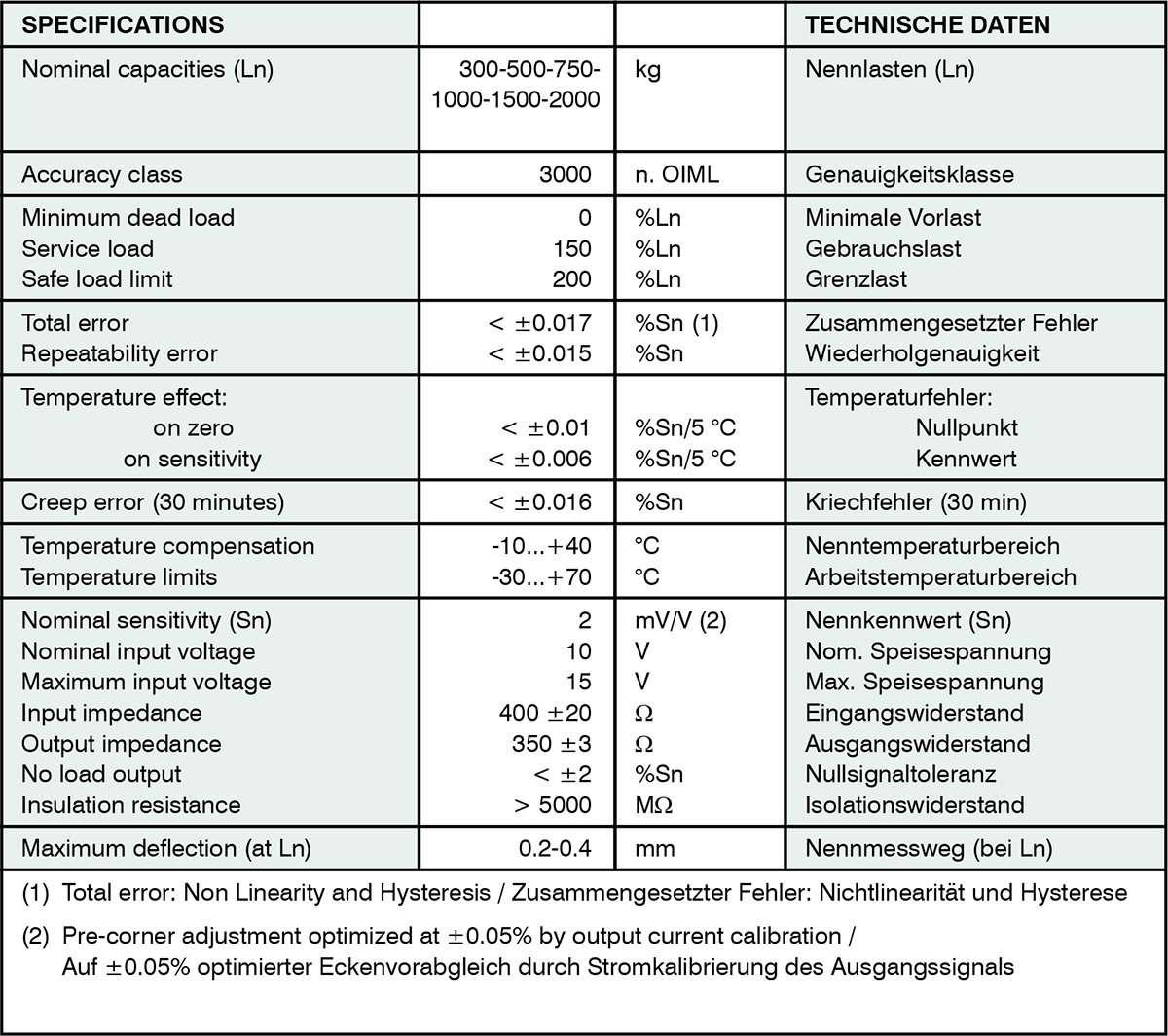

Specifications
