Description

Models

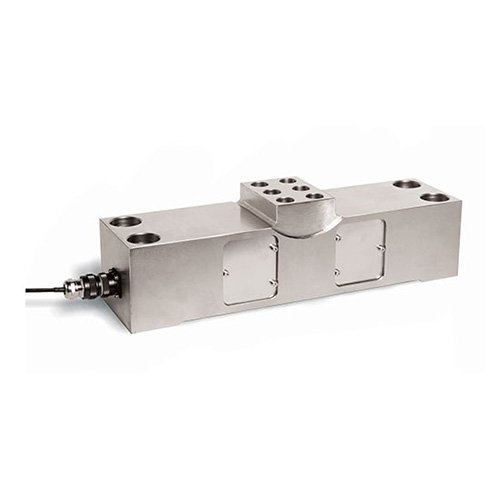

490-40t, 490-50t, 490-100t, 490-150t, 490-200t

Features

 Double shear load cell
 Accuracy class ±0.05%
 Service temperature up to 150 °C
 Measuring element from Alloy Steel with
nickel plated treatment
 Input cable connection through hermetic
connector
 Protected IP 67 (EN 60529)
 Applications: Ladle turret and ladle ferry
scales, scrap bucket, roller table, tundish
cars, hopper and silos in high temperature
environments for the Metal Industry

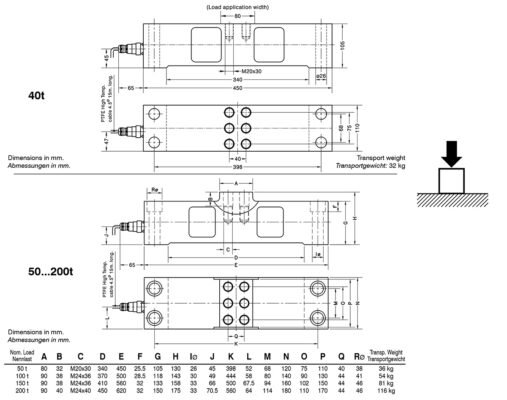

Dimensions

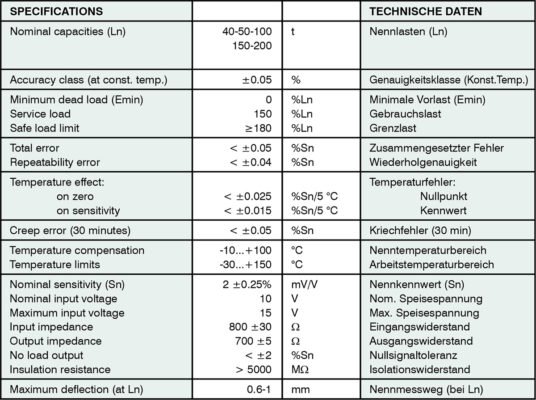

Specifications
