Description

Models

650-250kg, 650-500kg, 650-1000kg, 650-2000kg, 650-5000kg, 650-7500kg

Features

 Tension/compression load cell
 Stainless Steel construction
 Hermetically welded, protected IP 68
(EN 60529)
 3000 divisions OIML R60 class C *
 Available in ATEX version (optional)
Zone 0-1-2 (gas) and 20-21-22 (dust)
 Applications:
– Suspended weighing in Tanks, Hoppers
and Belt Conveyor Scales
– Asphalt and Concrete Plants
– Force measurement in Test Equipment
– Conversion from mechanical to electronic scales
– Crane scales

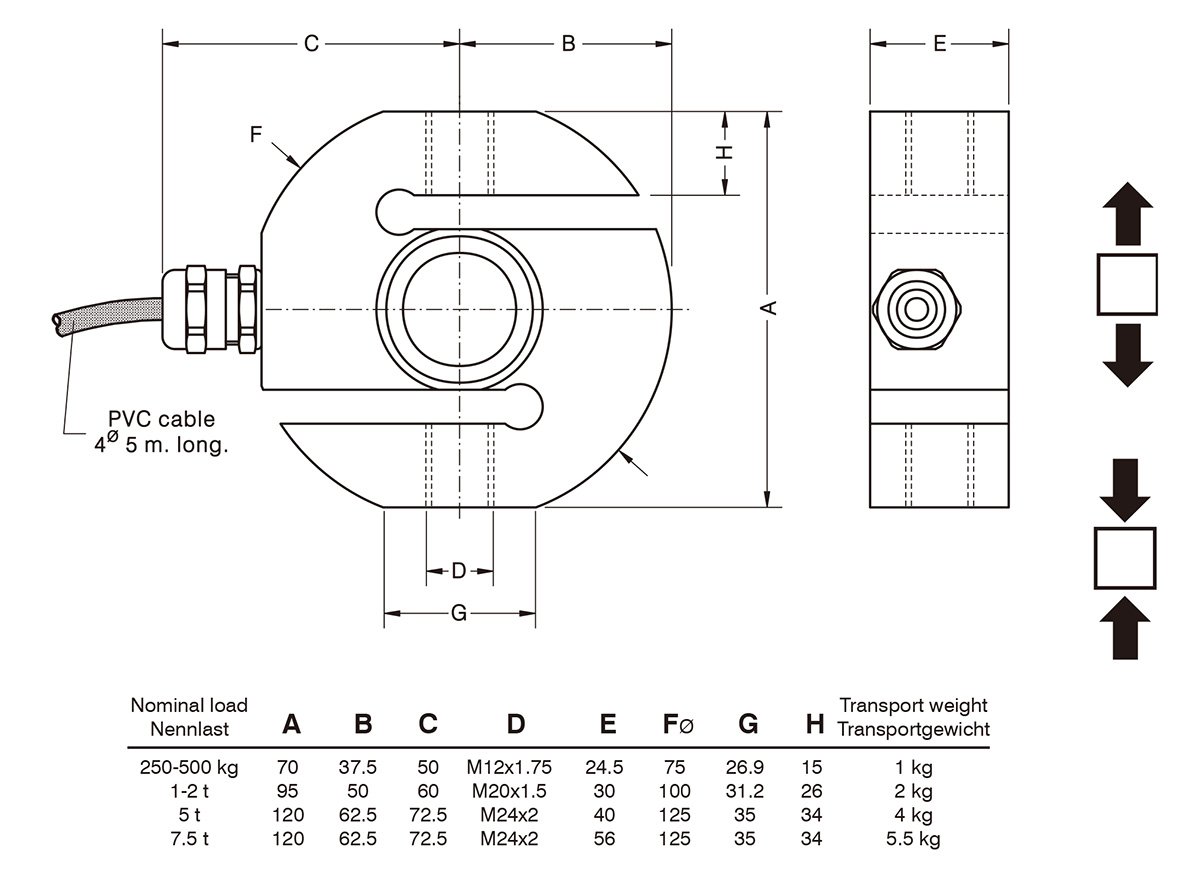

Dimensions

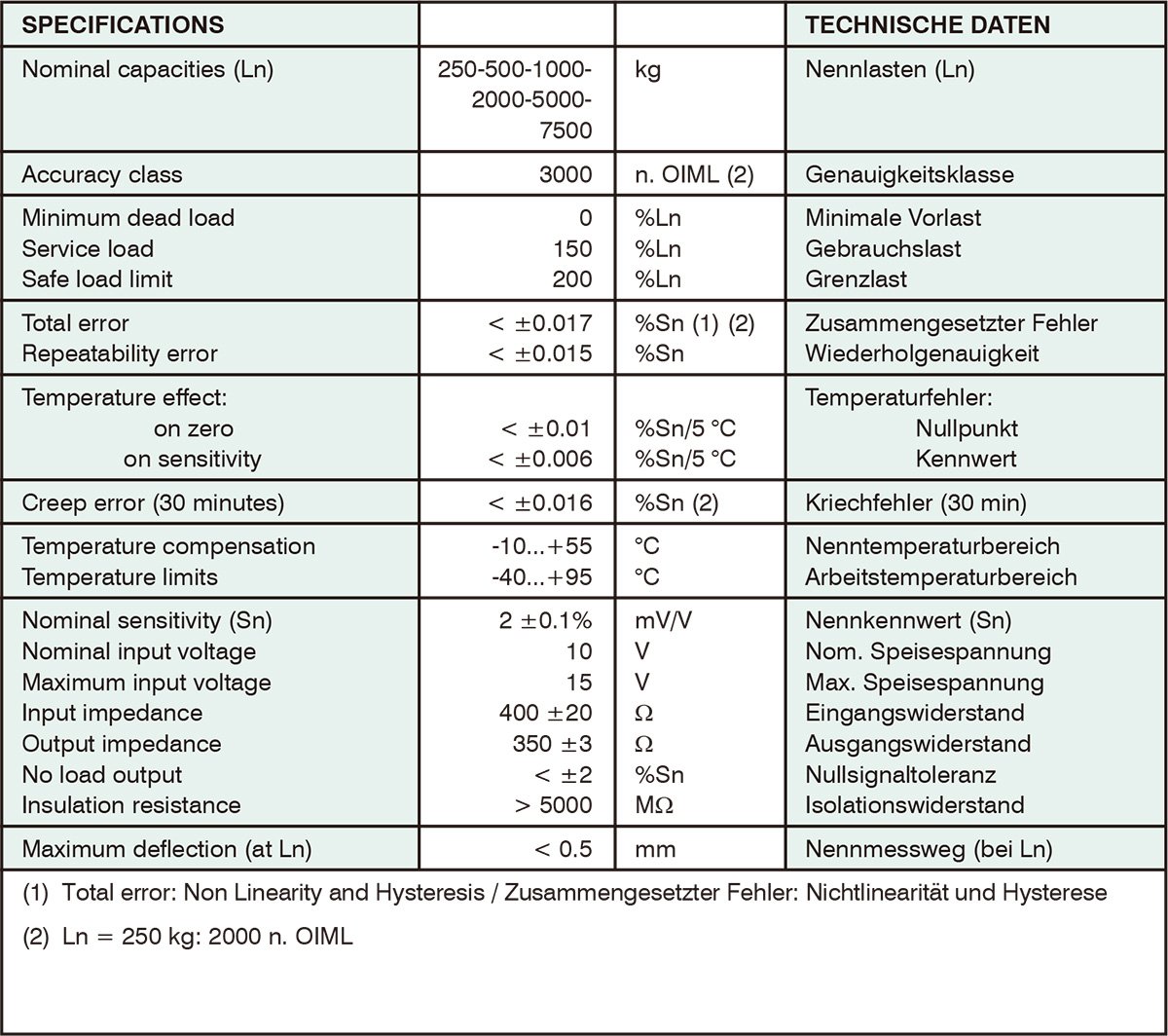

Specifications
