Description

Models

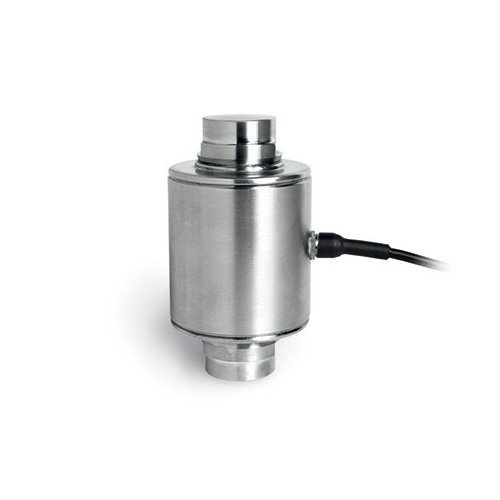

730D-30t, 730D-40t

Features

 Digital compression load cell,
selfcentering column
 4000 / 5000 divisions OIML R60 class C
 Stainless Steel construction
 Hermetically welded, protection class
IP 68 (EN 60529) and IP 69K (ISO 20653)
 Lightning protection
 Digital interface RS-485 fullduplex
 High speed of 200 readings/second
 Configuration and updatable software
through serial interface
 Advantages in system setup, corner
adjustment and individualized diagnosis
 Applications: High capacity weighing
systems, truck scales

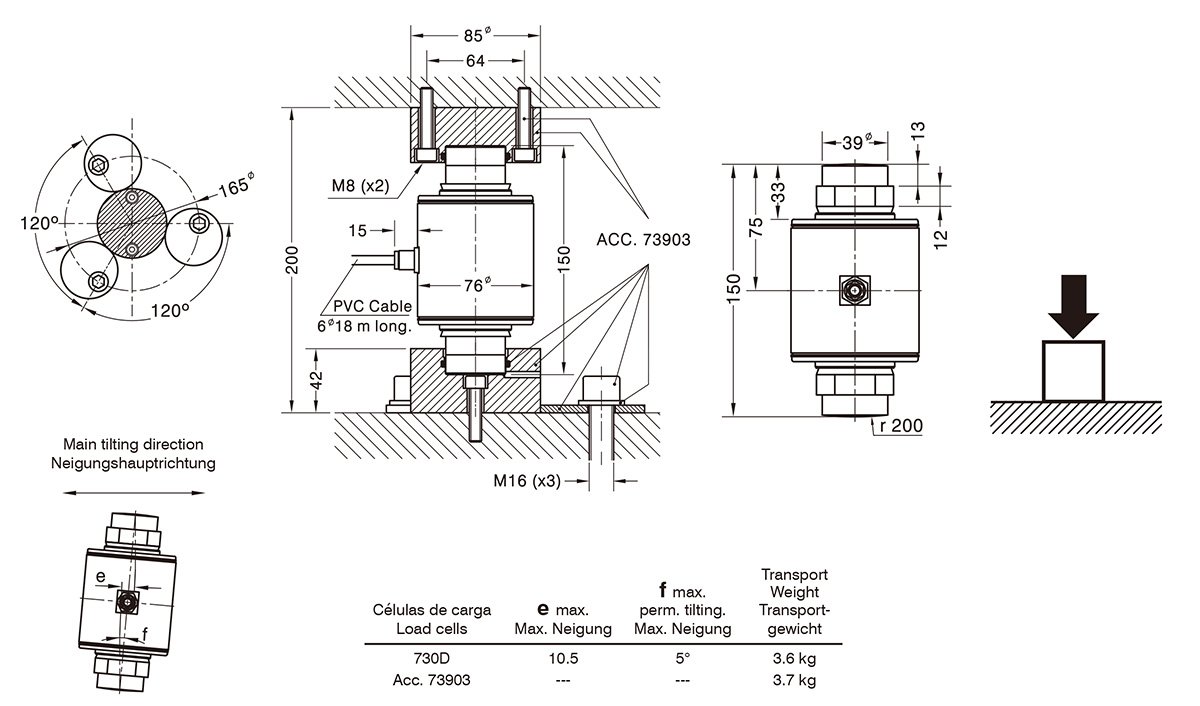

Dimensions

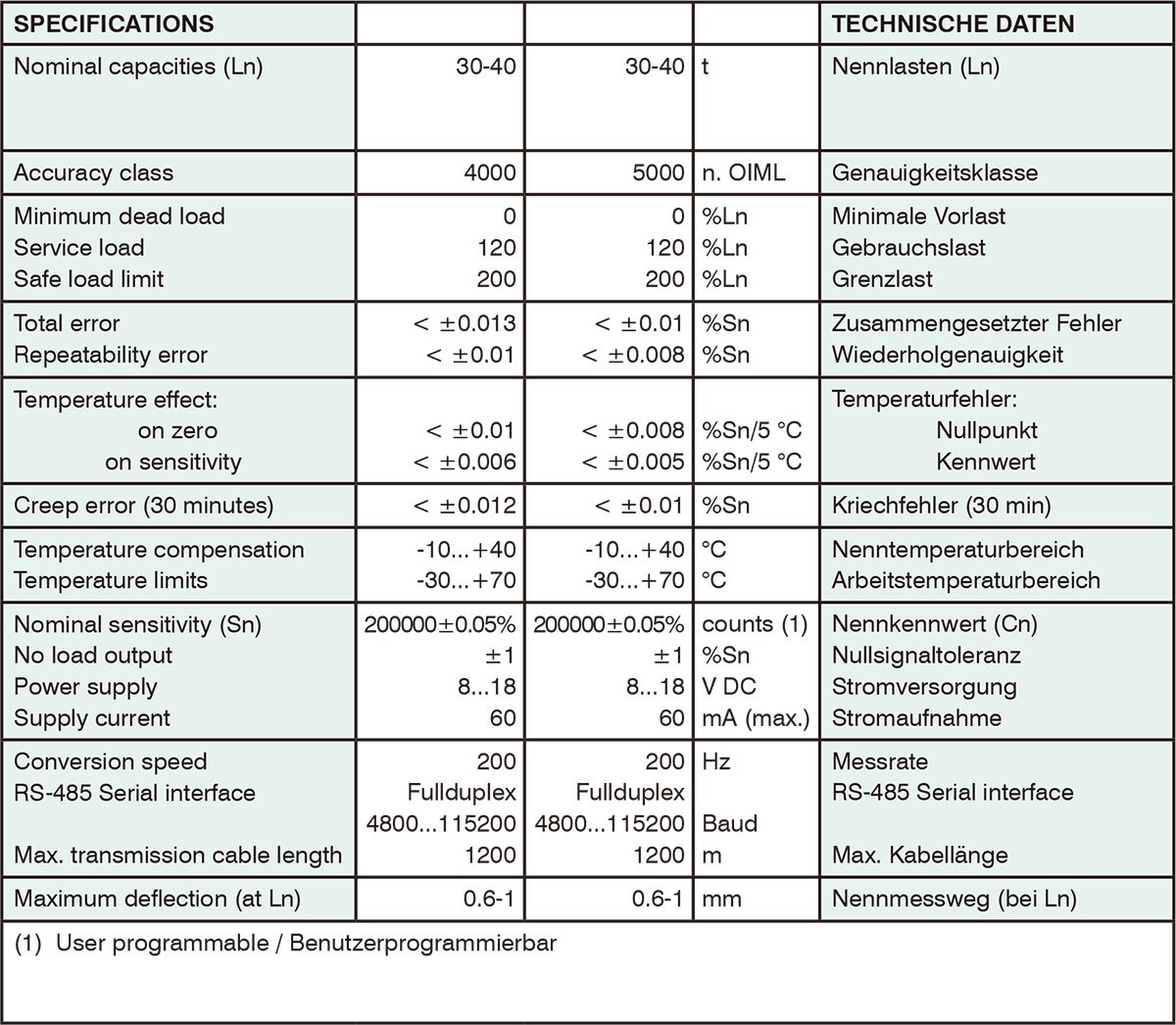

Specifications
