Description

Models

740CP-15t, 740CP-20t, 740CP-25t, 740CP-30t, 740CP-40t, 740CP-50t, 740CP-60t

Features

 Compression load cell, selfcentering column
 4000 divisions OIML R60 class C
 Available in ATEX version (optional)
Zone 0-1-2 (gas) and 20-21-22 (dust)
 Stainless Steel construction
 Hermetically welded, protection class
IP 68 (EN 60529) and IP 69K (ISO 20653)
 Pre-corner adjustment optimized for multicell systems
 Lightning protection
 Applications: High capacity weighing
systems, truck scales

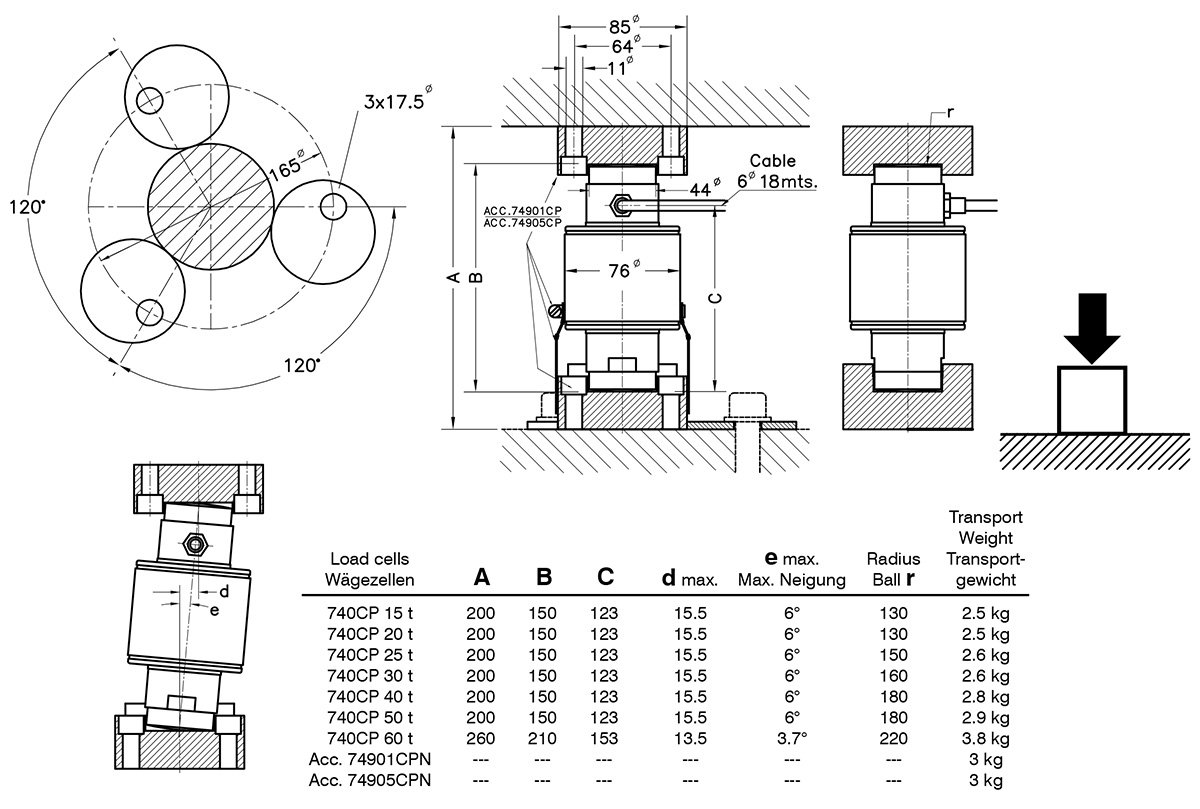

Dimensions

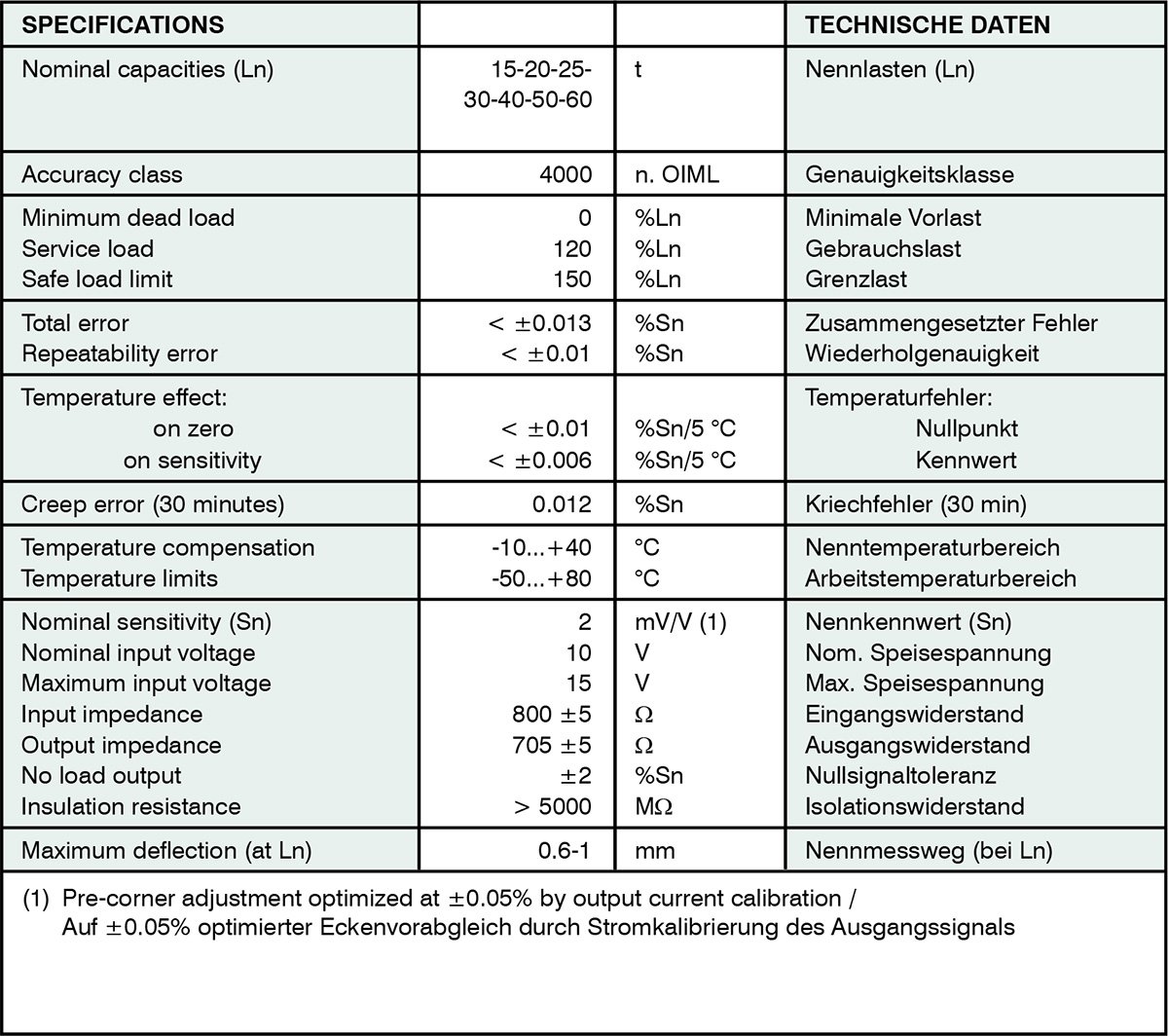

Specifications
