Description

Models

N/A

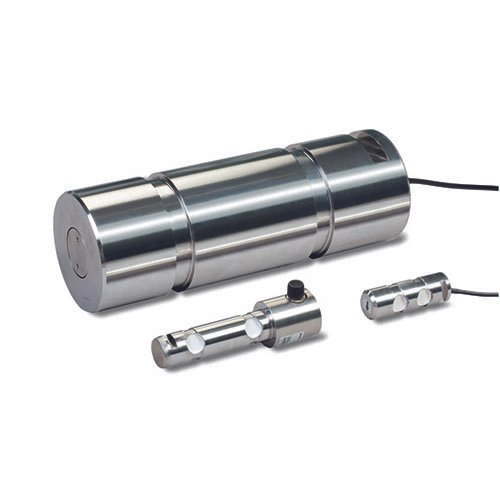

Features

 Measuring Load Pin with customized
diameters and lengths to replace existing
axles
 Double shear beam load cell principle
 Measuring element from High Tensile
Stainless Steel
 Protected IP 66 (EN 60529)
 Easy to install
 Available in ATEX version (optional)
Zone 0-1-2 (gas) and 20-21-22 (dust)
 Applications:
• Overload protection, weighing, force
monitoring, safety and industrial
measurement
• Cranes, hoisting devices and lift equipment
• Load limiting in conveyor systems
• Trucks, trailers and mobile machinery
OPTIONS:
• Hermetically sealed with
Protection up to IP 68
• Electrical Connectors
• Integrated Amplified outputs
(0/4…20mA, -10…0…+10V)
• High Temperature up to 180 °C
• Redundant output

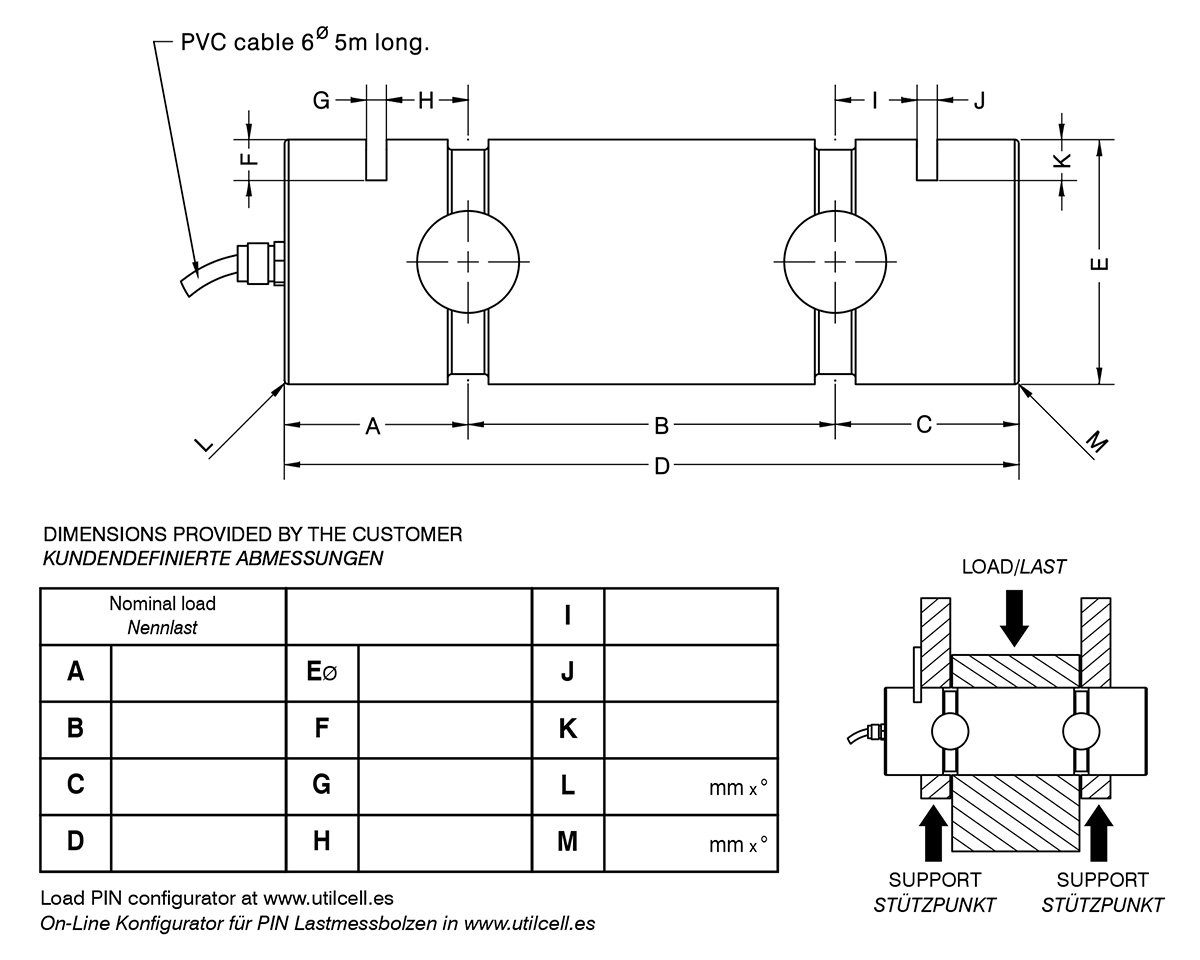

Dimensions

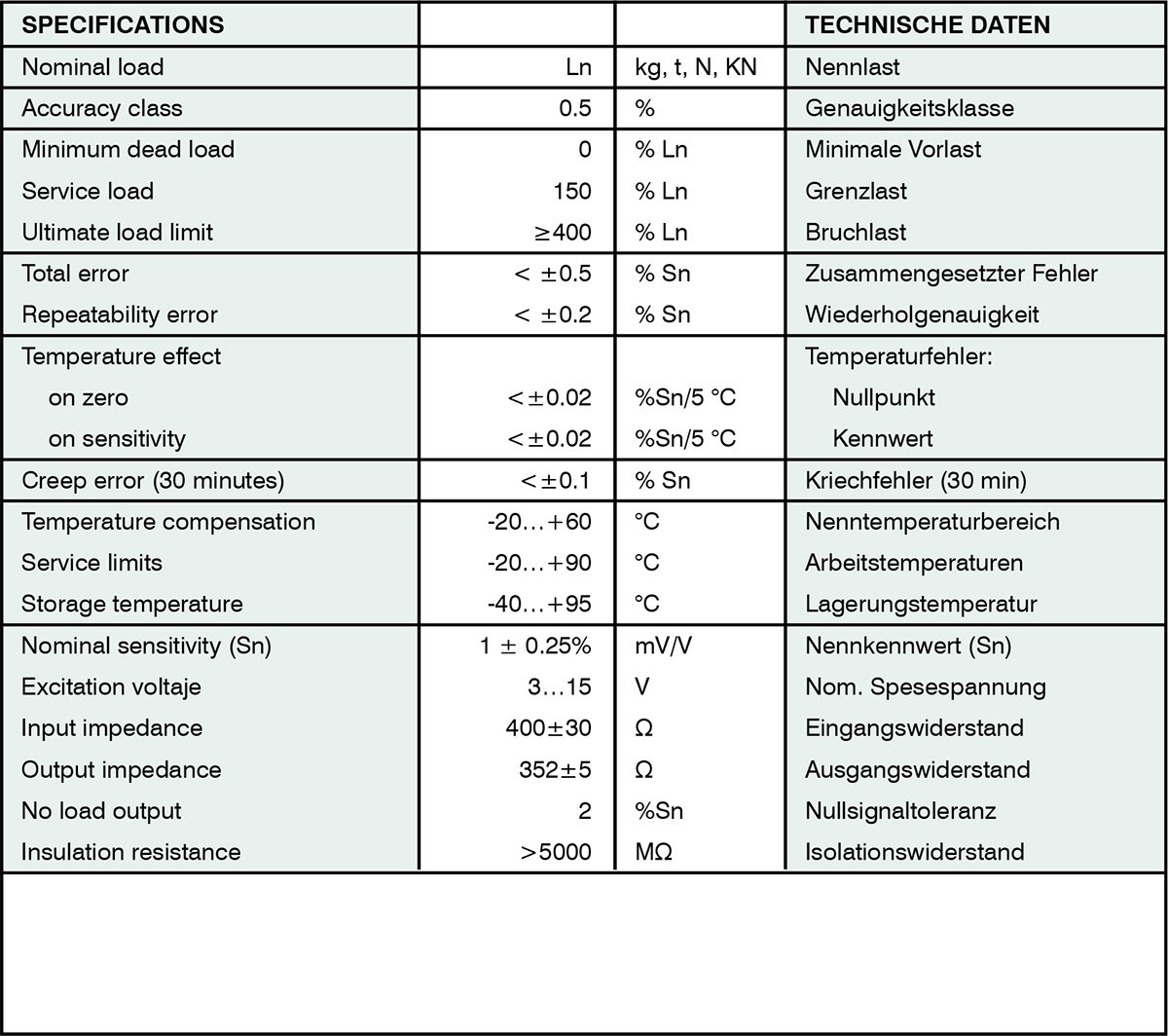

Specifications
