Description

Models

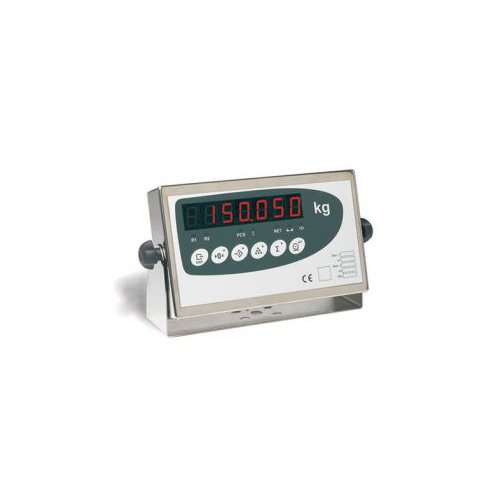

SMART, SMART ABS, SMART ATEX

Features

OIML R76 & EN 45501 Approved, single or Multi- range, 6000 div at 0,6 μV/div.
Display 7 digit 20mm LED high bright.
High resolution: 24 bits A/D, 16.000.000 internal
divisions; 100.000 external divisions.
Friendly configuration and calibration menu.
Calibration by Masses or in mV/V, allowing the start-up without calibration masses entering the load
cell capacity and sensitivity in mV/V.
Calibration sealing by software or mechanically
Power up to 4 load cells (350 Ω) or up to 8 load cells (700 Ω).
RS-232 serial port for PC, printer or remote display connection.
Mounting: bench/wall mounting kit.
External Power supply 110-230 V AC 50/60 Hz.
High electromangnetic interference protection
using filters, ferrites and shields.
Multi-range: for a dual range and dual division size.
Standard Ticket or customized from PC.
Linearity correction.

Dimensions

Specifications
