Description

Models

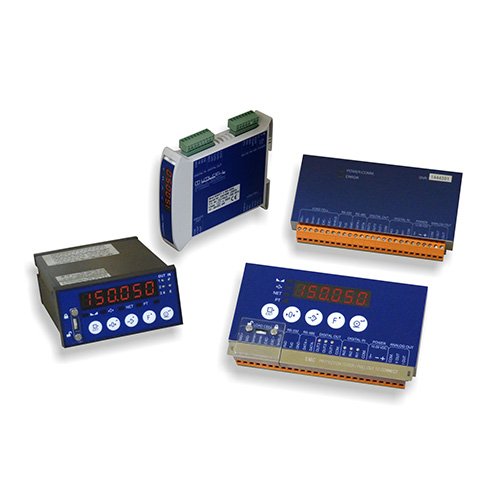

SWIFT RAIL, SWIFT COM, SWIFT PANEL, SWIFT V

Features

 Display 6 digit 10 mm LED.
 High resolution: 24 bits ADC with 16.000.000 internal
divisions and 500.000 external divisions.
 High speed reading: 2400 measures per second.
 Configuration and calibration by keyboard or
computer.
 Calibration by Masses or in mV/V, allowing the
start-up without calibration masses entering the load
cell capacity and sensitivity in mV/V.
 Selectable digital filters.
 Calibration sealing by software or mechanically.
 Power up to 8 load cells (350 W) or up to 16 load
cells (700 W).
 Communication RS-232 & RS-485 (ModBus RTU &
ASCII) and optional Profibus, Profinet or Ethernet/IP.
 Analogue output configurable at 0-5 V, 0-10 V,
0-20 mA & 4-20 mA, with galvanic isolation.
 Digital opto-isolated inputs.
 Digital outputs to relay.
 DIN rail or Panel mounting.
 Power supply 10 – 28 V DC.

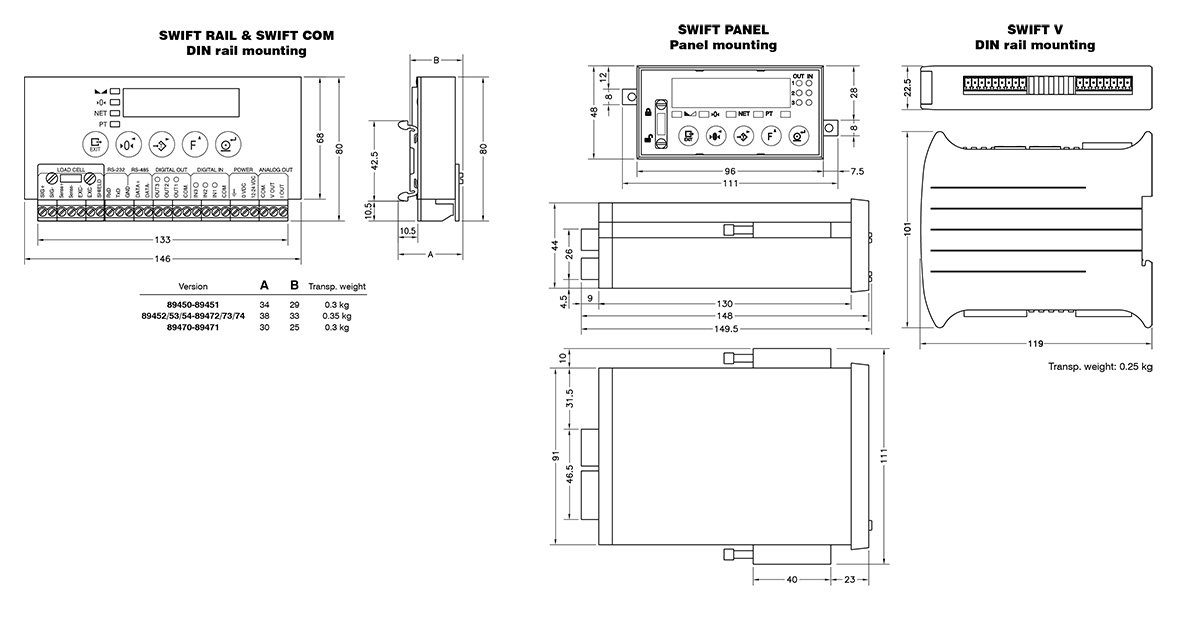

Dimensions

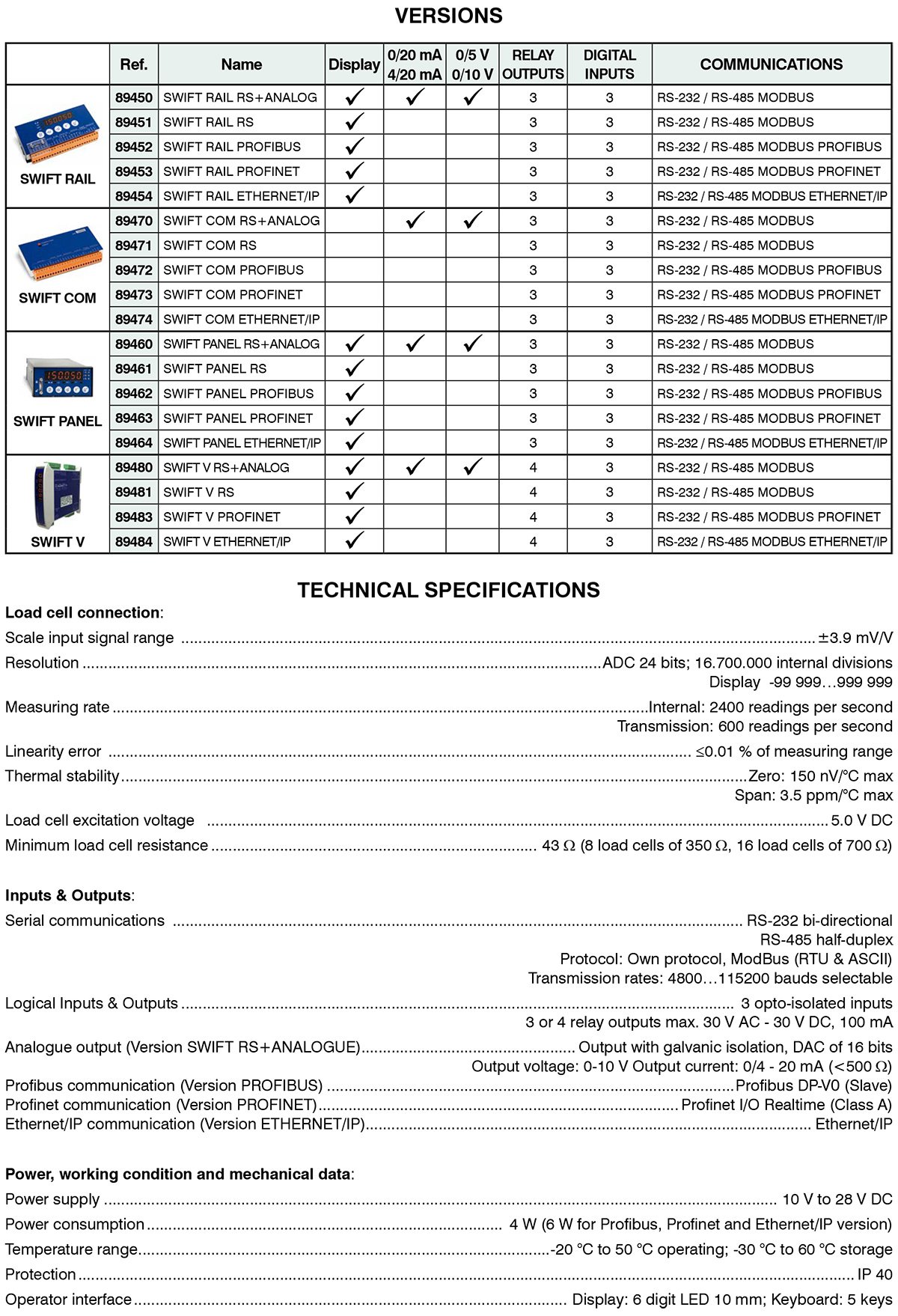

Specifications
