VLC-023 series Pin type load cell
Specifications
| Rated output |
0.500–1.500mV/V |
| Nonlinearity |
±2%R.C. |
| Hysteresis |
±2%R.C. |
| Repeatability |
±1%R.C. |
| Zero balance |
±0.1mV/V |
| Temperature effect on zero balance |
±0.3%R.C./10°C |
| Temperature effect on load |
±0.5%R.C./10°C |
| Temperature compensation range |
−10–60°C (No condensation or freezing) |
| Safe temperature range |
−10–60°C (No condensation or freezing) |
| Input terminal resistance |
345.0–355.0Ω |
| Output terminal resistance |
345.0–355.0Ω |
| Recommended excitation voltage |
12V or less |
| Maximum excitation voltage |
15V |
| Insulation resistance |
1000MΩ or more(DC50V) |
| IP Rating |
Equivalent to IP65, Sealed with filler (Note 1) |
| Cable |
φ7mm 4-core shielded cable 3m |
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection |
Model |
Rated capacity |
φd |
A |
B |
C |
φD |
F |
G |
H |
I |
J |
Weight |
| |
VLC-5KN-023 |
5kN |
30 |
96 |
28 |
60 |
44 |
10 |
8 |
24 |
4 |
4 |
Approx. 0.8kg |
| |
VLC-10KN-023 |
10kN |
| |
VLC-20KN-023 |
20kN |
| |
VLC-50KN-023 |
50kN |
40 |
116 |
30 |
83 |
49 |
14 |
10 |
35 |
6 |
9.5 |
Approx. 1.6kg |
| |
VLC-100KN-023 |
100kN |
50 |
152 |
35 |
112 |
50 |
16 |
12 |
56 |
8 |
7 |
Approx. 2.5kg |
Contact our sales office for other details, special specifications and dimensions.

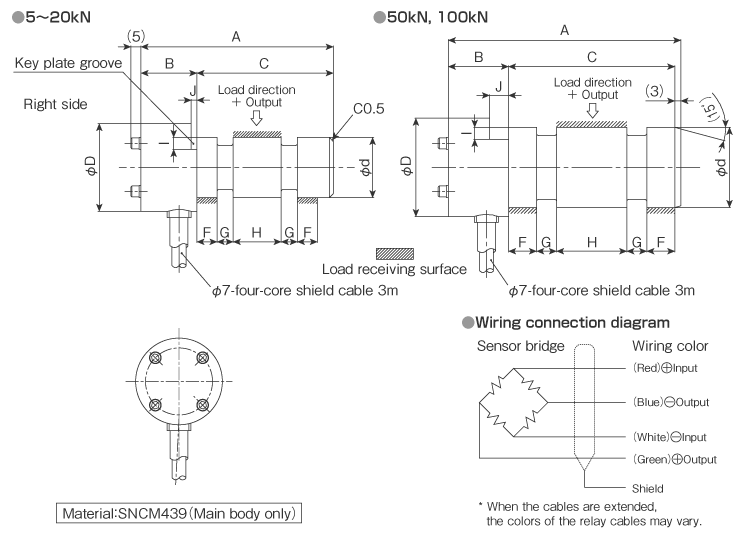

External dimensions (Unit: mm) [Reference]
