Tedea Huntleigh / Model 1042 Low Profile Aluminum Load Cell

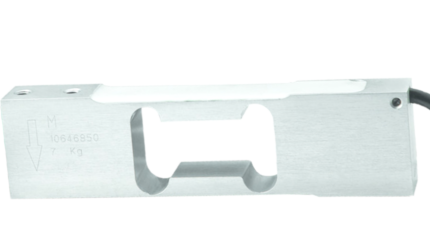

Tedea Huntleigh / Model 1042 Low Profile Aluminum Load Cell

The aluminum load cell model 1042 is a single-point low profile load cell designed for direct mounting in weighing platforms. Its high accuracy and low cost, combined with its small physical size, makes the 1040 load cell well suited for retail, bench scales and counting scales. It is available in a high stiffness version for dynamic weighing applications. OIML R60 and NTEP approved. The load cell has an IP66 protection. For hazardous environments the load cell is available in an EEx ia IIC T4 level approved version and a FM approved version. Available in the capacities 1-200 kg.

Category:
Tag:
Brand: ,

Description

Model 1042 Low Profile Aluminum Load Cell

FEATURES
• Capacities 1–200 kg
• Aluminum construction
• Single-point 400 x 400 mm platform
• OIML R60 and NTEP approved
• IP66 protection
• Available with metric and UNC threads
• Optional
❍ ATEX, FM, and IECEx approvals available
❍ High stiffness version available for dynamic weighing
applications

APPLICATIONS
• Bench scales
• Counting scales
• Grocery scales

SPECIFICATIONS
PARAMETER VALUE UNIT
Rated capacity—R.C. (Emax) 1(1), 3, 5, 7, 10, 15, 20, 30, 50, 75, 100, 150(1), 200(1) kg
NTEP/OIML accuracy class NTEP Non-Approved C3(2) C6(3)
Maximum no. of intervals (n) 5000 single 1000 3000 6000(4)
Y = Emax/Vmin 10000 1400 6000 10000 Maximum available 20000
Rated output—R.O. 2.0 mV/V
Rated output tolerance 0.2 ±mV/V
Zero balance 0.2 ±mV/V
Zero return, 30 min. 0.0100 0.0500 0.0170 0.0083 ±% of applied load
Total error (per OIML R60) 0.0200 0.0300 0.0200 0.0100 ±% of rated output
Temperature effect on zero 0.0014 0.0100 0.0023 0.0014 ±% of rated output/°C
Temperature effect on output 0.0010 0.0030 0.0010 0.00058 ±% of applied load/°C
Eccentric loading error 0.0042 0.0074 0.0049 0.0024 ±% of rated load/cm
Temp. range, compensated –10 to +40 °C
Temp. range, safe –30 to +70 °C
Maximum safe central overload 150 % of R.C.
Ultimate central overload 300 % of R.C.
Excitation, recommended 10 VDC or VAC RMS
Excitation, maximum 15 VDC or VAC RMS
Input impedance 415±20 Ω
Output impedance 350±3 Ω
Insulation resistance >2000 MΩ
Cable length 1(5) m

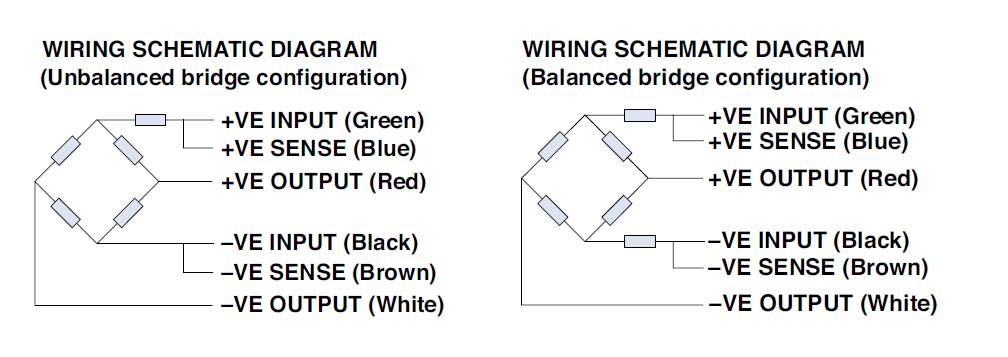

Cable type 6 wire, PVC, single loating screen Standard
Construction Plated (anodize) aluminum
Environmental protection IP66

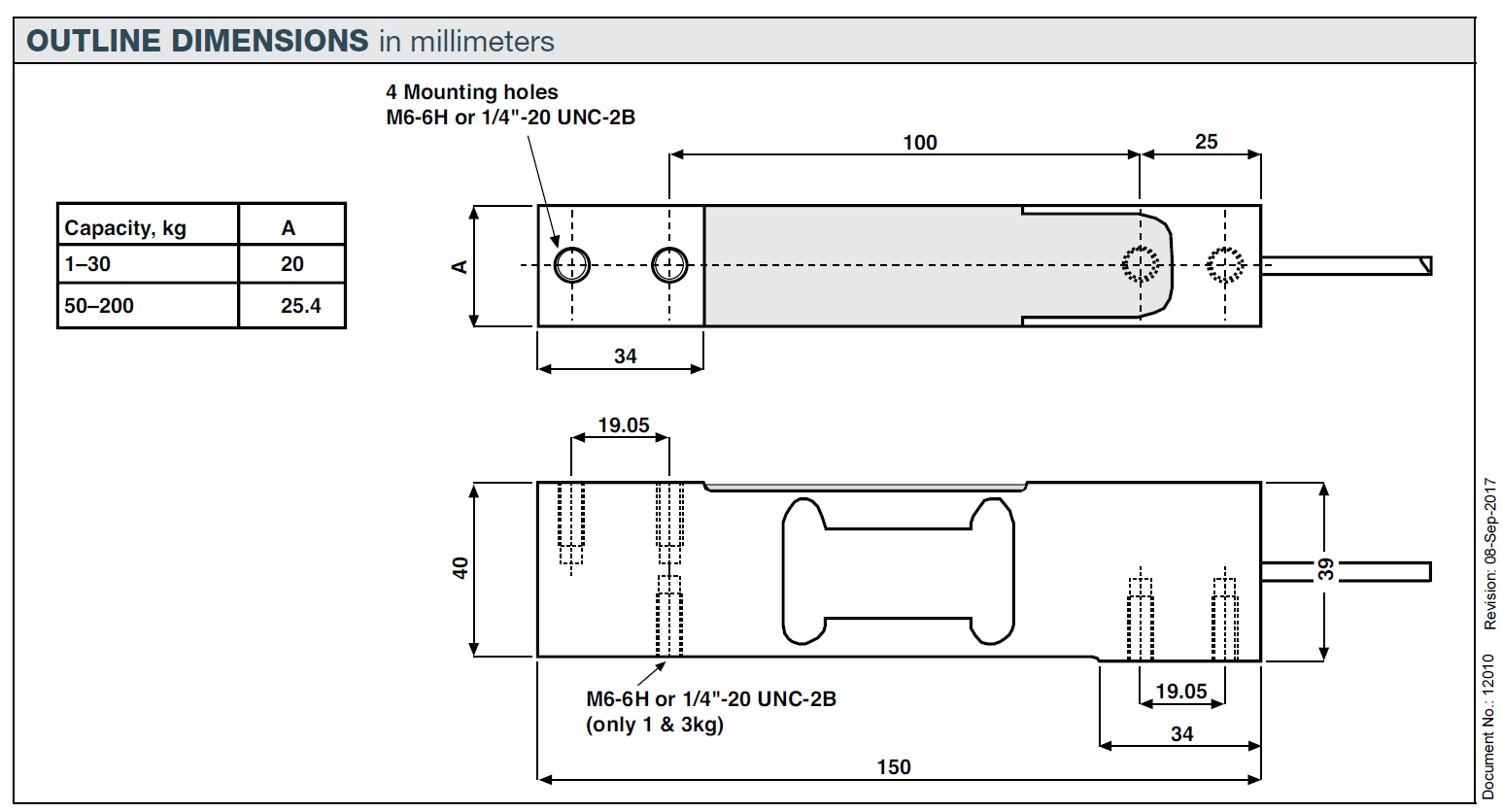

Platform size (max) 400 x 400 mm
Recommended torque Up to 30 kg: 7.0 35 kg and above: 10.0 N*m

(1) 1 kg and 200 kg not approved by OIML; 150 and 200 kg are not approved by NTEP.

(2) 50% utilization.

(3) 60% utilization.

(4) 6000 divisions from 20 kg to 100 kg.

(5) Options: 4-wire cable; different cable lengths; side cable entry. All speciications subject to change without notice.
