Tedea Huntleigh / Model 1142 Single-Point Stainless Steel Load Cell

Tedea Huntleigh / Model 1142 Single-Point Stainless Steel Load Cell

The stainless steel single point load cell model 1142 is designed for direct mounting with platform, bench and counting scales etc. The small physical size, combined with high accuracy and low cost, makes this load cell ideally suited for new or retro-fitted scales. OIML approved to C3 (20-100 kg) and NTEP approved to III/5000. A humidity-resistant protective coating assures stable operation in damp environments over the entire compensated range and conforms to IP66. For hazardous environments the 1142 load cell is available in EEx ia IIC T4 and ATEX 2G EEx ia IIC TA and FM level approved versions.

Category:
Tag:
Brand: ,

Description

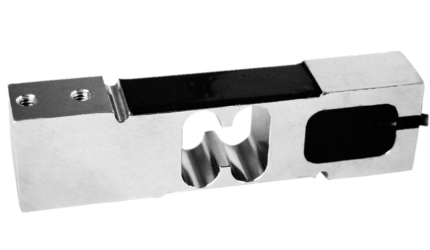

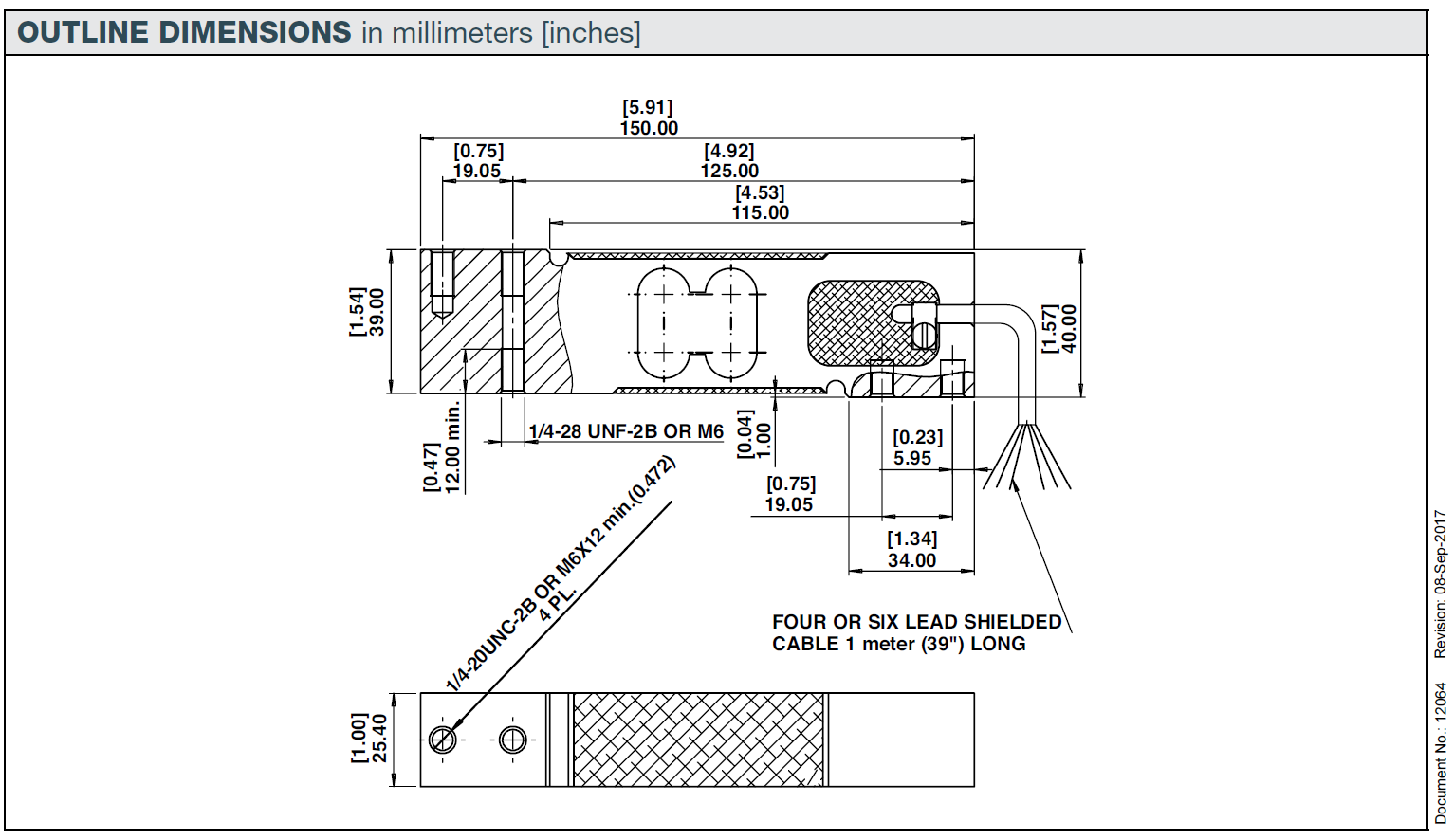

Model 1142 Single-Point Stainless Steel Load Cell

FEATURES
• Capacity range: 10–150 kg
• Stainless steel construction
• Single-point 400 × 400 mm platform
• Sealed to IP66
• Compact size: only 40 mm high
• OIML approved to C3 (20–100 kg) and
NTEP Class III/5000
• Choice of mounting threads: ¼-20 UNC or M6 × 12
• Optional
❍ ATEX, FM and IECEx approvals available
❍ Grounded version includes shield wire in
load cell cable

APPLICATIONS
• Platform scales
• Bench scales
• Counting scales
• Grocery scales

SPECIFICATIONS
PARAMETER VALUE UNIT
Rated capacity—R.C. (Emax) 10, 15, 20, 30, 50, 75, 100, 150**, 200** kg
OIML accuracy class Non-Approved C3*
NTEP accuracy class     III/5000
Maximum no. of intervals (n) 1000 3000 5000 single
Y = Emax/Vmin 4000 15000 10000 Maximum available
Rated output—R.O. 2.0 mV/V
Rated output tolerance 0.2 ±mV/V
Zero balance 0.2 ±mV/V
Zero return, 30 min. 0.0500 0.0167 0.0100 ±% of applied load
Total error 0.0300 0.0200 0.0200 ±% of rated output
Temperature effect on zero 0.0070 0.0023 0.0014 ±% of rated output/°C
Temperature effect on output 0.0030 0.0010 0.0010 ±% of applied load/°C
Eccentric loading error 0.0074 0.0049 0.0042 ±% of rated load/cm
Temperature range, compensated –10 to +40 °C
Temperature range, safe –30 to +70 °C
Maximum safe central overload 150 % of R.C.
Ultimate central overload 300 % of R.C.
Excitation, recommended 10 VDC or VAC RMS
Excitation, maximum 15 VDC or VAC RMS
Input impedance 415±15 Ω
Output impedance 350±3 Ω
Insulation resistance >2000 MΩ
Cable length 1 m
Cable type 6-wire, PVC, single loating screen Standard
Construction Stainless steel
Environmental protection IP66
Platform size (max.) 400 × 400 mm
Recommended torque Up to 30 kg: 7.0 50 kg and up: 10.0 N*m

* 50% utilization
** 10, 15, 150, and 200 kg are not OIML approved
All speciications are subject to change without notice.
