Description

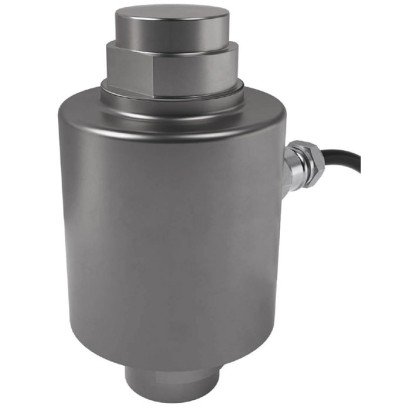

Model F1270 High-capacity load cell up to 300 t
The model F1270 high-capacity load cell is available with rated loads of 7.5 t to 300 t and has been specially developed for application in container and silo weighing technology.
It is also suitable for use in harsh industrial applications and in the construction of testing and production plants, where robustness and long-term stability are required.
With its special geometry this high-capacity load cell is excellently suited for installation in truck scales. Here it automatically aligns itself in such a way that there is no need for complex and precise positioning of the vehicle on the weighing platform.
The use of stainless steel, the welded cover of the strain gauge measuring elements and a glass feed-through for the cable connection allow trouble-free use even under unfavourable ambient conditions.
Due to the integrated radii of the load supports, the installation can be carried out with simple force introduction elements.
Options
- Integrated surge arresters (4 x)
- Accessory mounting kits
Specifications per VDI/VDE/DKD 2638
| Model F1270 | ||
| Rated load Fnom | 7.5 ,15 , 22.5, 30, 40, 50 t | 100, 150, 300 t |
| Relative linearity error dlin | ±0.0166 % Fnom | ±0.04 % Fnom |
| Relative repeatability error in unchanged mounting position brg | ±0.0166 % Fnom | ±0.04 % Fnom |
| Relative deviation of zero signal dS, 0 | ±5 % Fnom | |
| Relative creep, 30 min. | ±0.0166 % Fnom | ±0.06 % Fnom |
| Temperature effect on zero signal TK0 | ≤ ±0.0093 %/10 K | ≤ ±0.04 %/10 K |
| Temperature effect on characteristic value TKC | ≤ ±0.01 %/10 K | ≤ ±0.02 %/10 K |
| Force limit FL | 200 % Fnom | |
| Breaking force FB | > 300 % Fnom | |
| Material of the measuring body | Stainless steel | |
| Rated temperature range BT, nom | -10 … +40 °C | |
| Operating temperature range BT, G | -40 … +80 °C | |
| Output signal (rated characteristic value) Cnom | 2.00 ±0.1 % mV/V | |
| Input resistance Re | 1,150 ±50 Ω | |
| Output resistance Ra | 1,000 ±2 Ω | |
| Insulation resistance Ris | > 5 GΩ | |
| Electrical connection | 4-pin, shielded cable (cable sheath made of polyurethane) ■ 7.5 to 22.5 t: AWG 24 (cable length 12 m, Ø 5 mm) ■ 30 and 40 t: AWG 24 or AWG 20 (cable length 18 m, Ø 7.8 mm) ■ from 50 t: AWG 20 (18 m) |
|
| Voltage supply | ||
| without amplifier | DC 5 … 15 V for mV/V output | |
| with integrated amplifier | DC 12 … 28 V for output 0(4) … 20 mA, DC 0 … 10 V | |
| with cable amplifier | ||
| Ingress protection (per IEC/EN 60529) | IP68 (down to 2 m water depth) / IP69K | |
| Encapsulation | Completely hermetically sealed Cable connection by means of a glass feed-through | |
| Rated load – weight in kg | ||
| 7.5 t | 1.3 kg | |
| 15 t | 1.4 kg | |
| 22.5 t | 1.5 kg | |
| 30 t | 3.4 kg | |
| 40 t | 3.6 kg | |
| 50 t | 4.5 kg | |
| 100 t | 12.9 kg | |
| 150 t | 17.1 kg | |
| 300 t | 32.8 kg | |
Dimensions in mm
| Rated load in kN | Dimensions in mm | ||||||||||||
| H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | D1 | D2 | Smax* | RF** | Snom*** | |
| 7.5 | 89 | 44 | 17 | 23 | 11 | 6 | 28 | 75 | 28 | 69 | 4.5 | 11 kN | 0.5 |
| 15 | 89 | 44 | 17 | 23 | 11 | 6 | 28 | 75 | 28 | 69 | 4.5 | 20 kN | 0.6 |
| 22.5 | 89 | 44 | 17 | 23 | 11 | 6 | 28 | 75 | 28 | 69 | 4.5 | 30 kN | 0.6 |
| 30 | 140 | 70 | 26 | 28 | 13 | 6.5 | 39 | 84 | 39 | 81 | 10.5 | 34 kN | 0.29 |
| 40 | 150 | 75 | 31 | 33 | 13 | 11.7 | 39 | 84 | 39 | 81 | 10 | 37 kN | 0.8 |
| 50 | 178 | 89 | 32 | 34 | 17 | 8.5 | 44 | 94 | 44 | 99 | 9 | 51 kN | 1 |
| 100 | 178 | 89 | 38.5 | 38.5 | 17 | 12 | 62 | 94 | 62 | 141.3 | 11.5 | 152 kN | 0.3 |
| 150 | 210 | 105 | 42.7 | 42.7 | 20.6 | 12.8 | 76.2 | 121.5 | 76.2 | 165 | 14.5 | 240 kN | 0.35 |
| 300 | 280 | 140 | 55.9 | 55.9 | 25 | 21.5 | 100 | 121.5 | 100 | 165 | 15 | 468 kN | 0.5 |

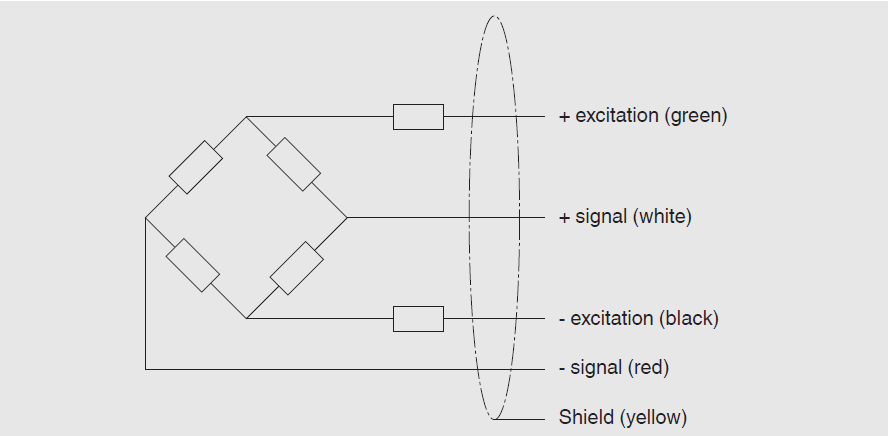

Pin assignment
| Electrical connection | |
| Excitation voltage (+) | Green |
| Excitation voltage (-) | Black |
| Signal (+) | White |
| Signal (-) | Red |
| Shield | Yellow |
