Description

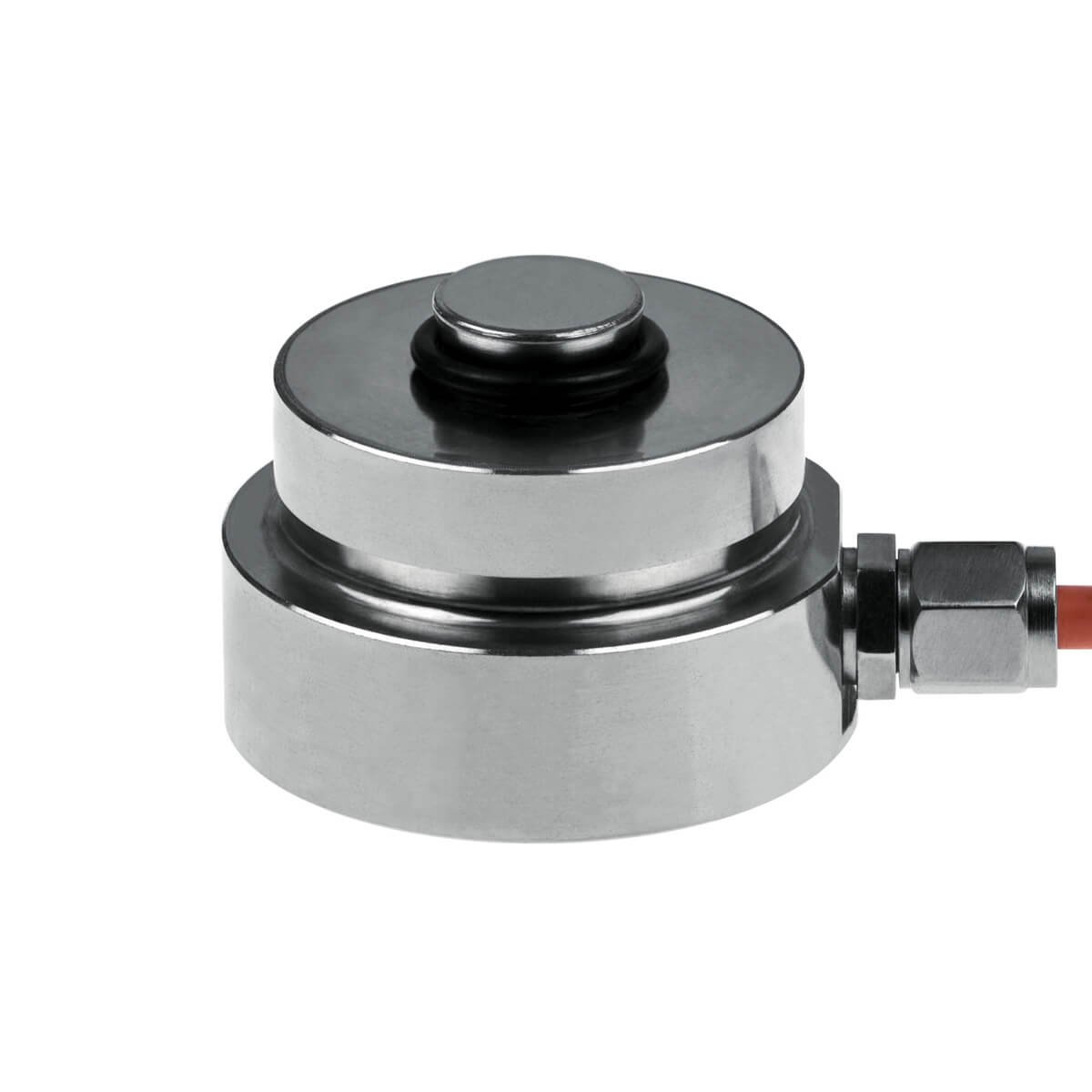

Ring-torsion load cell V51S

The V51S pressure cells have a compact, low profile design and are used to measure pressure forces used in industrial applications. The load cells are symmetrical and very compact so that also accurate measurements in harsh industrial environments are possible. The forces are always introduces centrally into the load cells.
The pressure cell is made ​​of high quality alloy tool steel, laser welded and meets the requirements of protection class IP65

Area of application

Machine scales, cargo scales, smaller silo and hopper scales, coil scales, heavy duty scales, as well as force measurements in the process industry.

Features

• Material: Alloy steel
• Capacity: 1.000 – 4.700 kg
• Protection class: IP65
• Construction: The measuring element is laser-welded
• Load Introduction: Spherical load application button / Edition with threaded holes
• Robust design for heavy-duty use in industrial applications

Mounting

The load cells V50S be used due to the small dimensions mainly in inaccessible places, or where there is little space available on the basis of design specifications.

Drawing

All specifications in mm  | Subject to technical changes

Versions
