Description

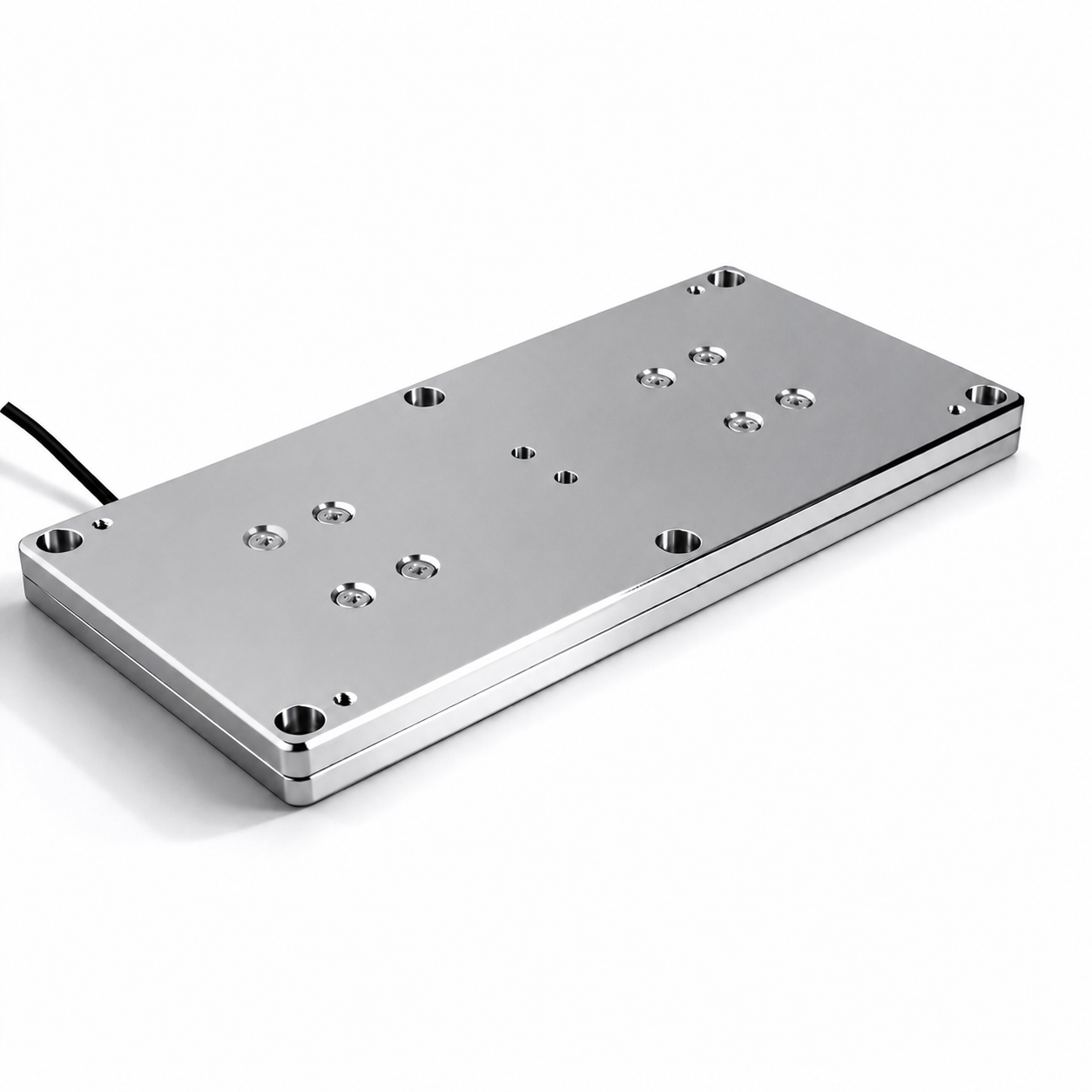

CPL-212A Flat-Plate Force Sensor
Specifications
| 항목 | 사양 |
|---|---|
| Capacity | 0 ~ 100kg, 200kg |
| Material | Stainless Steel (스테인리스 스틸) |
| Rated Output | 1.0 (2.0) ± 10% mV/V |
| Zero Balance | ± 2% F.S. |
| Non-linearity | ± 0.1% F.S. |
| Hysteresis | ± 0.1% F.S. |
| Repeatability | ± 0.1% F.S. |
| Creep (30min) | ± 0.05% F.S. |
| Temp. Effect on Output | ± 0.05% F.S. / 10℃ |
| Temp. Effect on Zero | ± 0.05% F.S. / 10℃ |
| Input Impedance | 385 ± 10Ω |
| Output Impedance | 350 ± 5Ω |
| Insulation | >5000MΩ / 100VDC |
| Recommended Excitation | 5 ~ 10V |
| Operating Temp. Range | -20 ~ 80℃ |
| Compensated Temp. Range | -10 ~ 60℃ |
| Safe Overload | 150% |
| Maximum Overload | 200% |
| Cable Specifications | Ø3 × 3m |
| Protection Class | IP65 |
| TEDS Available | 지원 가능 (Available) |

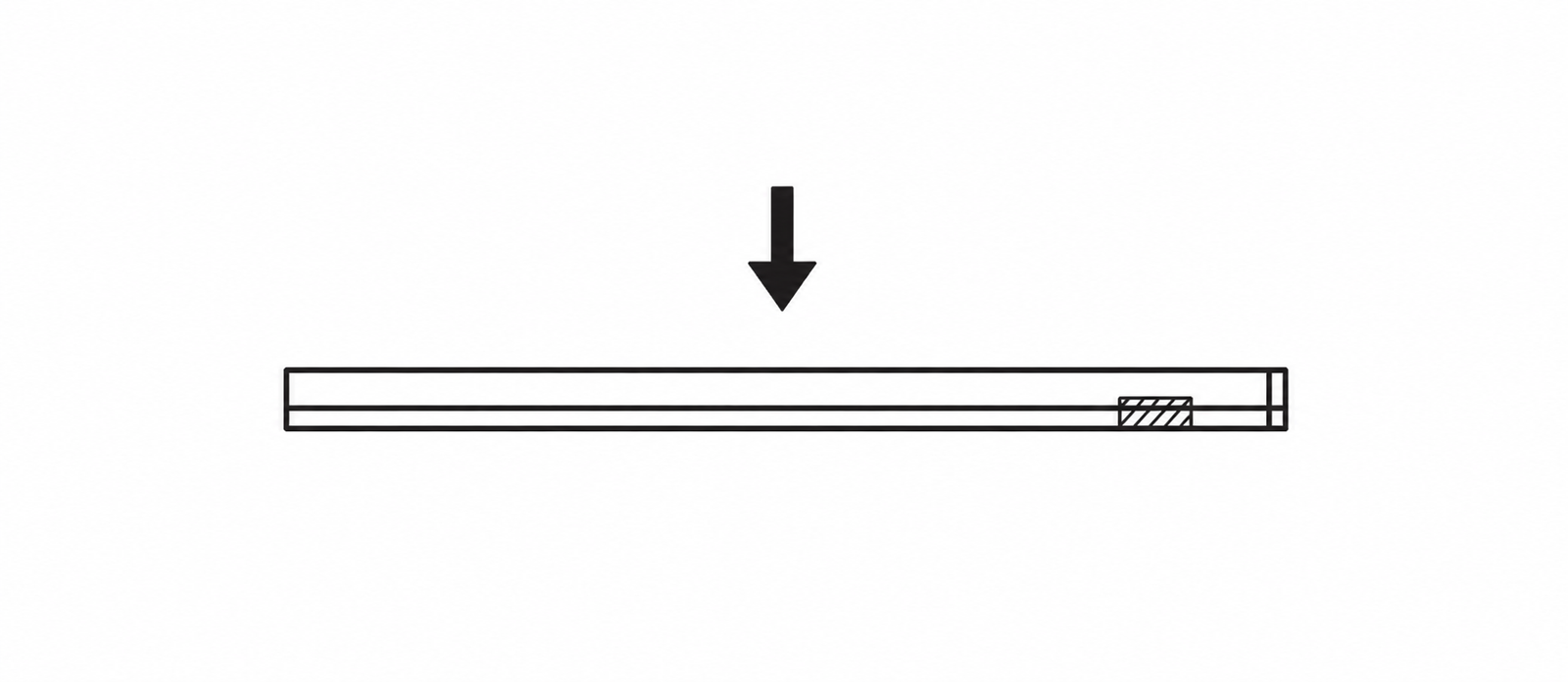

Load Direction

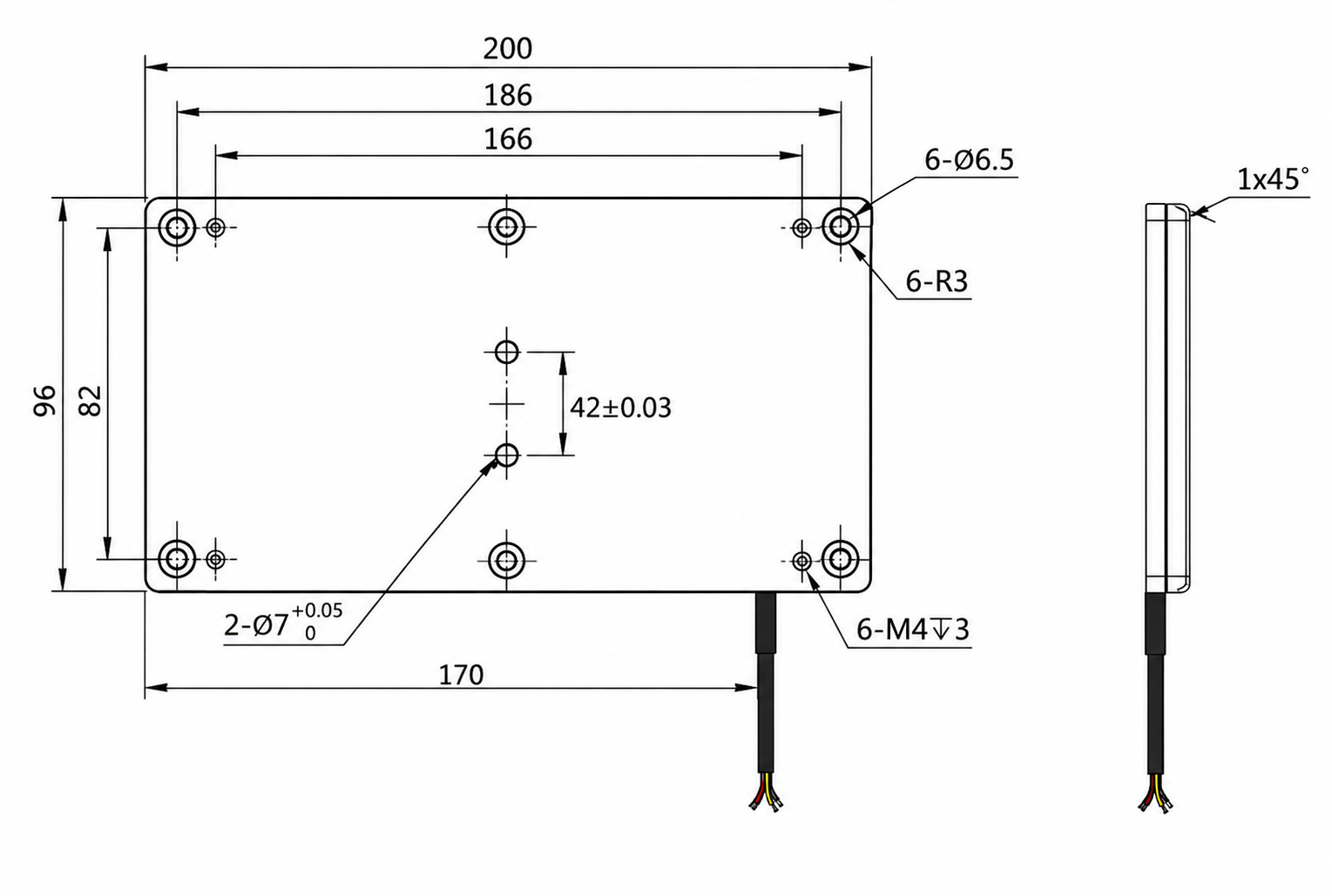

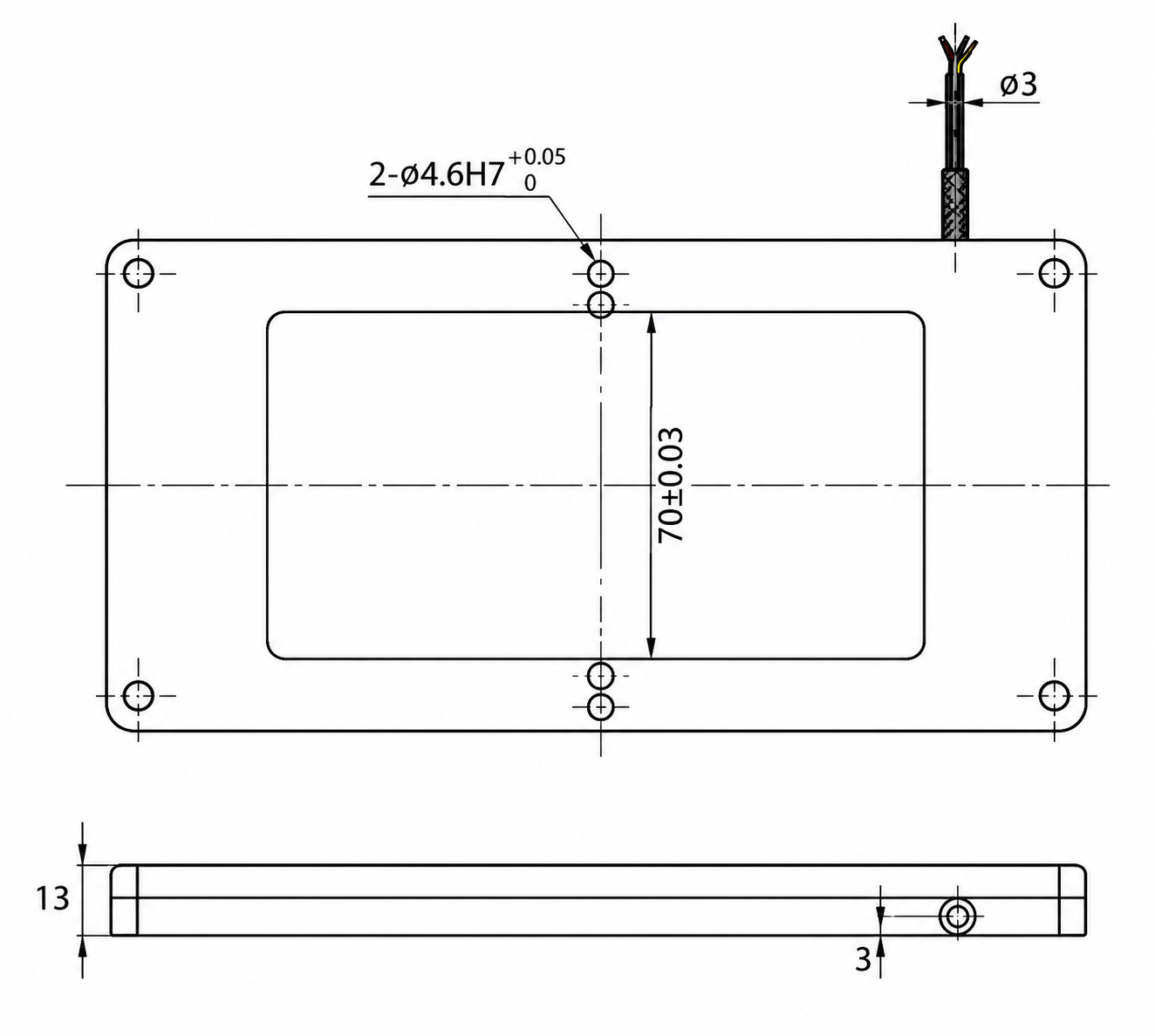

Product dimensions and installation diagram:

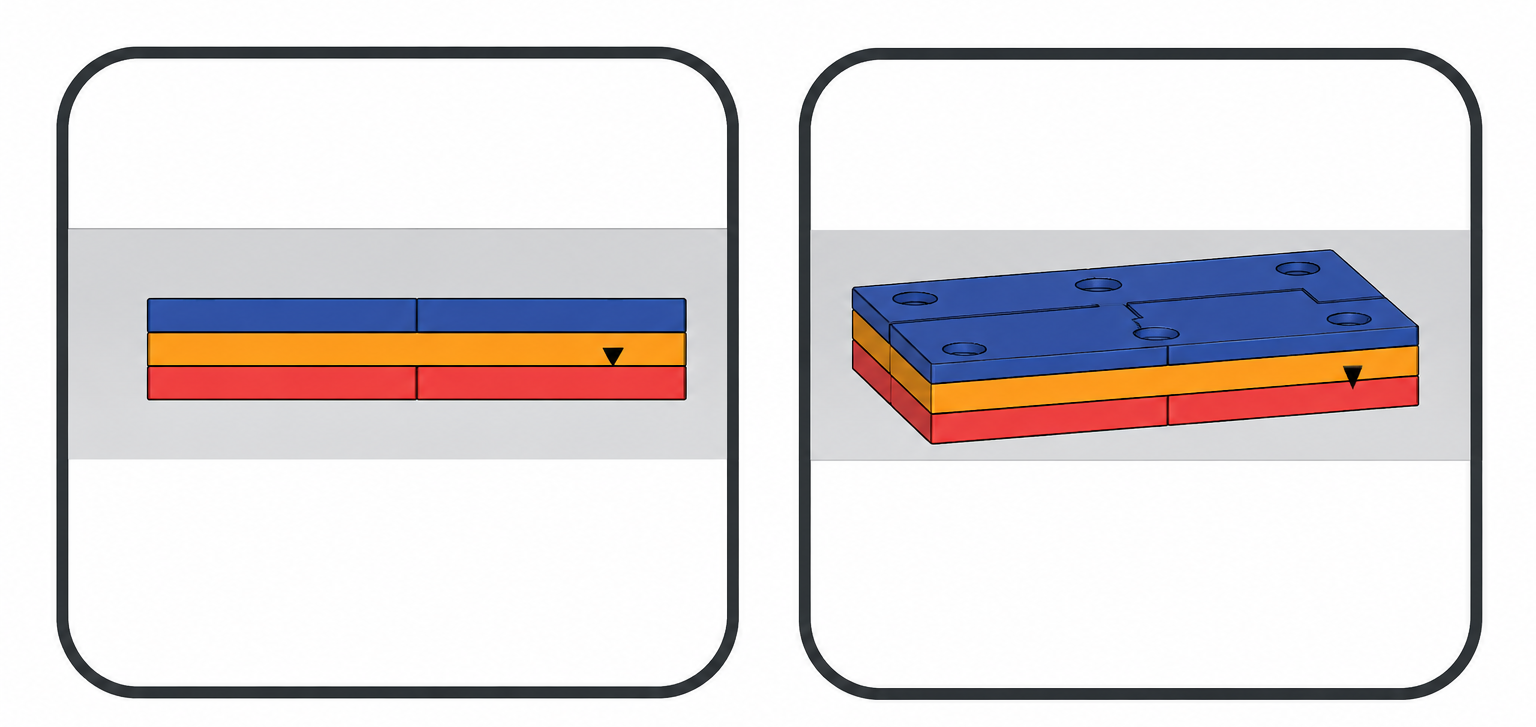

Installation Mode

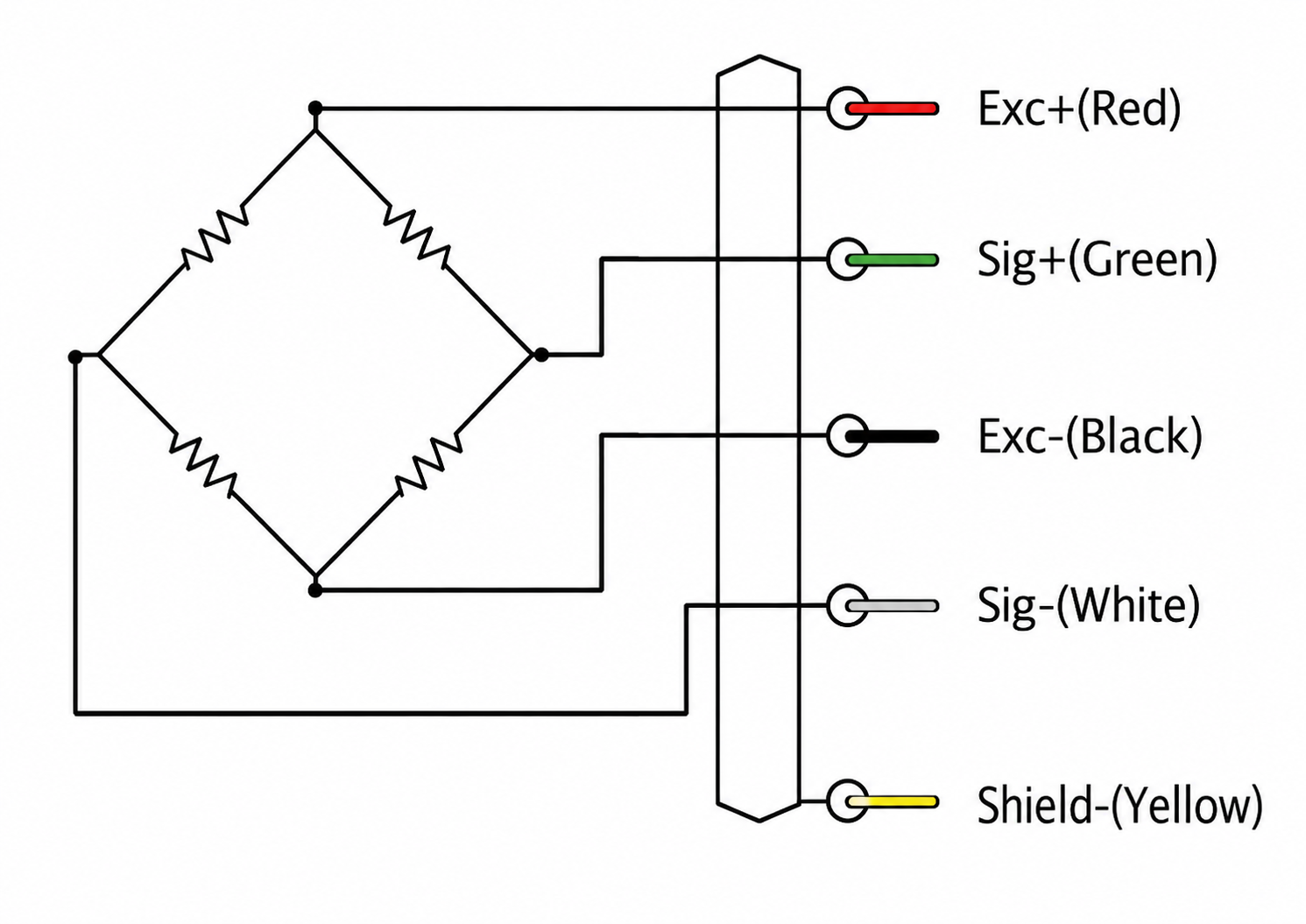

Wiring Diagram
