Description

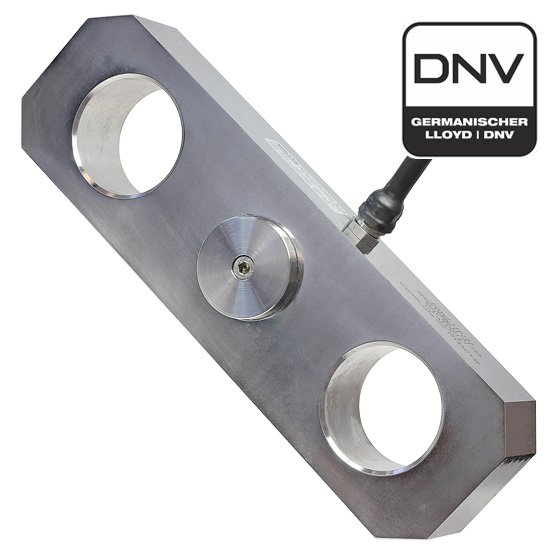

ZGWZ Tension load cell

technical features

• Measuring range: 5 t, 15 t or 30 t
• Reset: automatic
• Protection: overvoltage protection; laser-sealed
• Insulation resistance: 5000 MΩ (50 VDC)
• Operating temperature: – 20 °C …+ 65 °C
• Temp. drift zero point: 0.03 % of range / 10 °C
• Temp. drift range: 0.03 % of range / 10 °C
• Protection class: IP67
• Output: 1.5 mV / V ± 0.01
• Safe overload: 150 % of range
• Breaking load: 200 % of range
•
