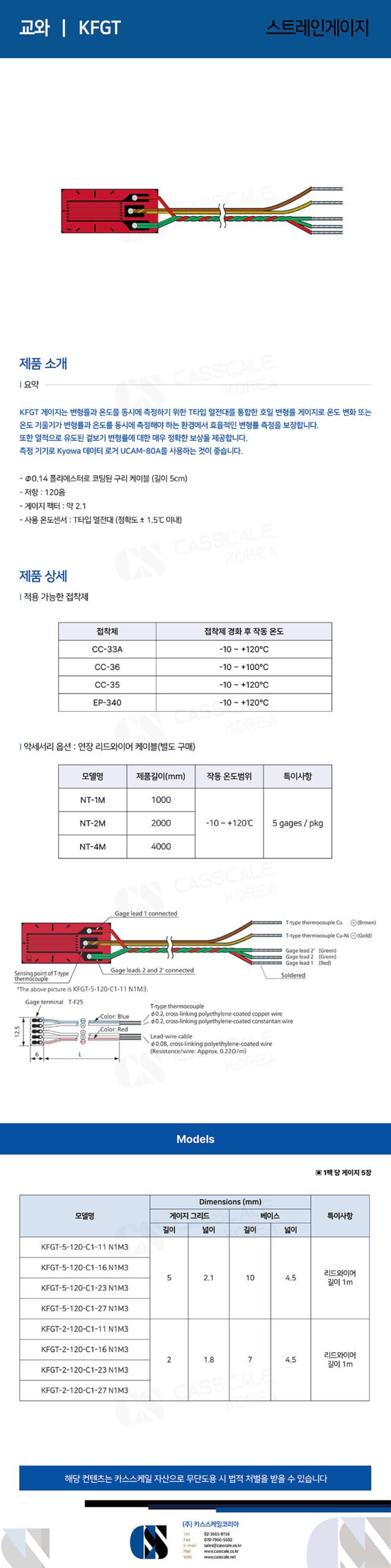

The KFGT Gauge is a foil strain gauge integrated with a T-type thermocouple for simultaneous measurement of strain and temperature. It ensures efficient strain measurement in environments where temperature changes or gradients must be measured together with strain, and provides highly accurate compensation for thermally induced apparent strain.

It is recommended to use the Kyowa data logger UCAM-80A for measurements.

• Copper cable coated with Φ0.14 polyester (length: 5 cm)

• Resistance: 120 Ω

• Gauge factor: approximately 2.1

• Temperature sensor: T-type thermocouple (accuracy within ±1.5℃)

Models:

• KFGT-5-120-C1-11 N1M3 / KFGT-5-120-C1-16 N1M3 / KFGT-5-120-C1-23 N1M3 / KFGT-5-120-C1-27 N1M3

• KFGT-2-120-C1-11 N1M3 / KFGT-2-120-C1-16 N1M3 / KFGT-2-120-C1-23 N1M3 / KFGT-2-120-C1-27 N1M3
