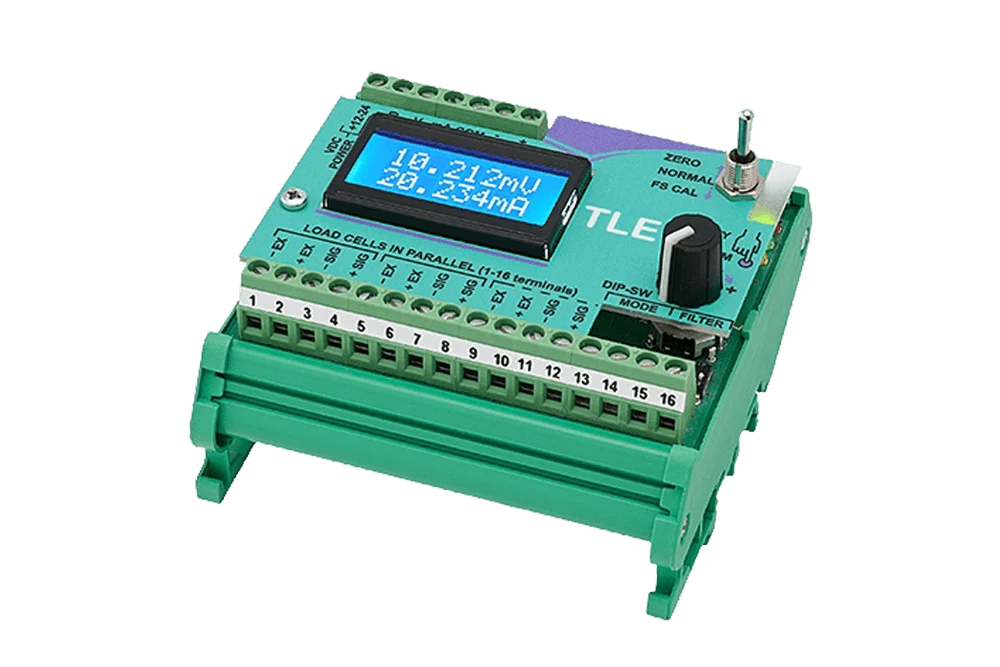

OCTOGON Analog weight transmitter L-TLE

OCTOGON Analog weight transmitter L-TLE

Analog weight transmitter L-TLE (RS485) for installation on the rear wall of the control panel on Omega/DIN rail or in the box (on request) and with backlit LCD display, 38×16 mm, 2 lines of 8 digits (5 mm digit height). Suitable for applications requiring a fast response time of the analog output (update time 0.003…4 sec. / 10…30 Hz). Dimensions: 90x95x60 mm. 3-position selector, DIP switch and rotary knob.

Category:
Tag:
Brand:

Description

Analog weight transmitter L-TLE

✅Serial interface RS485 for communication via ModBus RTU protocols

✅Easy adjustment of zero point and full scale without multimeter, but by digital rotary control (encoder)

✅4 load cell inputs

✅ 16 bit fast analog output in current or voltage: 0…20 mA, 4…20 mA; 0…10 V, 0…5 V; ±10 V, ±5 V; response time: 3 ms)

✅Connections to: PLC via analog output, PC/PLC via RS485 (up to 99 instruments with amplifiers, up to 32 without amplifiers), up to 8 load cells in parallel with junction box

✅Simultaneous display of the load cell response signal expressed in mV and the value of the analog output
