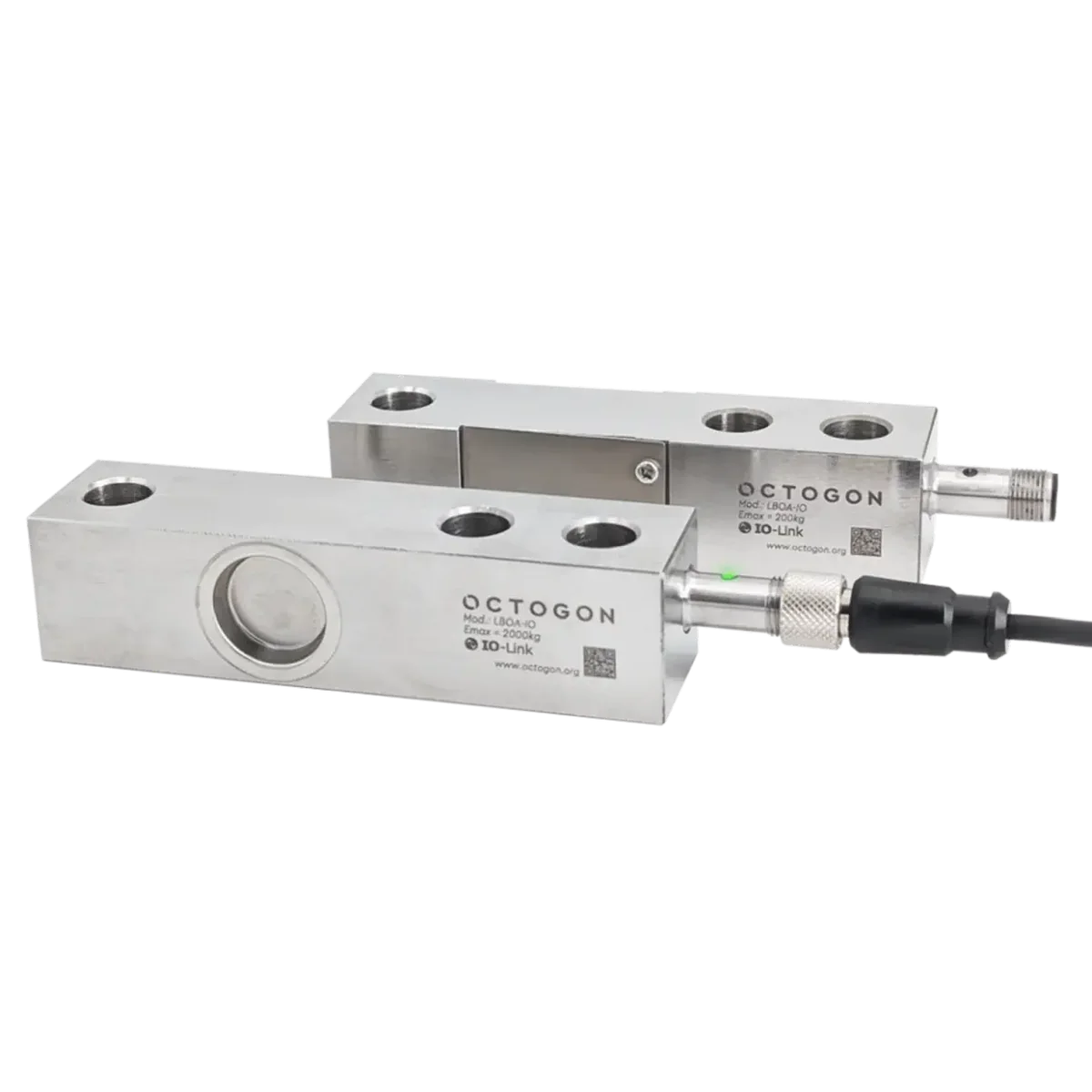

The LBOA-IO is a precise shear and bending beam load cell with an integrated IO-Link interface for industrial weighing and force measurement applications. It is suitable for tensile and compressive forces and is available in measuring ranges from 50 kg to 10,000 kg or optionally from 500 N to 100 kN.

In addition to digital measured value transmission via IO-Link, an analog 4-20 mA signal is available in SIO mode. Configurable switching points enable direct monitoring of limit values.

With a total error of maximum ±0.02 % FS, a robust stainless steel housing made of 17-4PH / 1.4542 and protection class IP67, the load cell is suitable for demanding industrial environments. ISO 17025 calibration is optionally available.
