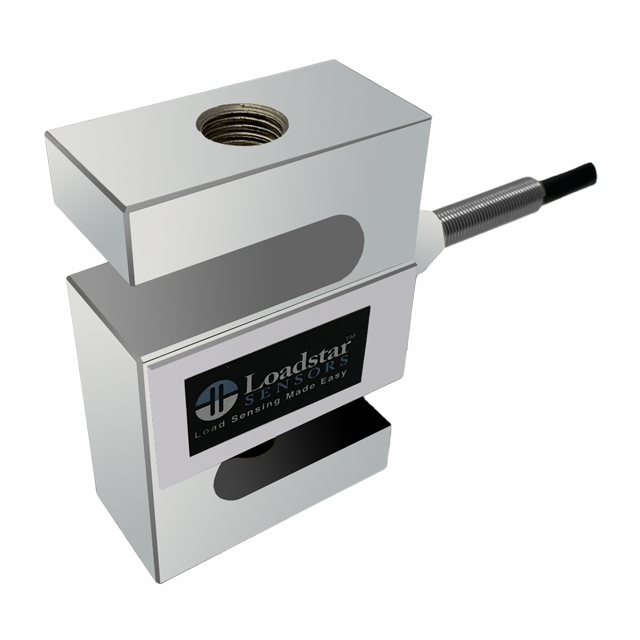

Loadstar Sensors RAS1 S-Beam Load Cell

Loadstar Sensors RAS1 S-Beam Load Cell

S-Beam load cells (or S beam Load cells, so named for their distinctive S shape,) can be used for tension and/or compression force measurement. They are most often found in applications such as cable strength testing, harness testing, material characterization and to test rip strength of cords, ropes and wires. The RAS1 is made from tool steel and is available in capacities from as little as 25 lb. up to 25,000 lb. This load cell has very good accuracy, stability and easy mounting features with two threaded holes on each end where threaded rod-ends or eye bolts can be easily attached. If you are looking for smaller lower capacity load cells, please take a look at our RES2 S-Beam Jr. load cells.
Categories: ,
Tag:
Brand:

Description

RAS1 S-Beam Load Cell

Highlights



  • Capacities
    S-Beam load cells are available in 25 lb, 50 lb, 100 lb, 250 lb, 500 lb, 1K lb, 2.5K lb, 5K lb, 10K lb, 20K lb and 40K lb capacities

  • Calibration Mode
    Usable for Compression measurements or Tension measurements or Both (Universal)

  • Accuracy Class & Compensated Temperature Range
    +/- 0.02% to +/- 0.05% from -10C to 40C

    Mounting
    Threaded Mounting Holes on Each End of Load Cell. No need for additional adapters for most applications.

  • Construction and Use
    Rugged uni-body construction. Ideal for inline force measurement applications.

  • UART/USB Output
    Use UART to connect with Arduino or other microprocessors. Or use USB to connect with PCs.

    Wireless Output
    Wireless output via XBee (802.15.4) Industrial Strength wireless or WiFi or BLE. For easy wireless connectivity with PCs, Tablets and SmartPhones

    Analog Output
    Analog output via 0-5V DC or 4-20 mA output for easy input to Data Acquisition Systems or Programmable Logic Controllers

    Optional Waterproof or NTEP Certifications
    We offer versions of the S-Beam with waterproof (IP 68) ratings or NTEP certifications for your commercial “for trade” needs.

    Customize
    Call us for larger capacities or other unique needs. We can custom build them for you as needed.
