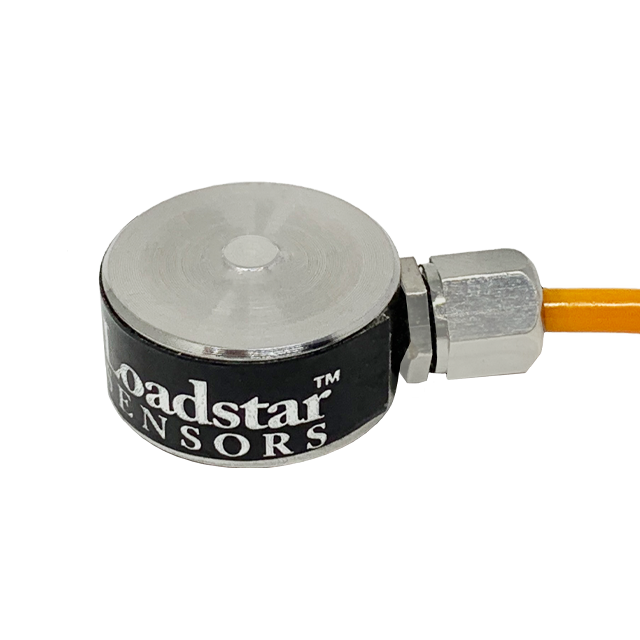

Loadstar Sensors REB5 Button Load Cell

Loadstar Sensors REB5 Button Load Cell

The REB5 is a much more economical sub-miniature resistive load cell than the tiny RSB5 load cells with decent accuracy and stability for use in compression force measurement applications with very little room for a sensor. They are available in a diameter less than 13 mm and height as low as as 7 mm. The base output from these load cells is about 1 mV/V to 2 mV/V. So if you supply 10V DC power to the load cell, you get about 10 to 20 millivolt of change for full scale. You can get USB output with our DI-100U or DI-1000U load cell interface, Wireless Output with our DI-1000ZP/DI-1000WiFi/DI-1000BLE load cell interfaces or analog 0-5 V DC output with our AI-1000 strain gauge signal conditioner.
Category:
Tag:
Brand:

Description

REB5 Button Load Cell

Highlights



  • Capacities
    REB5 Button load cells are available in 2 kg, 5 kg, 10 kg and 100 kg capacities. See RSB5 for smaller size and RSB2 & RSB1 for higher capacities.

  • Calibration Mode
    Button load cells can be used only for Compression measurements. If you need to measure tensile forces then use RSB3, RAS1, RAL1 load cells.

  • Accuracy Class & Compensated Temperature Range
    +/- 1% of full scale from -10C to 40C

  • Construction and Use
    Built-in raised surface with curvature for applying compressive loads. Rugged strain relief provided on cable egress for improved reliability.

  • UART/USB Output
    Use DI-100U with UART output to connect with Arduino or other microprocessors. Or use DI-100U/DI-1000U/DI-400U USB load cell interfaces to connect with PCs via USB.

    Wireless Output
    Wireless output via XBee (802.15.4) Industrial Strength wireless or WiFi or BLE for easy connectivity with PCs, Tablets and SmartPhones

    Analog Output
    Analog output via 0-5V DC or 4-20 mA output for easy input to DAQ or PLC

    Customize
    Call us for larger capacities or other unique needs. We can custom build them to order as needed.
