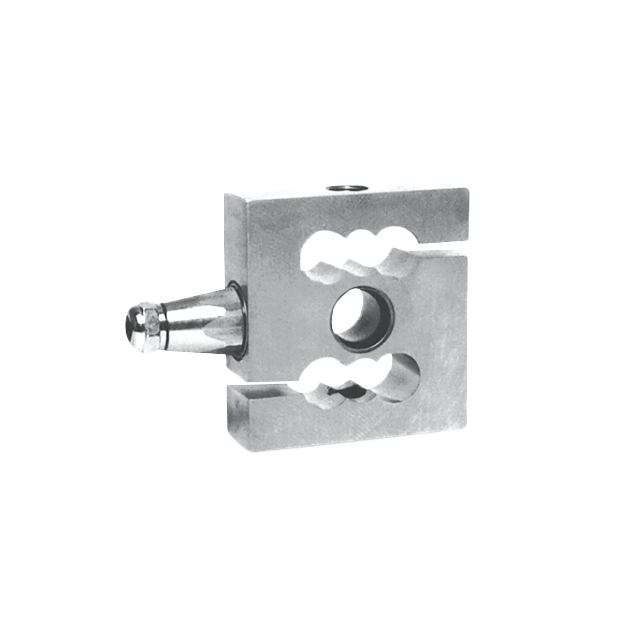

Loadstar Sensors RRS4 S-Beam Waterproof Load Cell (IP69)

Loadstar Sensors RRS4 S-Beam Waterproof Load Cell (IP69)

The RRS4 S-Beam load cell is one of two IP69 rated waterproof load cells that we offer. They can be used in wet areas that require wash down and can occasionally be exposed to or submerged in water up to a depth of 1.5 m for 30 minutes. The RRS4 load cell is available in 2,250 lb, 4,500 lb, and 11,250 lb. (1000 kg, 2000 kg and 5000 kg) capacities. If you are looking for smaller lower capacity load cells, please take a look at our RRS3 S-Beam load cells.

S-Beam load cells (or S beam Load cells, so named for their distinctive S shape) are one of the most versatile load cells available in the market and offer the best solution for applications that need both tension and compression force measurement. They are most often found in applications such as cable strength testing, harness testing and rip strength of cords, ropes and wires.
In addition to having very good accuracy, stability and easy mounting features especially for in-line tension testing applications where two threaded rod-ends or eye bolts can be easily attached to the threaded female holes on the two ends of the S-Beam load cell.
Categories: ,
Tag:
Brand:

Description

RRS4 S-Beam Waterproof Load Cell (IP69)

Highlights



  • Capacities
    RRS4 S-Beam load cells are available in 1000 kg (2250 lb), 2000 kg (4,500 lb), and 5000 kg (11,250 lb).

  • Calibration Mode
    Usable for Compression measurements or Tension measurements or Both (Universal)

  • Accuracy Class & Compensated Temperature Range
    +/- 0.03% to +/- 0.05% from -10C to 40C

    Mounting
    Threaded Mounting Holes on Each End of Load Cell. No need for additional adapters for most applications.

  • Construction and Use
    Rugged uni-body construction with welded hermetic seal near cable egress.

  • UART/USB Output
    Use UART to connect with Arduino or other microprocessors. Or use USB to connect with PCs.

    Wireless Output
    Wireless output via XBee (802.15.4) Industrial Strength wireless or WiFi or BLE. For wireless connectivity with PCs/Tablets or SmartPhones

    Analog Output
    Analog output via 0-5V DC or 4-20 mA output for easy input to Data Acquisition Systems or Programmable Logic Controllers

    Waterproof Certifications
    This load cell is rated to IP69 waterproof ratings but we do not have any NTEP rated waterproof load cells in this family.

    Customize
    Call us for larger capacities or other unique needs.

rrs4
