Loadstar Sensors RSB3 Button Load Cell

Loadstar Sensors RSB3 Button Load Cell

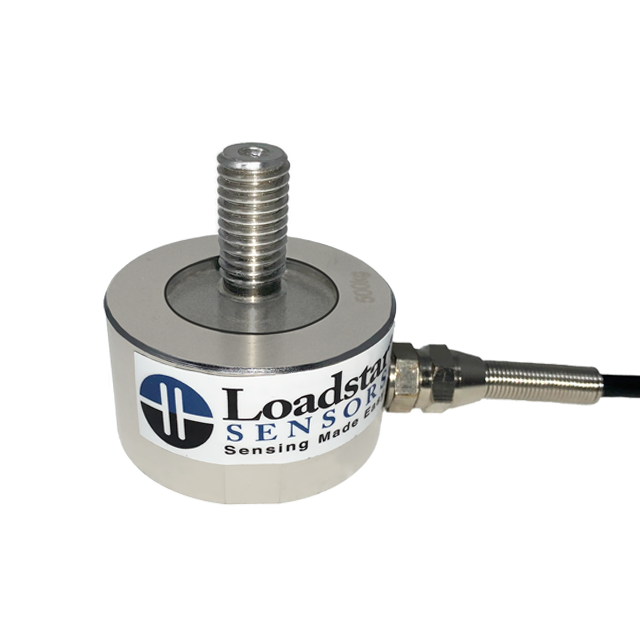

These button style load cells with a male threaded stud are only 2 inches in diameter but can be used to measure forces as high as 500 kg. or 1100 lb. They have excellent accuracies and convenient threaded mounting holes or studs on both sides of the load cell. The male threaded stud can be used to create a leg for a scale using a self-leveling female foot. Four such pairs can be used to build a very accurate large area floor scale or build a weigh-in motion check weigher for a conveyor belt. This load cell is available in 50, 100, 200 & 500 kg capacities.
Category:
Tag:
Brand:

Description

RSB3 Button Load Cell

Highlights



  • Capacities
    RSB3 Button load cells are available in 50 kg, 100 kg, 200 kg, and 500 kg capacities

  • Calibration Mode
    Button load cells can be used for Compression, Tension or Universal measurements

  • Accuracy Class & Compensated Temperature Range
    +/- 0.1% to +/ – 0.5% from -10C to 40C

    Mounting
    Tension adapter available that fits on base and provided in line threaded rods on both ends for tension or universal applications

  • Construction and Use
    Threaded stud on top and threaded holes on bottom for easy mounting. Rugged strain relief provided on cable for improved reliability

  • UART/USB Output
    Use UART to connect with Arduino or other microprocessors. Or use USB connect with PCs.

    Wireless Output
    Wireless output via XBee (802.15.4) Industrial Strength wireless or WiFi or BLE for easy connectivity with PCs, Tablets and SmartPhones

    Analog Output
    Analog interfaces for 0-5V DC/4-20 mA output for easy input to DAQ/PLC

    Optional Waterproof or NTEP Certifications
    The packaging is sealed for dust proof operations but it is not waterproof.

    Customize
    Call us for larger capacities or other unique needs. We can custom build them to order as needed.

rsb3
