Description

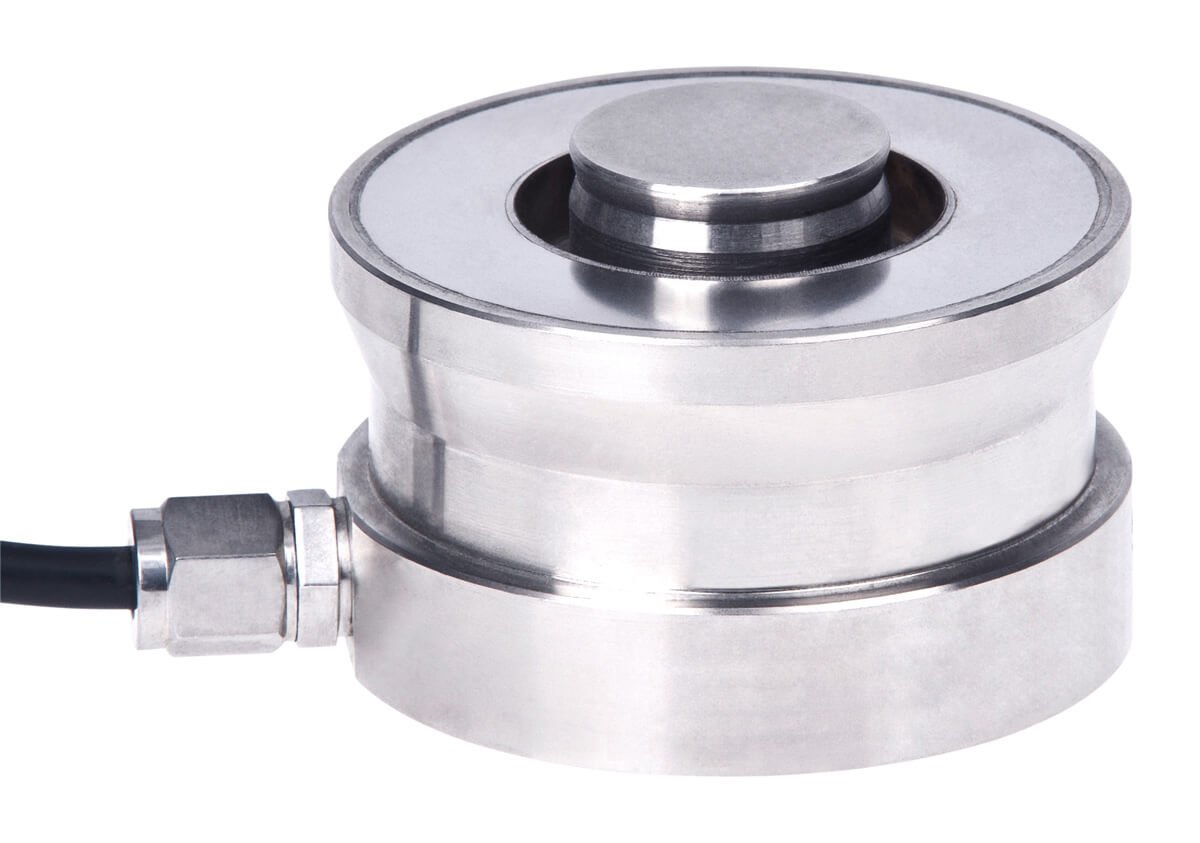

Ring-Torsion load cell V50S
The V50S pressure cells are used for the measurement of compressive forces in various industrial applications. The load cells are very symmetrical and compact, so it also allows the precise measurement in harsh industrial environments. The forces are always centered in the measured doses. The High load-load cell is manufactured from high alloy tool steel, laser welded and meets the requirements of protection class IP65.
Feature
- Material: Alloy Steel
- Rated load: 10 – 150 t
- Protection class: IP65 – laser welded
- Structure: the measuring element is laser-welded
- Particularly robust for heavy duty industrial use
- Low profile

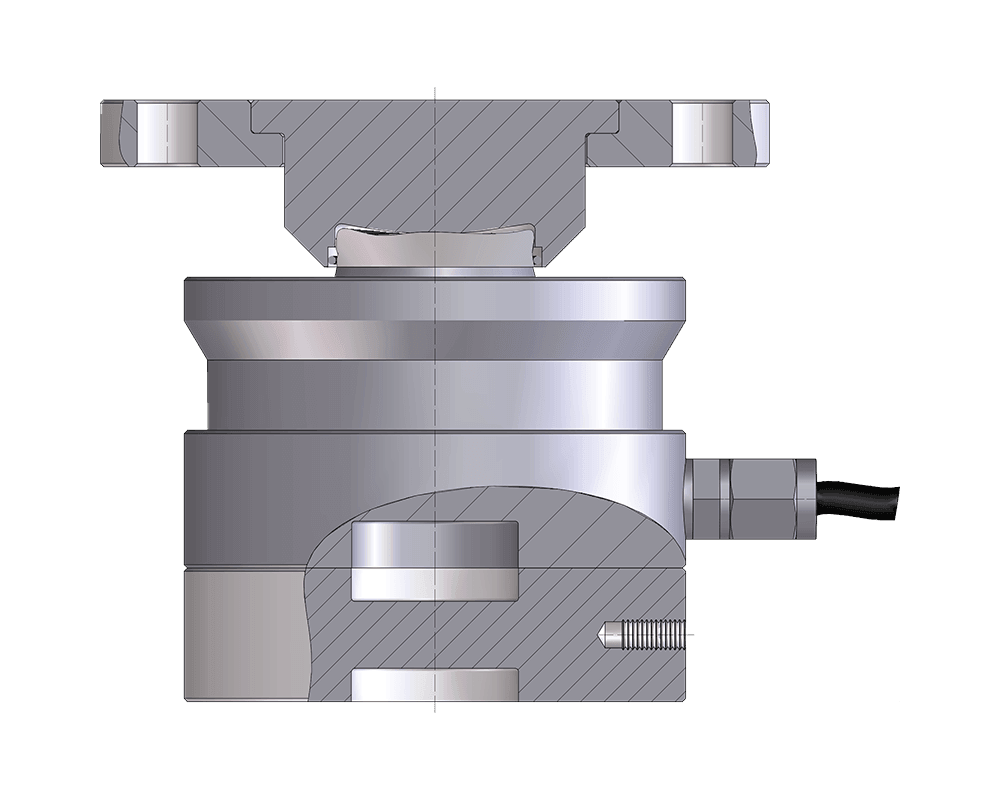

Mounting
The load cells, force transducers V50S are due to the small dimensions mainly used in hard to reach areas, or where on the basis of design specifications only little space is available.
Drawing
| Load | D | D1 | D2 | H | H1 | H2 |
|---|---|---|---|---|---|---|
| 10 – 22 t | 75 | 30 | 75 | 50 | 7 | 6,5 |
| 33 t | 95 | 40 | 95 | 65 | 7 | 10 |
| 47 t | 130 | 60 | 130 | 75 | 7 | 14 |
| 68 t | 130 | 60 | 130 | 85 | 7 | 14 |
| 100 t | 150 | 70 | 150 | 90 | 7 | 16 |
| 150 t | 150 | 70 | 150 | 100 | 7 | 16 |
All specifications in mm | Subject to technical changes
Versions
| Type | Nominal load, Emax | Accuracy class |
|---|---|---|
| Ring-Torsion-Load Cell V50S-010t |
10.000 kg | 0,03 |
| Ring-Torsion-Load Cell V50S-022t |
22.000 kg | 0,03 |
| Ring-Torsion-Load Cell V50S-033t |
33.000 kg | 0,03 |
| Ring-Torsion-Load Cell V50S-047t |
47.000 kg | 0,03 |
| Ring-Torsion-Load Cell V50S-068t |
68.000 kg | 0,03 |
| Ring-Torsion-Load Cell V50S-100t |
100.000 kg | 0,03 |
| Ring-Torsion-Load Cell V50S-150t |
150.000 kg | 0,03 |
