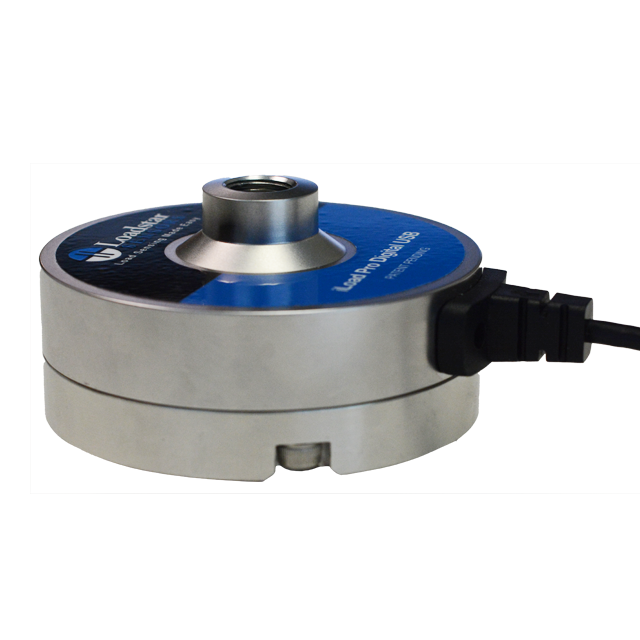

Loadstar Sensors iLoad Pro Capacitive Load Cell

Loadstar Sensors iLoad Pro Capacitive Load Cell

The iLoad Pro Digital USB load cell was the world’s first integrated USB Load Cell. Built on the patent protected capacitive load cell technology, this digital load cell does not need signal conditioners, data acquisition systems or external power supply. Just connect via USB and start measuring!

The iLoad Pro Series comes in a rugged, stainless steel body with cable strain relief for industrial grade applications and convenient threaded mounting holes for easy mounting to plates and platforms. You can attach eye bolts, leveling feet or rod-ends to incorporate these sensors into your application.
Loadstar’s iLoad Pro Digital USB series of load cells provides unprecedented integration of sensing and measurement electronics in a single low profile body, to make it easy to measure, log and plot forces and loads directly on your PC with our LoadVUE Pro, SensorVUE or ControlVUE software. The built in ASCII command set provides an easy to use API to build your own custom applications.

If you are looking for an integrated, software friendly Load Cell to measure loads and forces over short time periods in a temperature controlled indoor environment, you will not find a better or more convenient load cell than the iLoad Pro digital load cell!

Category:
Tag:
Brand:

Description

iLoad Pro Capacitive Load Cell

Highlights


  • Capacities
    iLoad Pro load cells are available in 50 lb, 100 lb, 250 lb, 500 lb, 1K lb, 2.5K lb, 5K lb (special order), and 10K lb(special order) capacities

  • Calibration Mode
    Usable for Compression measurements or Tension measurements or Both (Universal). Select appropriate calibration.

  • Accuracy Class & Compensated Temperature Range
    +/- 0.25% to +/- 1% of Full Scale from 10C to 40C non-condensing

  • Built in API
  • ASCII command set enables you to write your own software using Python, C, C++. C#, LabVIEW, Matlab and other languages


  • Mounting
    Threaded Mounting Holes on Each End of Load Cell. No need for additional adapters for most applications.

  • UART/USB Output
    Use UART to connect with Arduino or other microprocessors. Or use with S2U Serial to USB adapter to connect with PCs via USB.

    Optional Analog Output
    Analog 0-5V DC output via  pigtail or through the HX-100 Hybrid Adapter

    Unique Feature
    iLoad Pro offers direct measurement of loads via the USB port of a PC. No need of signal conditioner, DAQ, or special software.

  • Construction and Use
    Rugged, stainless steel construction. Compact low profile design. Mecahnically robust. Weather resistant (not waterproof) packaging.

  • Customize
    Call us for larger capacities or other unique needs. We can custom build them for you as needed.
