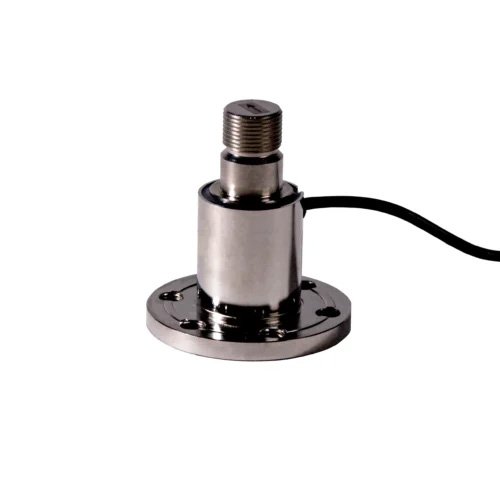

Models
563FSAS-2.5Klb, 563FSAS-1.134kg
Features
- Material: Stainless Steel
- Rated Capacity: 2.5klb
- Full Scale Output: 0.4mV/V ± 0.25%
- Safe Overload: 200% of full scale
- Breaking Overload: 500% of full scale
- IP Rating: IP66
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request

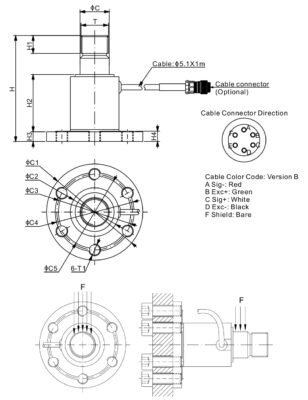

Dimensions
| Capacity | C | C1 | C2 | C3 | C4 | C5 | H | H1 | H2 | H3 | H4 | T | T1 |
| 2.5Klb/inches | 1.06 | 3.50 | 1.77 | 2.76 | 2.87 | 2.87 | 3.86 | 0.65 | 2.09 | 0.35 | 0.37 | 1-14 UNS-2A | 7/16-14 UNC-2B |
| 1.134kg/mm | 27.0 | 89.0 | 45.0 | 70.0 | 73.0 | 73.0 | 98.0 | 16.5 | 53.0 | 9.0 | 9.5 | 1-14 UNS-2A | 7/16-14 UNC-2B |

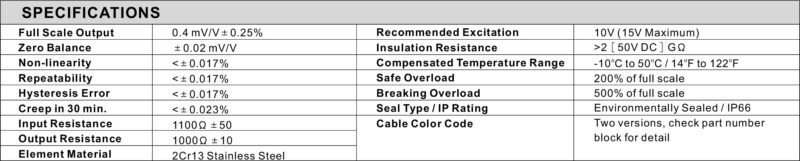

Specifications
