• 측정 범위: 100 to 3000 kN

• Accuracy (정밀도): 0.5%

• Power Supply: 10Vdc ~ 15Vdc

• 2mV/V Output

• 보호등급:  IP65

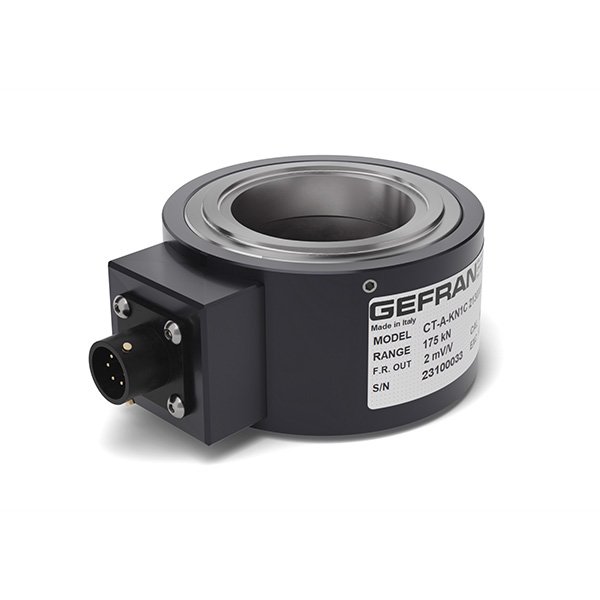

The CT series force transducers, have been specially designed for use in polymer processing in applications where it is
required to measure the reaction force produced by the extrusion pressure on the gearbox along the axis of the screw.
They measure a force whose value is indicative of the extrusion pressure over the area of the screw.
The CT series force transducers can also be used in all other
applications where it is required to measure the forces on
shafts or columns and in any application where the geometry
demands a toroidal form load cell.

CTA-KN1C / CTA-KN2C / CTA-KN3C / CTB-KN2C / CTB-KN3C / CTB-KN5C / CTB-KN7.5
CTC-KN5C / CTC-KN7.5C / CTC-KN1M / CTC-KN1.5M / CTD-KN1.5M / CTD-KN2M / CTD-KN2.5M / CTD-KN3M
