• 측정 범위: -10-15kg

• Accuracy (정밀도): C (OIML R60)

• Power Supply: 10Vdc ~ 15Vdc

• 2mV/V Output

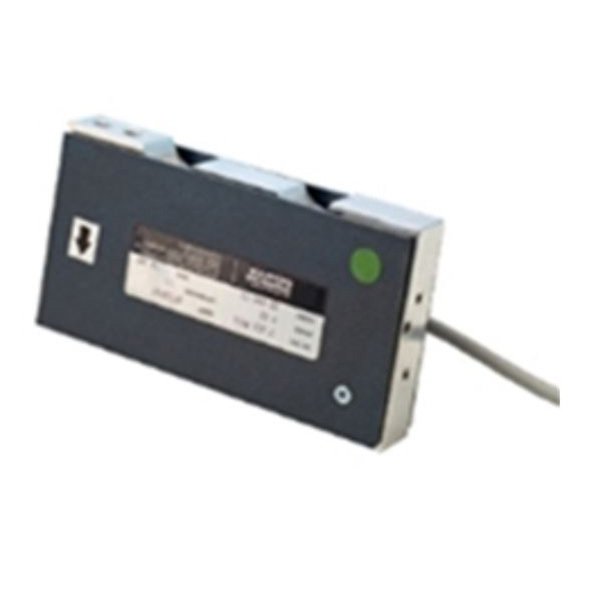

The OD series load cells have been designed for all
applications requiring accurate weighing of loads on a
platform, as well as for general applications in conformity with
the OIML standards. In all these cases, the OD load cell is
the heart of the mechanical design. Infact they provide
automatic compensation for eccentric loads on platforms up
to 400x400mm without the need of mechanical calibrations
and have mechanical stops which allow the installation
without particular adjustments.
The OD series low profile load cells are used in weighing
machines for piece counting, bottling, dosing, weighing
parcels, fiscal weighing, pharmaceutical weighing, etc.

OD-K6U-C1 / OD-K6U-C2 / OD-K6U-C3 / OD-K1D-C1 / OD-K1D-C2 / OD-K1D-C3
OD-K1.5D-C1 / OD-K1.5D-C2 / OD-K1.5D-C3
