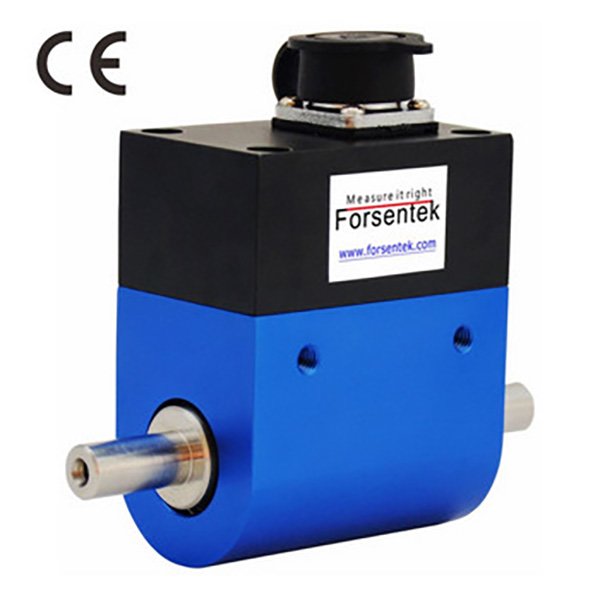

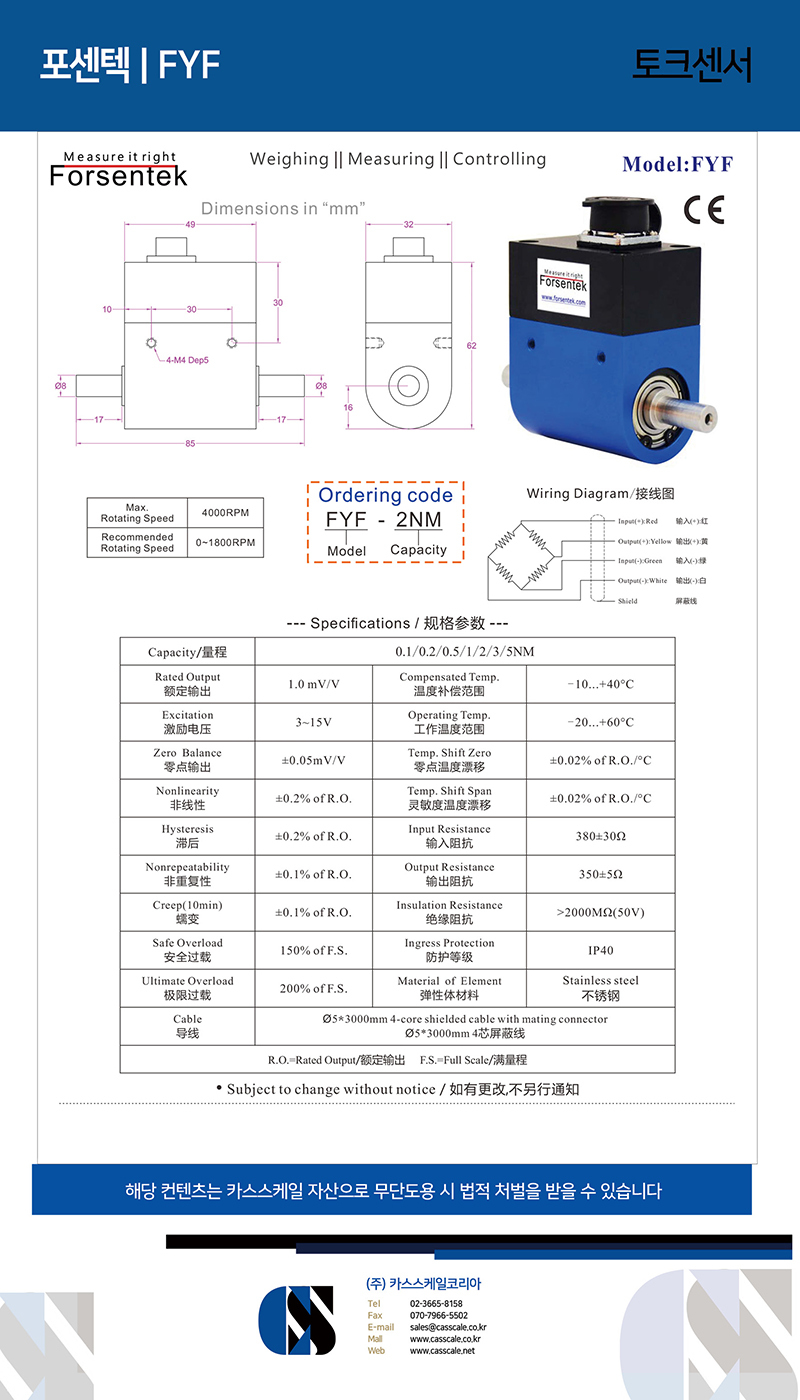

Rotary torque sensor FYF is a torque transducer intended for rotating torque measurement,slip rings are used to conduct the millivolt signal from the wheatstone bridge bonded on the sensing shaft which can rotates together with motor shaft and get the torque measured.Rotary torque meter FYF offers 0.1NM / 0.2NM / 0.5NM /1NM / 2NM / 3NM / 5NM measuring ranges with maximum 0.2% non-linearity,Torque cell FYF can be mounted between motor and load through couplings.Model FYF supports maximum 4000RPM rotating speed in both clockwise and counterclockwise direction.Signal conditioner and display unit can also be supplied to display the torque value and output 0-5V/0-10V/4-20mA analog signal. Typical applications for this type of torque sensor are for example servo motor torque measurement, valve torque testing, test bench applications, screw driver calibration, twist measurement, actuator test,etc..
