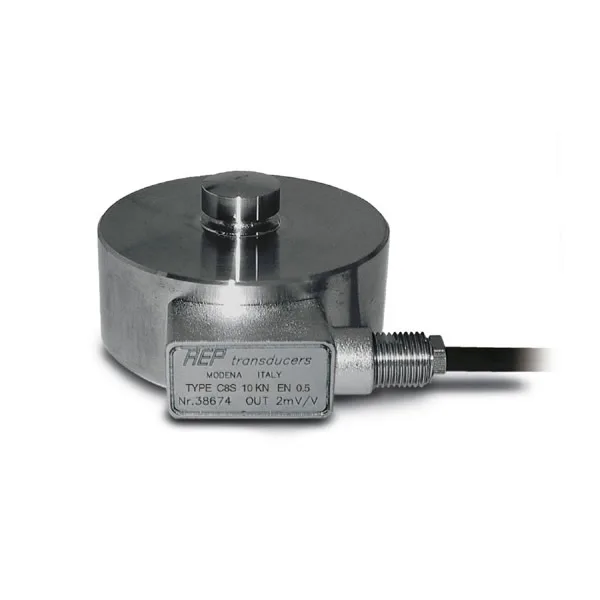

Force transducers for the measurement of static and dynamic loads in COMPRESSION
Nominal Load from 5 kN to 2 MN
Class (ISO 376) 0.5 and 1
Linearity and Hysteresis 0,03%
Output: 2mV/V
On request

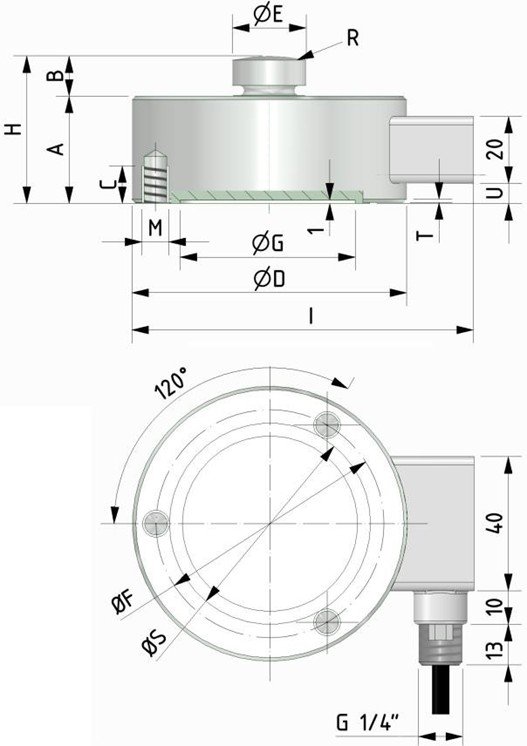

Dimensions[mm]
| LOAD | A | B | C | ÆD | ÆE | ÆF | ÆG | H | I | M | n°M | R | ÆS | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| from 5kN to 100kN | 32 | 12 | 11 | 82 | 22 | 68 | 52.3 | 44 | 102 | M8 | 3 | 50 | 60 | 0.3 | 6 |
| 200 – 300 kN | 50 | 14 | 12 | 126 | 35 | 90 | 77.3 | 64 | 148 | M8 | 3 | 160 | 100 | 0.5 | 15 |
| 500 – 750 – 1000 kN | 60 | 20 | 20 | 165 | 60 | 130 | 92.3 | 80 | 188 | M16 | 4 | 300 | 115 | 1 | 17 |
| 1500 – 2000 kN | 80 | 30 | 20 | 200 | 80 | 152 | 107 | 110 | 223 | M16 | 4 | 300 | 128 | 1 | 23 |
| LOAD | CODE (Class 0.5) | CODE (Class 1) |
|---|---|---|
| 5 kN | CC8S825KNI05 | CC8S825KNI15 |
| 10 kN | CC8S8210KNI05 | CC8S8210KNI15 |
| 25 kN | CC8S8225KNI05 | CC8S8225KNI15 |
| 50 kN | CC8S8250KNI05 | CC8S8250KNI15 |
| 75 kN | CC8S8275KNI05 | CC8S8275KNI15 |
| 100 kN | CC8S82100KNI05 | CC8S82100KNI15 |
| 200 kN | CC8S126200KNI05 | CC8S126200KNI15 |
| 300 kN | CC8S126300KNI05 | CC8S126300KNI15 |
| 500 kN | CC8S165500KNI05 | CC8S165500KNI15 |
| 750 kN | CC8S165750KNI05 | CC8S165750KNI15 |
| 1000 kN | CC8S1651MNI05 | CC8S1651MNI15 |
| 1500 kN | / | CC8S2001MN5I15 |
| 2000 kN | / | CC8S2002MNI15 |
Technical Data
| ACCURACY CLASS: ISO 376 | 0.5 (1) | 1 | ||
|---|---|---|---|---|
| NOMINAL LOAD (Emax) | 5 – 10 – 25 – 50 – 100 – 200 – 300 kN, 500 – 750 – 1000 – 1500² – 2000² kN | |||
| RELATIVE ERROR (at reading) a) repeatability 0°-120°-240° (b) b) interpolation (fc) c) reversibility (u) d) zero (fo) |
≤ ±0.090% (2) ≤ ±0.045% (2) ≤ ±0.120% (2) ≤ ±0.020% F.S. |
≤ ±0.150% (2) ≤ ±0.090% (2) ≤ ±0.200% (2) ≤ ±0.020% F.S. |
||
| LINEARITY HYSTERESIS |
≤ ±0.03% F.S. ≤ ±0.03% F.S. |
|||
| TEMPERATURE EFFECT (10°C) a) on zero b) on sensitivity |
≤ ±0.030% F.S. ≤ ±0.020% F.S. |
|||
| NOMINAL SENSITIVITY SENSITIVITY TOLERANCE |
2 mV/V ≤ ±0.1% F.S. |
|||
| INPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAX SUPPLY VOLTAGE |
700 ±2 Ω 705 ±2 Ω > 5 GΩ ≤ ± 1% F.S. 10 V 1-15 V 18 V |
|||
| MECHANICAL LIMIT VALUES REFERRED TO NOMINAL LOAD: a) service load b) max permissible load c) breaking load d) max transverse load e) max permissible dynamic load |
120% 150% >300% 50% 75% |
|||
| NOMINAL LOAD | 5…100 kN | 200-300 kN | 500-750-1000 kN | 1500-2000 kN |
| DISPLACEMENT AT NOMINAL LOAD | ~0.06 mm | ~0.16 mm | ~0.23 mm | ~0.36 mm |
| REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23°C -10/+40°C -10/+70°C -20/+80°C |
|||
| WEIGHT | 2.08 kg | 3.42 kg | 9.43 kg | ~18.2 kg |
| PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH |
IP67 Acciaio Inox / Stainless Steel 5 m |
|||
| FIXING SCREWS a) diameter b) resistance class c) tightening torque |
M8 12.9 80 Nm |
M8 12.9 80 Nm |
M16 12.9 230 Nm |
M16 12.9 230 Nm |
(1) Tests and calibrations performed with the transducer mounted on a bearing support with correctly tightened clamping screws.
(2) Percentage errors referred to reading, min. 1/10 of nominal load.
* 0.5 class not available for 1500 and 2000kN.
kg calibration on request.
Classifications according ASTM E74 on request.

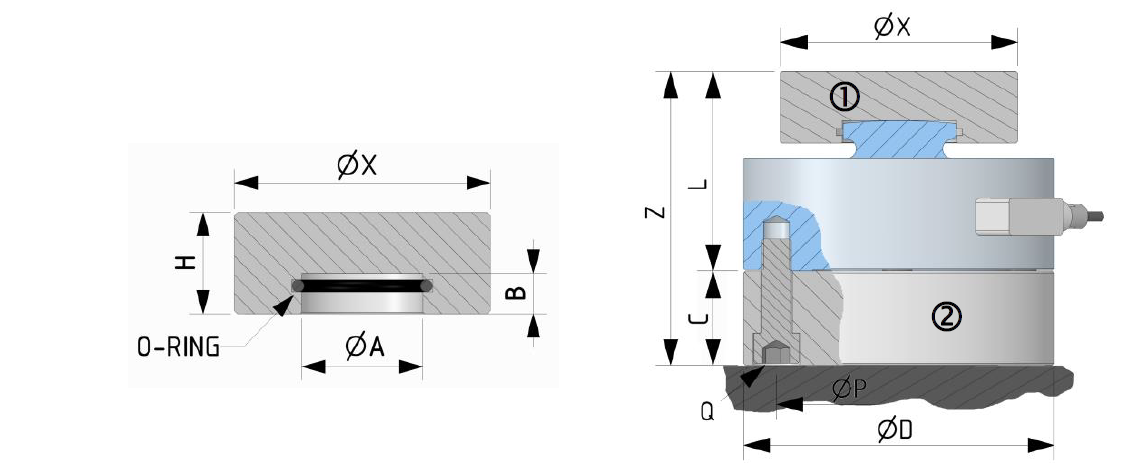

Dimension[mm]
| C8S | CODE | ACCESSORIES | ACCESSORI | ÆX | ÆA | B | C | D | L | Z | H | P | Q | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5kN to 100 kN | CTIC22 | ① | Loading head | Testa di carico | 57 | 23 | 9 | 30 | 82 | 59 | 89 | 24 | 68 | #3 M8×30 |
| CPBC8SD82 | ⓶ | Mounting plate | Piastra di base | |||||||||||
| 200 – 300 kN | CTIC35 | ① | Loading head | Testa di carico | 76 | 36 | 12 | 40 | 126 | 82 | 132 | 30 | 90 | #3 M8×40 |
| CPBC2SD126 | ⓶ | Mounting plate | Piastra di base | |||||||||||
| 500 – 750 – 1000 kN | CTIC60 | ① | Loading head | Testa di carico | 126 | 61 | 12 | 50 | 165 | 106 | 156 | 38 | 130 | #4 M16×50 |
| CPBC2SD165 | ⓶ | Mounting plate | Piastra di base | |||||||||||
| 1500 – 2000 kN | CTIC80 | ① | Loading head | Testa di carico | 128 | 81 | 21 | 50 | 200 | 157 | 207 | 68 | 152 | #4 M16×50 |
| CPBC2SD200 | ⓶ | Mounting plate | Piastra di base |

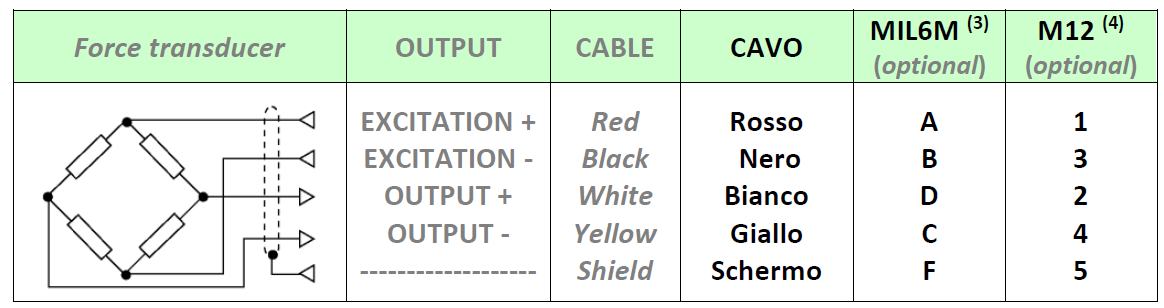

Electrical Connections
STANDARD OUTPUT: PVC 105°C shielded cable, Ø 5.2mm with 4× Ø 0.35mm2 tinned conductors.
Shield connected to the body of the transducer.
