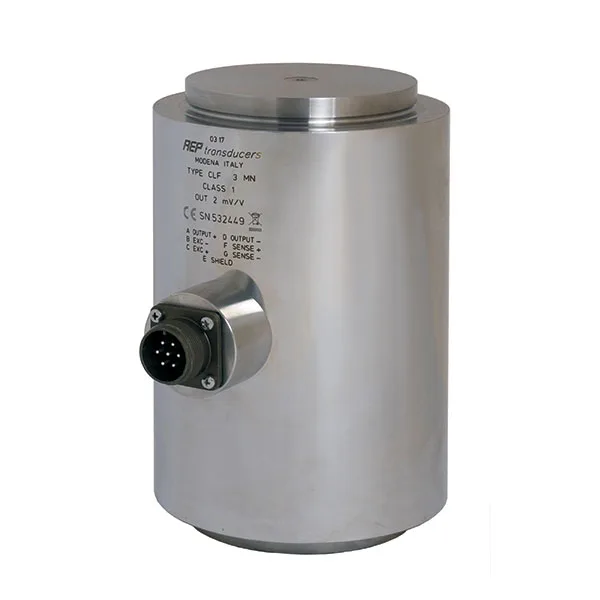

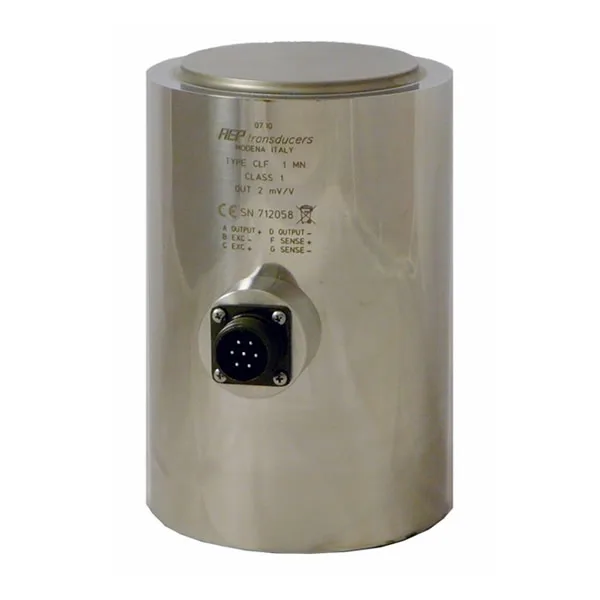

Force transducers for the measurement of static and dynamic loads in COMPRESSION
Force transducers for the measurement of static and dynamic loads in COMPRESSION.
Nominal Load from 300 kN to 5 MN
Class (ISO 376) 1
Linearity and Hysteresis 0,05%
Output: 2mV/V
| Code | Load | ØA | Ø B | Ø C | D | E | F |
|---|---|---|---|---|---|---|---|
| CCLF300KN | 300 kN | 129 | 100 | 100 | 164 | 12 | 10 |
| CCLF600KN | 600 kN | ||||||
| CCLF1MN | 1 MN | ||||||
| CCLF2MN | 2 MN | ||||||
| CCLF3MN | 3 MN | ||||||
| CCLF5MN | 5 MN | 168 | 140 | 160 | 203 | 17 | 5 |
Technical Data
| Accuracy class: ISO 376 | 1 | |
| NOMINAL LOAD | 300kN, 600kN, 1MN, 2MN, 3MN, 5MN (1) | |
| RELATIVE ERRORS (at reading) a) repeatability 0°-120°-240° (b) b) interpolation (fc) c) reversibility (u) d) zero (fo) |
≤±0.145% ≤±0.090% ≤±0.240% ≤±0.030% F.S. |
|
| LINEARITY HYSTERESIS | ≤±0.05% F.S. ≤±0.05% F.S. |
|
| TEMPERATURE EFFECT (10°C) a) on zero b) on sensitivity EFFECT OF TRANSVERSE LOAD: a) at 10% of nominal load |
≤±0.028% F.S. ≤±0.024% F.S.≤±0.030% F.S. |
|
| NOMINAL SENSITIVITY SENSIVITY TOLERANCE | 2mV/V ≤±0.1% F.S. |
|
| NOMINAL LOAD Input resistance Output resistance |
300kN, 600kN, 1MN 700 ± 2Ω 700 ± 2Ω |
|
| NOMINAL LOAD Input resistance Output resistance |
2, 3, 5 MN 350 ± 2Ω 350 ± 2Ω |
|
| INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE RANGE MAXIMUM SUPPLY VOLTAGE |
> 5 GΩ ≤±1% F.S. 10 V 1-15 V 18 V |
|
| MECHANICAL LIMIT VALUES REFERRED TO NOMINAL LOAD: a) service load b) max permissible load c) breaking load d) max transverse load e) max permissible dynamic load |
120% 150% >300% 100% 50% |
|
| REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23°C -10 / +40 °C -10 / +70 °C -20 / +80 °C |
|
| WEIGHT (kg) | 300kN … 3MN from 7 kg to 15 kg |
500MN ~25kg |
| PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CONNECTOR TYPE |
IP65 Acciaio Inox / Stainless Steel MIL-C-5015 7 poles male |
|
(1) calibrazioni in kg a richiesta / kg calibration on request
Electrical Connections
* Connected to the body of the transducer.
