Force transducers for the measurement of static and dynamic loads in COMPRESSION
Nominal Load from 300 kN to 5 MN
Class (ISO 376) 1 and 0.5
Linearity and Hysteresis 0,05%
Output: 2mV/V

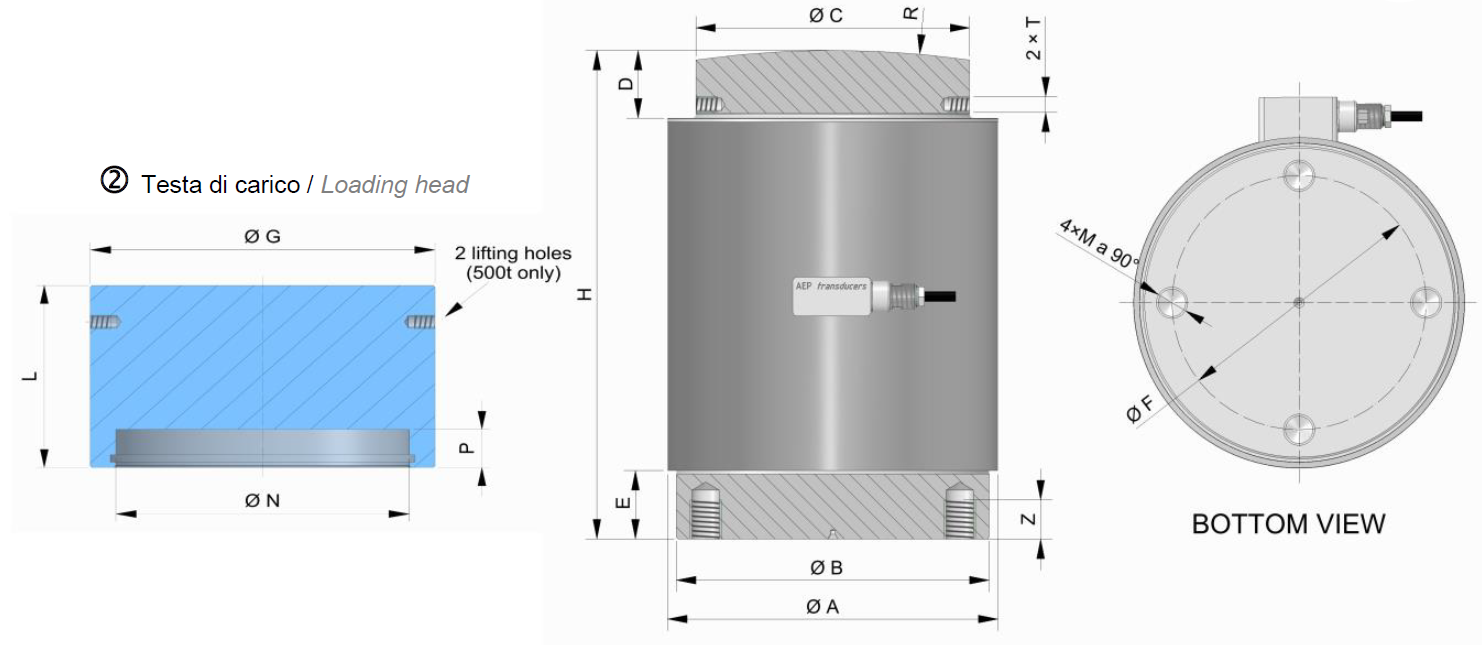

Dimensions[mm]
| Load | Æ A | Æ B | Æ C | D | E | F | Æ G | H | L | M | Æ N | P | R | T | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30t, 60t, 100t | 102 | 94 | 76 | 15 | 15 | 70 | 102 | 165 | 65 | M8 | 79 | 12 | 200 | / | 16 |
| 200t, 300t | 129 | 122 | 106 | 20 | 14 | 90 | 129 | 215 | 80 | M12 | 109 | 17 | 350 | / | 18 |
| 500t | 168 | 160 | 140 | 35 | 35 | 130 | 168 | 250 | 100 | M16 | 143 | 21 | 500 | M8 | 20 |
Technical Data
| Accuracy Class | C1 | C2 | |
|---|---|---|---|
| Legal Divisions | 1000 | 2000 | |
| Nominal Load (Emax) | 30, 60, 100, 200, 300, 500 t | ||
| Min. Verification Interval (Vmin) | Emax / 10000 | ||
| Combined Error | ±0.045% | ±0.023% | |
| Non-Repeatability | ±0.015% | ±0.010% | |
| Zero Return over 30 min. | ±0.036% | ±0.026% | |
| Creep at nominal load: | |||
| a) over 30 min. | ±0.035% | ±0.028% | |
| b) over 20 and 30 min. | ±0.010% | ±0.008% | |
| Temperature Effect (10 °C) a) on zero b) on sensitivity |
±0.030% ±0.030% |
±0.024% ±0.017% |
|
| Nominal Sensitivity Calibration Tolerance | 2 mV/V ±0.1% | ||
| Nominal Load | 30, 60, 100 t | ||
| Input Resistance | 700 ± 2 Ω | ||
| Output Resistance | 700 ± 2 Ω | ||
| Nominal Load | 200, 300, 500 t | ||
| Input Resistance | 350 ± 2 Ω | ||
| Output Resistance | 350 ± 2 Ω | ||
| Insulation Resistance Zero Balance | > 5 GW ±1% FS | ||
| Recommended Supply Voltage Nominal Supply Voltage | 10 V, 1–15 V | ||
| Maximum Supply Voltage | 18 V | ||
| Mechanical Limit values referred to nominal load: | |||
| a) minimum load | 0% | ||
| b) service load | 120% | ||
| c) max permissible load | 150% | ||
| d) breaking load | > 300% | ||
| e) max transverse load | 50% | ||
| Reference Temperature | +23 °C | ||
| Temperature Nominal Range | -10 / +40 °C | ||
| Working Temperature | -20 / +70 °C | ||
| Storage Temperature | -20 / +80 °C | ||
| Nominal Load / Weight | 30, 60, 100 t / ~7 kg | 200, 300 t / ~16 kg | 500 t / ~31 kg |
| Protection Class (EN 60529) Execution Material / Cable Length | IP68, Acciaio Inox / Stainless Steel, 5 m (on request 10 m) | ||
Acceleration of gravity g=9.80434 m/s2.
Electrical Connections
STANDARD OUTPUT: PVC 105°C shielded cable, Ø 5.2mm with 6 × Ø 0.25mm2 tinned conductors.
Shield connected to the body of the load cell.
