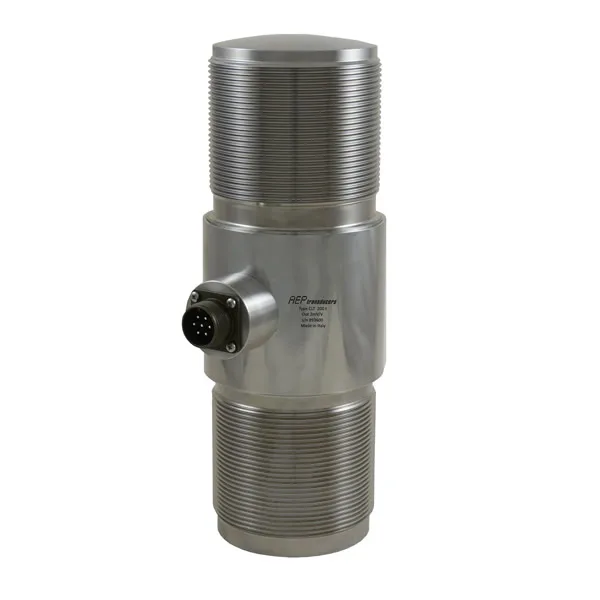

Load cell for the measurement of static and dynamic loads in TENSION and COMPRESSION
Nominal Load from 100 tons to 250 tons
Linearity: 0,10%
Output: 2mV/V
on request

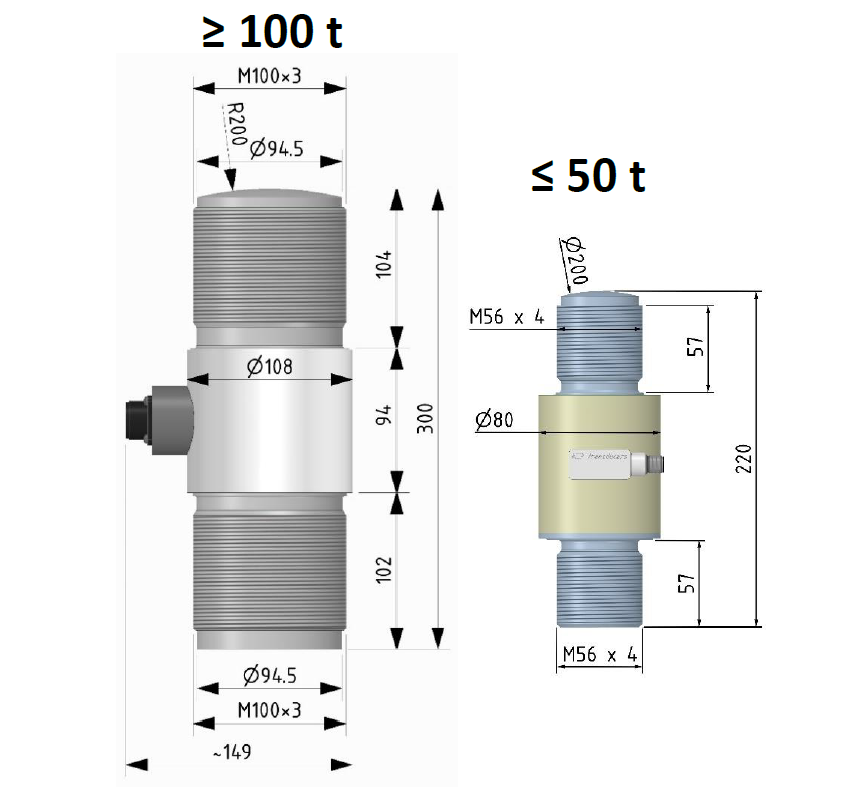

Dimensions [mm]
| CODE | LOAD |
|---|---|
| CCLT20T | 20 t |
| CCLT30T | 30 t |
| CCLT50T | 50 t |
| CCLT100T | 100 t |
| CCLT200T | 200 t |
| CCLT250T | 250 t |
Technical Data
| ACCURACY CLASS | 0.1% | |
| LINEARITY and HYSTERESIS | 0.1% | |
| NOMINAL LOAD | 20 – 30 t | 50 – 100 – 200 – 250 t |
| TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
± 0.028% ± 0.008% |
|
| NOMINAL SENSITIVITY CALIBRATION TOLERANCE |
2 mV/V (1) ± 0.1% |
|
| INPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE |
800 ± 20Ω 700 ± 2Ω > 5 GΩ ± 1% 10 V 1 ÷ 15 V 18 V |
|
| MECHANICAL LIMIT values (referred to nominal load): a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load |
0% |
|
| REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE WORKING TEMPERATURE STORAGE TEMPERATURE |
+23°C -10/+40 °C -20/+70 °C -20/+80 °C |
|
| WEIGHT | ~ 4 kg | ~ 18 kg |
| PROTECTION CLASS (EN 60529) EXECUTION MATERIAL |
IP65 Acciaio Inox / Stainless Steel |
|
| CONNECTION | Connettore M12 4 poli maschio 4 poles M12 male connector |
Connettore MIL 7 poli maschio MIL 7 poles male connector |
(1)Tests and calibrations performed in TENSION
Electrical Connections

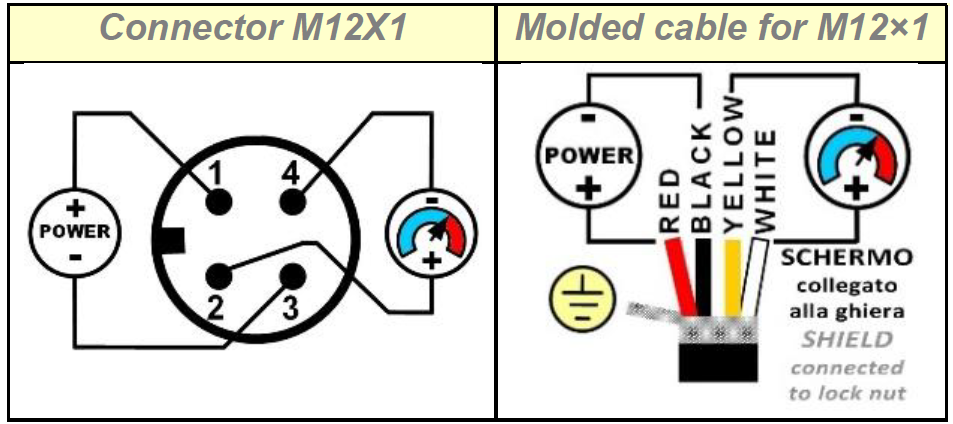

Up to 50t

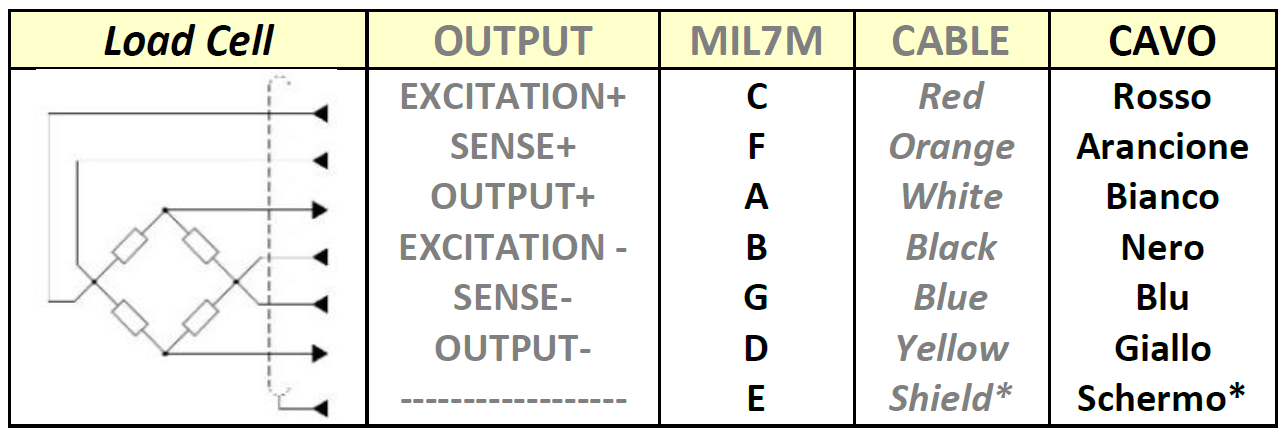

From 100t to 250t
PVC 105°C shielded cable, Ø 5.2mm with 4 tinned Ø 0.35mm2 conductors. Shield connected to the body of the torque meter.
Shield connected to the body of the load cell.
