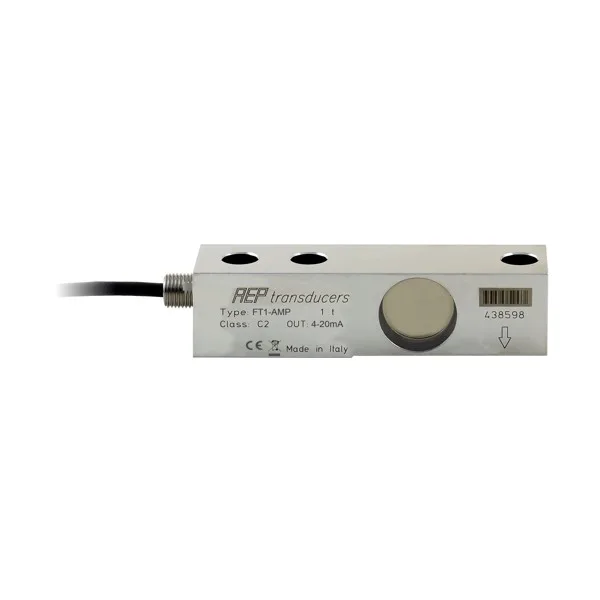

SHEAR BEAM load cell for the measurement of static and dynamic loads
Nominal Load from 350 kg to 2 tons
Linearity and Hysteresis 0.05%

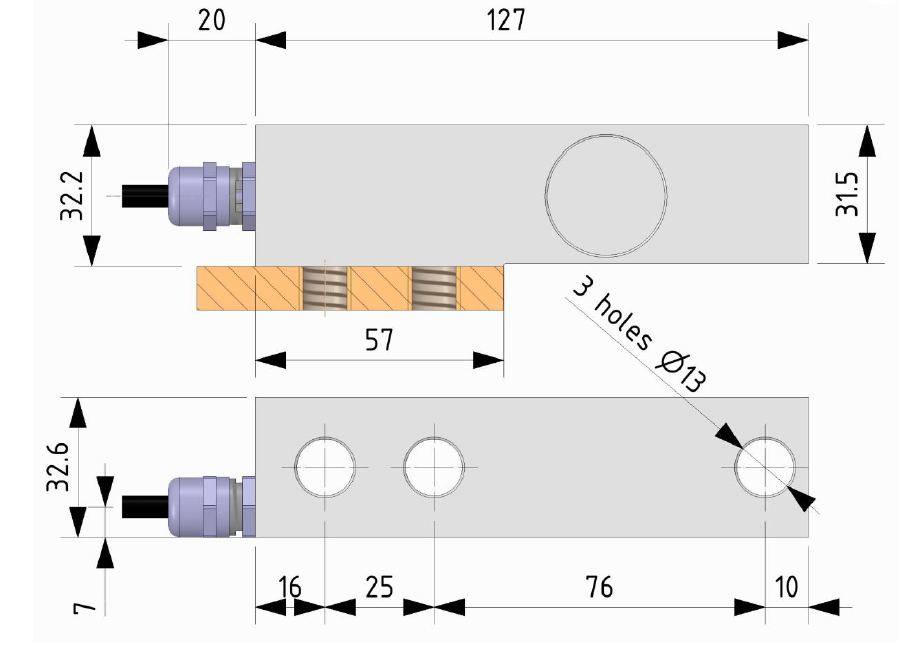

Dimensions [mm]
Technical Data
| ACCURACY | 0.03% |
| NOMINAL LOAD (Emax) | 350 kg – 500 kg – 1 t – 2 t |
| NOMINAL SENSITIVITY NOMINAL SENSITIVITY NOMINAL SENSITIVITY CALIBRATION TOLERANCE |

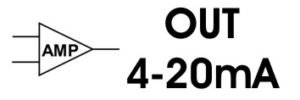

4-20 mA (3 wires) 0.5-5.5 V 0.5-10.5 V < ± 0.1 % |
| NON-LINEARITY NON-REPEATABILITY |
≤ ± 0.03 % ≤ ± 0.02 % |
| TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ± 0.03 % ≤ ± 0.02 % |
| NOMINAL POWER SUPPLY 4-20 mA and 0.5-5.5 V 0.5-10.5 V |
12 – 24 Vdc 18 – 24 Vdc |
| MAX. ABSORPTION (without load applied) LOADING RESISTANCE: a) tension b) current (according to power supply) INSULATION RESISTANCE ZERO BALANCE RESPONSE FREQUENCY |
15 mA
min. 3 KW |
| MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
0 % 120 % 150 % > 300 % 50 % 50 % ~ 0.2 mm |
| REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE WEIGHT |
+23 °C -10/+40 °C -20/+70 °C -20/+80 °C ~ 1.1 kg |
| PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH |
IP68 (100h at 1m water column) Acciaio Inox / Stainless Steel 5 m (on request 10 m) |
| FIXING SCREWS a) diameter b) resistance class c) tightening torque |
M12 12.9 150 Nm |
Acceleration of gravity g=9.80434 m/s2

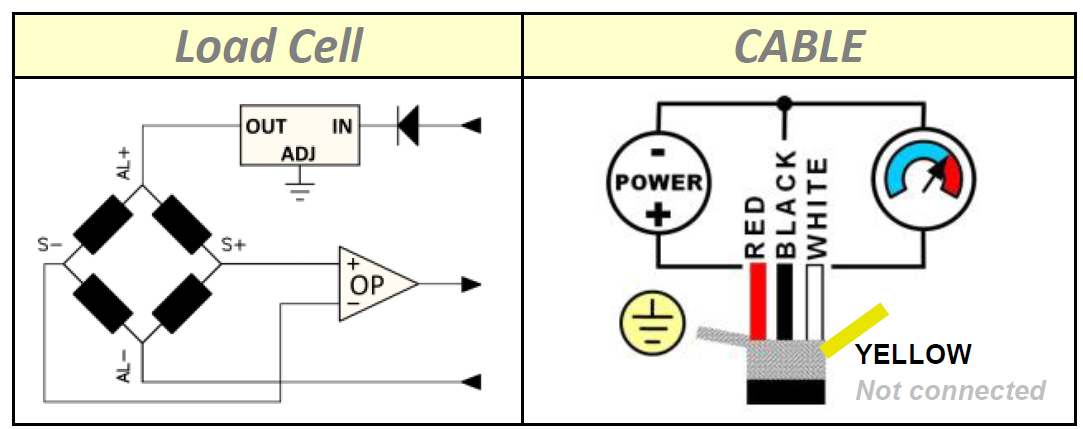

Electrical Connections
VC 105°C shielded cable, Ø5.2mm with 4 tinned Ø0.35mm2 conductors. Shield connected to the body of the load cell.
Shield connected to the body of the load cell.
