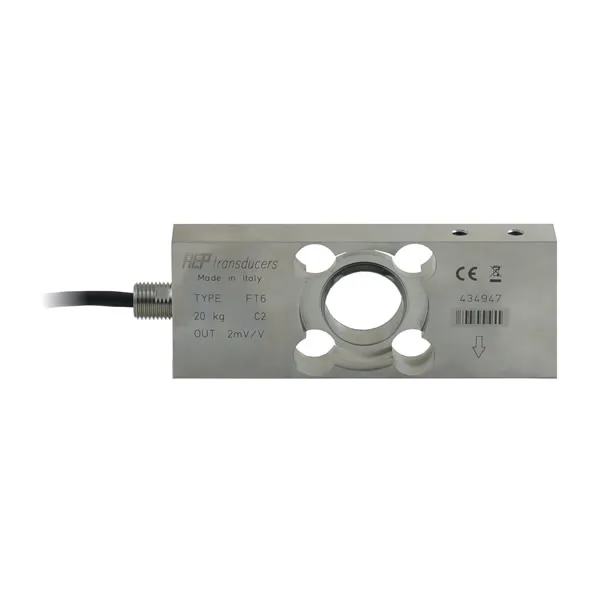

OFF CENTER load cell for the measurement of static and dynamic loads
Nominal Load from 5 kg to 100 kg
Class (OIML R60) C2
Combined Error: 0,028%
Output: 2mV/V
| LOAD | 5 kg | 10 kg | 20 kg | 30 kg | 50 kg | 100 kg | CODE |
|---|---|---|---|---|---|---|---|
| CFT65KC25 | CFT610KC25 | CFT620KC25 | CFT630KC25 | CFT650KC25 | CFT6100KC25 |
Dimensions [mm]
Platform size: 400 X 400 mm
Technical Data
| ACCURACY CLASS: OIML 60 | C2 |
| LEGAL DIVISIONS | 2000 |
| NOMINAL LOAD (Emax) | 5-10-20-30-50-100 kg |
| MIN. VERIFICATION INTERVAL (Vmin) | Emax / 10000 |
| COMBINED ERROR NON-REPEATABILITY ZERO RETURN over 30 min. CREEP to nominal load: a) over 30 min. b) over 20 and 30 min. |
≤ ±0.028% ≤ ±0.018% ≤ ±0.030%≤ ±0.029% ≤ ±0.009% |
| TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ±0.025% ≤ ±0.010% |
| NOMINAL SENSITIVITY SENSIVITY TOLERANCE |
2mV/V ≤ ±0.1% |
| INPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE |
420 ± 20W 350 ± 2W >5 GW ≤ ±1% 10 V 1-15 V 18 V |
| MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
0% 120% 150% >300% 200% 75% ~ 0.4 mm |
| REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23°C -10/+40 °C -20/+70 °C -20/+80 °C |
| WEIGHT PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH |
~ 1.0 kg IP67 Acciaio Inox / Stainless Steel 5m |
| FIXING SCREWS a) diameter b) resistance class c) tightening torque |
M6 12.9 10 Nm |
Acceleration of gravity g=9.80434 m/s2
Electrical Connections
PVC 105°C shielded cable, Ø 5.2mm with 4 tinned Ø0.35mm2 conductors.
Shield connected to the body of the load cell.
