DOUBLE SHEAR BEAM load cell for the measurement of static and dynamic.
loads Nominal Load 15 ton
Linearity and Hysteresis 0.10%
Output: 2mV/V

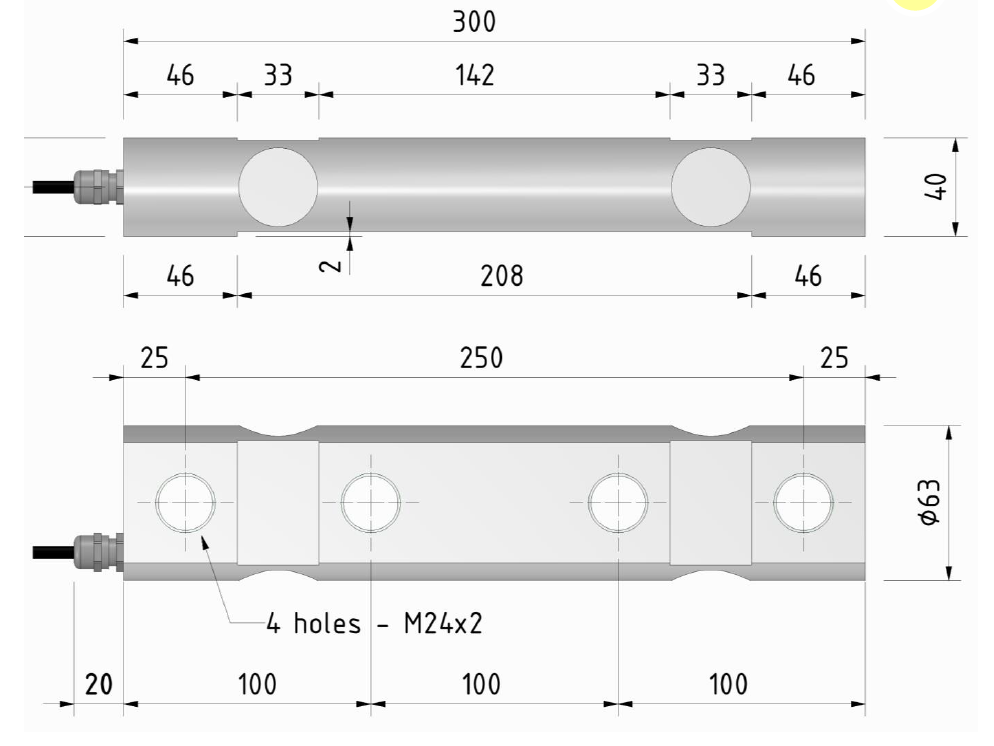

Dimensions [mm]
Technical Data
| NOMINAL LOAD | 15 t |
| NOMINAL SENSITIVITY SENSITIVITY TOLERANCE | 2 mV/V ≤ ± 0.1% |
| TEMPERATURE EFFECT (°C) a) on zero b) on sensitivity |
≤ ± 0.01 % ≤ ± 0.020 % |
| LINEARITY | ≤± 0.1 % |
| INPUT RESISTANCE OUTPUT RESISTANCE I NSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE |
700 ± 5 W 700 ± 2 W >5 GW ≤ ± 1 % 10 V 1-15 V 18 V |
| MECHANICAL LIMIT VALUES REFERRED TO NOMINAL LOAD: a) service load b) max permissible load c) breaking load d) max transverse load e) max permissible dynamic load |
120 % |
| REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23 °C -10 / +40 °C -20 / +70 °C -20 / +80 °C |
| WEIGHT PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH |
~ 4.7 kg IP68 Acciaio Inox / Stainless Steel 5 m |
| FIXING SCREWS a) diameter b) resistance class c) tightening torque |
M24×2 12.9 250 Nm |
Acceleration of gravity g=9.80434 m/s2
Electrical Connections
*Connected to the body of the load cell.
PVC 105°C shielded cable, Ø 5.2mm with 4 tinned Ø0.35mm2 conductors.
Shield connected to the body of the load cell.
