Force transducers for the measurement of static loads in COMPRESSION and TENSION
Nominal Load from 1 kN to 10 kN
Linearity and Hysteresis 0,05%
SMALL SIZE
Standar output
| microTC4 10V | microTC4 + base |
|---|---|
 |
 |
Dimensions[mm]
| CODE | LOAD | CODE | LOAD |
|---|---|---|---|
| CTC5631KN | 1 kN | CTC563100K | 100 kg |
| CTC5632KN5 | 2,5 kN | CTC563250K | 250 kg |
| CTC5635KN | 5 kN | CTC563500K | 500 kg |
| CTC56310KN | 10 kN | CTC5631T | 1 t |
Technical Data
| NOMINAL LOAD | 1 – 2,5 – 5 – 10 kN |
| LINEARITY HYSTERESIS |
≤±0.05% F.S. ≤±0.05% F.S. |
| NOMINAL SENSITIVITY SENSITIVITY TOLERANCE |
±10 Volt (1) ≤±0.1% F.S. |
| NOMINAL POWER SUPPLY MAX. POWER SUPPLY MAX. ABSORPTION LOADING RESISTANCE INSULATION RESISTANCE ZERO BALANCE RESPONSE FREQUENCY |
18-24Vdc 28Vdc 30mA min. 3KW >2 GW ±1% ~1 kHz |
| REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23°C -10 / +40°C -10 / +70°C -20 / +80°C |
| TEMPERATURE EFFECT (10°C) a) on zero b) on sensitivity |
≤±0.028% F.S. ≤±0.024% F.S. |
| MECHANICAL LIMIT VALUES REFERRED TO NOMINAL LOAD: a) service load b) max permissible load c) breaking load d) max transverse load e) max permissible dynamic load Displacement at nominal load |
120% 150% >300% 100% 70% (2) ~0.06 mm |
| PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CONNECTOR OUTPUT |
IP67 Acciaio Inox / Stainless Steel M12 5 Poles Male connector |
| FIXING SCREWS: a) diameter b) resistance class c) tightening torque |
M5 12.9 8 Nm |
(1) Tests and calibrations performed in COMPRESSION with the transducer mounted on a bearing support with correctly tightened clamping screws.
(2) The dynamic load must be applied to the transducer central thread and not to the external fixing rim.

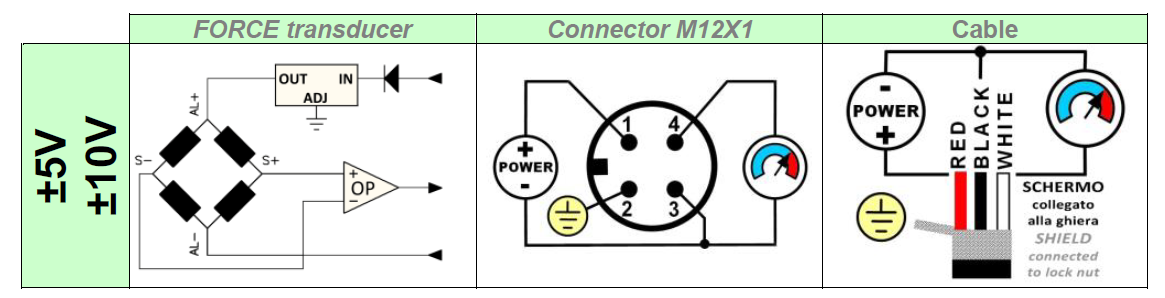

Electrical connection
WARNING: Protect POWER+ by using an external 100 to 200mA fast-blow fuse
