Pressure Force Torque Displacement in your HANDS
Professional ergonomic indicator extremely versatile and easy to be used for measurement of FORCE, WEIGHT, PRESSURE (gas), VACUUM, TORQUE and DISPLACEMENT. It is possible to integrate inside a FORCE sensor from 10 N to 5 kN or a pressure sensor (relative, absolute or differential up to max. 5bar) while from the external input it is possible to connect strain gauges sensors with output in mV/V such as: load cells, force transducers, pressure transducers, torque and displacement transducers. AUTOMATIC recognition of FORCE, WEIGHT, VACUUM, PRESSURE, TORQUE and DISPLACEMENT external transducers (max. 7) LCD graph DISPLAY with 3 levels of backlighting to adapt itself to any conditions of external brightness and with the possibility of rotating the visualization of 180°. DIGITAL CALIBRATIONS protected by Password with full scale programming or with the “LINEARIZATION by points” of transducers, for every transducer it is possible to separately calibrate both the positive and the negative field. (Example: Tension and Compression) DATALOGGER allows to memorize measurements and to keep them in the internal memory even in case of instrument switching off. (max. 130.000 recordings)
Typical Applications:
✓ Calibration of materials test machines, test benches, pressure tester, pressure switch etc.
✓ Quality controls in the production lines, calibration and test laboratories.
✓ Compression and tension tests on springs.
✓ Tests of frictions, cable terminal tearing, rivets etc.
✓ Test of lockup on both packing and protection devices.
✓ Test on welding of electronic components.
✓ Test of opening and closing of both manual and automatic doors.
✓ Test of the handling of both manual and automatic loads.
✓ Test on filters, loss and vacuum tests, analysis of pressures variation in the time.
✓ Wireless monitoring of hanging loads, mobile weighing.
✓ Environmental pressure monitoring. (Barometer)
✓ Calibration of: release and direct reading torque keys, screw drivers.
✓ Monitoring of cracks through displacement transducers in the building industry.

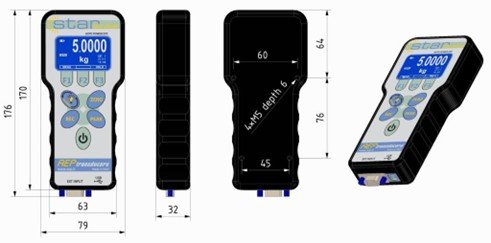

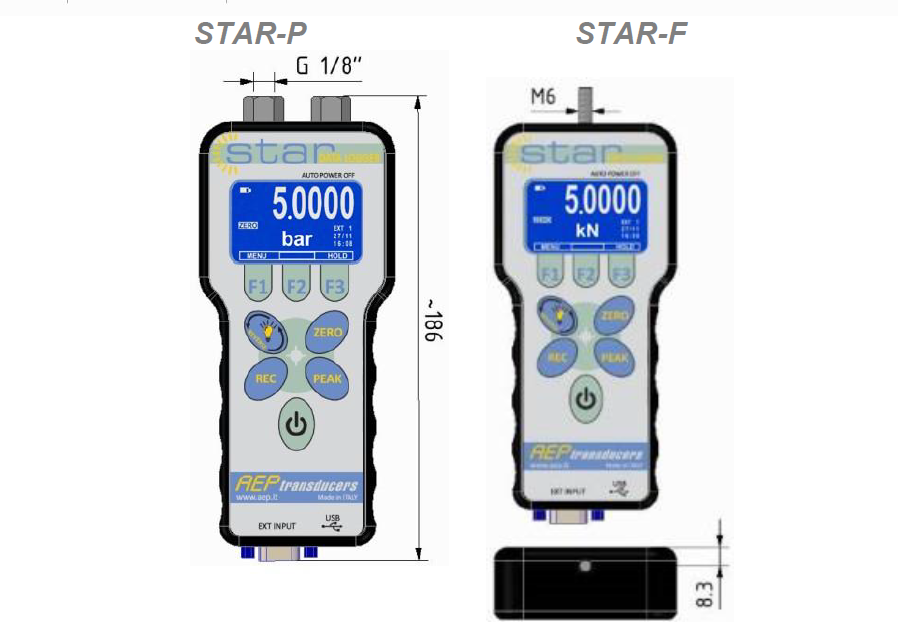

Dimensions (mm):
Available combinations:

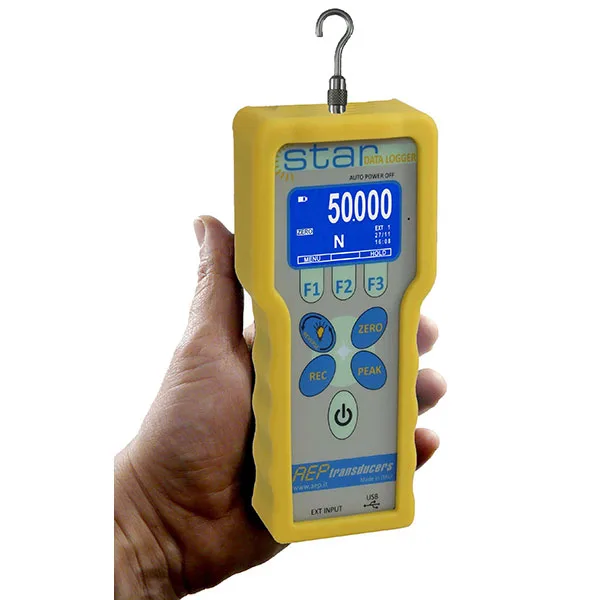

Star-F with internal sensor to measure FORCE and WEIGHT in compression and tension in ranges from 10 N (1 kg) up to 5 kN (500 kg)
With external sensors (1) such as load cells or force transducers with standardized ranges up to 5 MN (500 t).

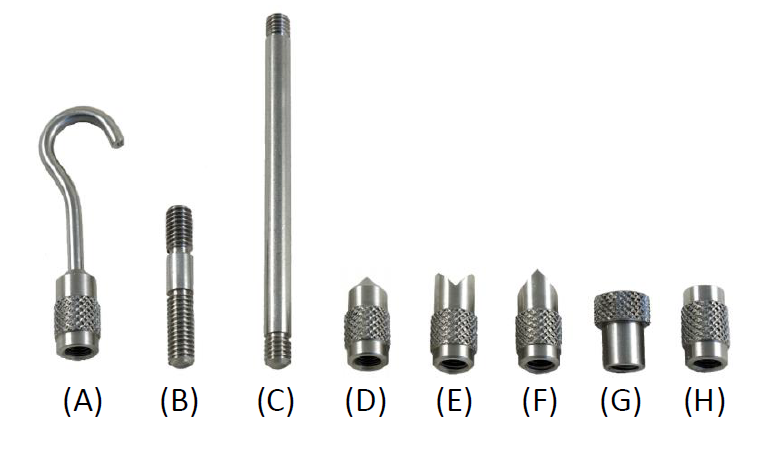

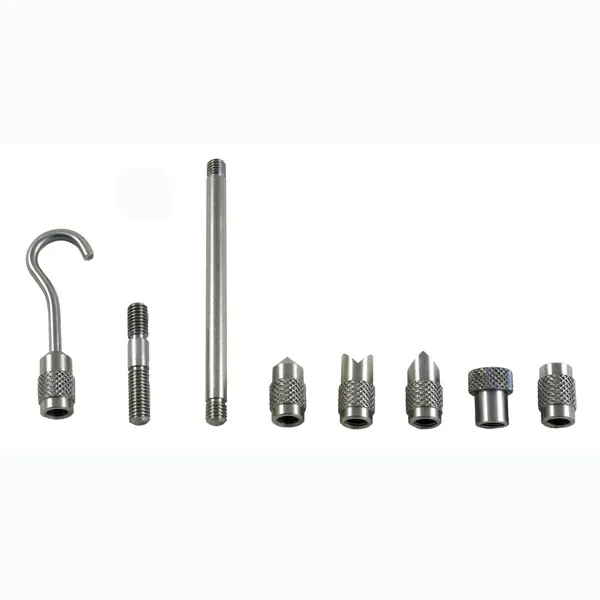

KIT of accessories to perform COMPRESSION and TENSION tests on materials.
(A) Hook for tension tests.
(B) Short threaded extension.
(C) Long threaded extension.
(D) Tapered tip for compression testing.
(E) Toothed tip for compression testing.
(F) Chisel tip for compression testing.
(G) Flat tip for compression testing.
(H) Threaded compass.

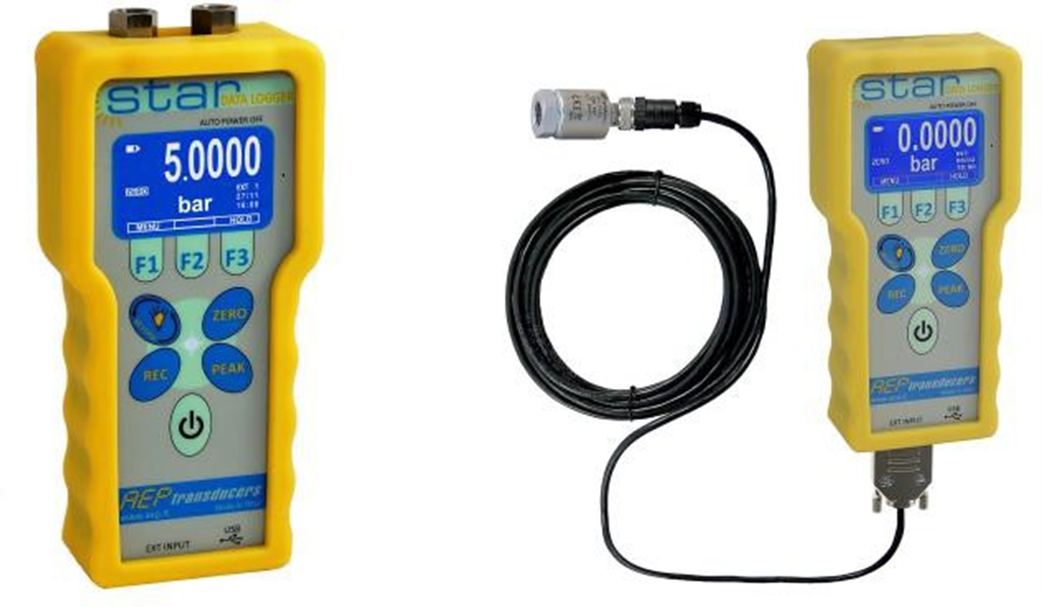

Star-P with internal sensor to measure the VACUUM, a relative, absolute or differential PRESSURE in gas (NO liquids), with ranges from 100 mbar up to 5 bar (1.5 a 70 psi).
With external sensors (1) such as TP16 or TP1 models to measure higher pressures with standardized ranges up to 2000 bar (29000 psi) suitable for both gas and liquids.

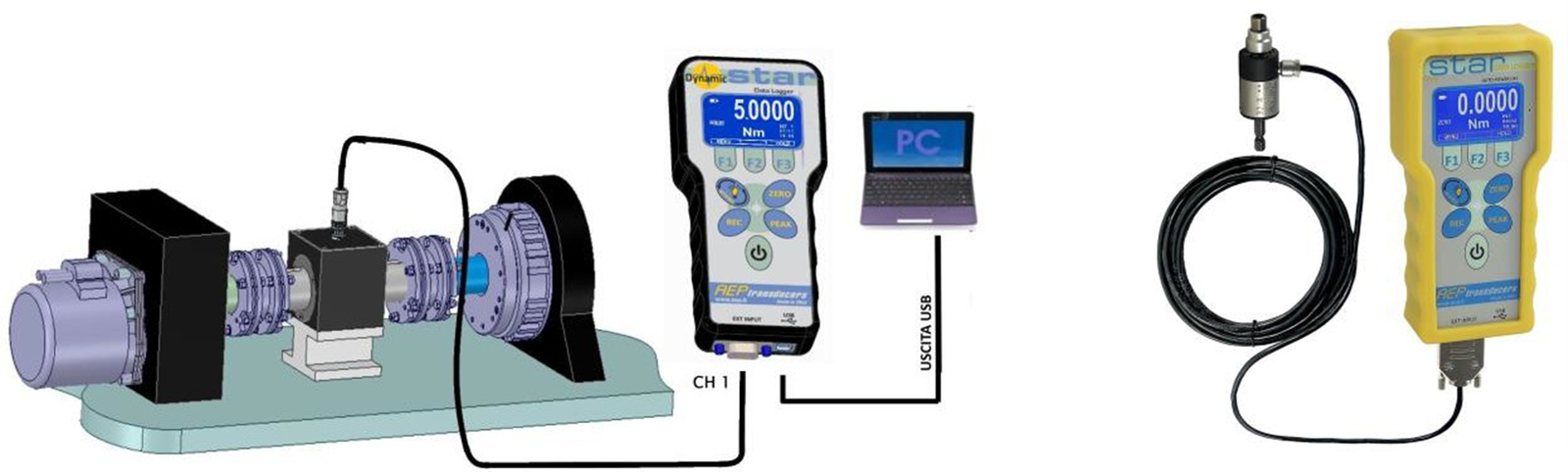

Star with external(1) sensors such as TRX, TRS, RT2, uTOR models to measure static or dynamic TORQUES with standardized ranges from 1 up to 5000 Nm.
Possibility of recording continuous PEAKS in clockwise and anticlockwise direction at high speed, 4.8 kHz.
Possibility of recording 1° PEAK with programmable threshold to test torque keys.

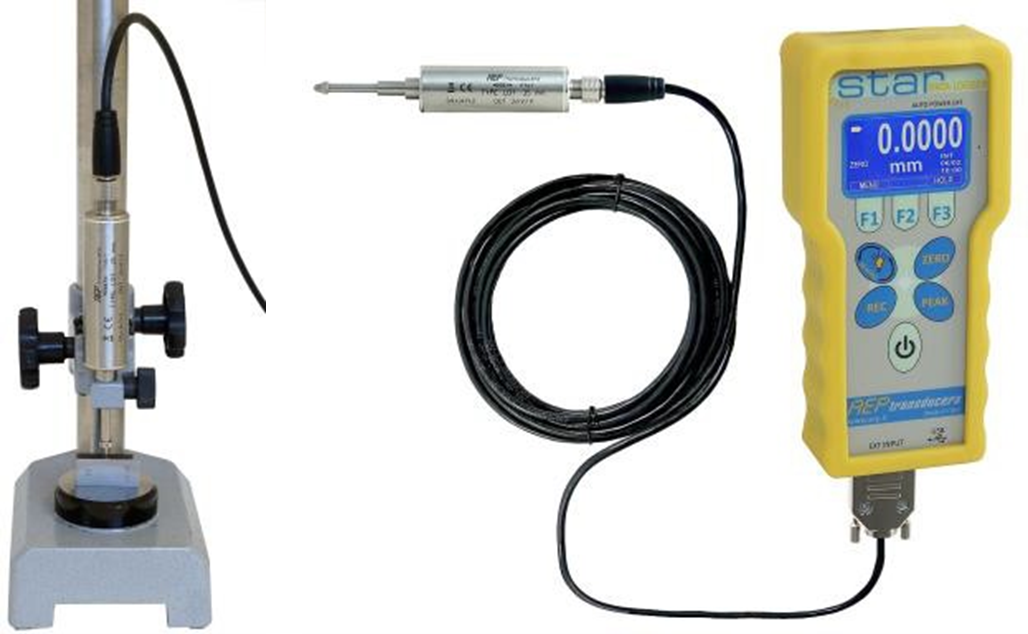

With external(1) sensors such us LDT model to measure the DISPLACEMENT with standardized ranges from 5 up to 200 mm.
(1) Star automatically recognizes a max. number of 7 transducers alternatively connected, by Auto Configuring itself with the dedicated parameters (Measurement unit, Filter, Resolution). It is possible to connect different sensors to perform measurements of FORCE, WEIGHT, PRESSURE, TORQUE and DISPLACEMENT.
Main characteristics:
| PRESSURE internal sensor ACCURACY: 0.10% F.S. (ON REQUEST 0.05% F.S.) FORCE internal sensor ACCURACY: 0.05% F.S. External channel ACCURACY: 0.01% F.S. REFERENCE temperature 23°C, Service temperature from 0 to +50°C Temperature effect (10°C): on zero ±0.01%, on full scale ±0.01% |
| External INPUT signal 2mV/V (350 or 700Ω, 4 wires system) 5Vdc power supply Standard resolution ±50,000 divisions at 2mV/V |
| HIGH RESOLUTION (128×64 dots) LCD DISPLAY with 3 backlight levels and 180° rotation. |
| AUTOMATIC recognition of FORCE, WEIGHT, VACUUM, PRESSURE, TORQUE and DISPLACEMENT External transducers (max. 7) |
| Programmable MEASUREMENT UNITS: FORCE / WEIGHT: kg, g, t, N, daN, kN, MN, lb, klb PRESSURE: bar, mbar, psi, MPa, kPa, Pa, mH2O, inH2O, kg/cm², mmHg, cmHg, inHg, atm TORQUE: Nm, Nmm, kgm, kNm, in.lbf, ft.lbf, gcm, kgmm LENGTH: mm, inch |
| DIGITAL CALIBRATIONS protected by password (full scale or point linearization). Positive and negative field can be calibrated separately (e.g., tension/compression). |
| DATALOGGER (130,000 records) with Automatic mode (0.1 sec – 24 hr) or Manual REC mode. Data viewable on display or downloadable via Quick Analyzer (graphs, Excel, reports). |
| Programmable RESOLUTION |
| Digital FILTER and CONVERSIONS per second (5 to 4800) programmable |
| ZERO function resets measurement instantly. HOLD temporarily freezes the measurement. |
| PEAK function (positive and negative) |
| Li-Ion battery — 24 hr autonomy (with backlight). In DATALOGGER (5 min interval): approx. 100 hr operation. AUTO POWER OFF programmable (1–99 min). |
| CLOCK (hours/minutes) and internal CALENDAR (day/month) |
| Serial communication via USB (max. 20 data/sec). WIRELESS transmission ON REQUEST (max. 10 data/sec). |
| Protection grade (EN 60529): IP40 Painted ALUMINIUM case with yellow silicone COVER WEIGHT: ~0.7 kg |
STAR can be manufactured on REQUEST equipped with the WIRELESS transmission, which allows to transmit the data directly to a PC and to TABLET or a PLC.
By using WinWIMOD software it is possible to create a NETWORK with up to 32 units, the net can consist of both STAR instruments and sensors interfaced with WIMOD.
Purchase codes:
| STAR | INTERNAL sensor | WIRELESS transmission |
|
| ABSOLUTE PRESSURE (Barometer) |
500 mbar | 500MBARA | W |
| 1 bar | 1BARA | ||
| 2.5 bar | 2.5BARA | ||
| 5 bar | 5BARA | ||
| RELATIVE PRESSURE | 100 mbar | 100MBAR | |
| 500 mbar | 500MBAR | ||
| 1 bar | 1BAR | ||
| 2.5 bar | 2.5BAR | ||
| 5 bar | 5BAR | ||
| RELATIVE PRESSURE VACUUM | 100 mbar | 100MBARV | |
| 500 mbar | 500MBARV | ||
| 1 bar | 1BARV | ||
| 2.5 bar | 2.5BARV | ||
| 5 bar | 5BARV | ||
| DIFFERENTIAL PRESSURE | 100 mbar | 100MBARD | |
| 500 mbar | 500MBARD | ||
| 1 bar | 1BARD | ||
| 2.5 bar | 2.5BARD | ||
| 5 bar | 5BARD | ||
| FORCE | 10 N | 10N | |
| 25 N | 25N | ||
| 50 N | 50N | ||
| 100 N | 100N | ||
| 250 N | 250N | ||
| 500 N | 500N | ||
| 1000 N | 1KN | ||
| 3000 N | 3KN | ||
| 5000 N | 5KN | ||
Examples:
| STAR | NO INTERNAL sensor | EXTERNAL input max. 7 sensors | USB output |
| STARW | NO INTERNAL sensor | EXTERNAL input max. 7 sensors | USB output | Wireless transmission |
| STAR1BAR | INTERNAL sensor 1 bar Relative | EXTERNAL input max. 7 sensors | USB output |
| STAR100NW | INTERNAL sensor 100 N | EXTERNAL input max. 7 sensors | USB output | Wireless transmission |
PRESSURE internal sensor resolution:
| bar | mbar | psi | MPa | kPa | Pa | mH2O | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FS | Res. | FS | Res. | FS | Res. | FS | Res. | FS | Res. | FS | Res. | FS | Res. |
| 0.1000 | 0.0001 | 100.00 | 0.01 | 1.4500 | 0.0001 | 0.0100 | 0.0001 | 10.000 | 0.001 | 10000 | 1 | 1.0000 | 0.0001 |
| 0.5000 | 0.0001 | 500.00 | 0.10 | 7.2000 | 0.0010 | 0.0500 | 0.0001 | 50.000 | 0.005 | 50000 | 5 | 5.0000 | 0.0005 |
| 1.0000 | 0.0001 | 1000.0 | 0.1 | 14.500 | 0.0001 | 0.1000 | 0.0001 | 100.00 | 0.01 | 100000 | 10 | 10.000 | 0.001 |
| 2.5000 | 0.0005 | 2500.0 | 0.5 | 36.200 | 0.005 | 0.2500 | 0.0001 | 250.00 | 0.05 | 250000 | 50 | 25.500 | 0.005 |
| 5.0000 | 0.0005 | 5000.0 | 0.5 | 72.500 | 0.005 | 0.5000 | 0.0001 | 500.00 | 0.05 | 500000 | 50 | 51.000 | 0.05 |
| inH2O | Kg/cm² | mmHg | cmHg | inHg | Atm | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| FS | Res. | FS | Res. | FS | Res. | FS | Res. | FS | Res. | FS | Res. |
| 40.000 | 0.005 | 0.1000 | 0.0001 | 75.00 | 0.01 | 7.500 | 0.001 | 3.0000 | 0.0002 | 0.1000 | 0.0001 |
| 200.00 | 0.02 | 0.5000 | 0.0001 | 375.00 | 0.05 | 37.500 | 0.005 | 14.500 | 0.002 | 0.5000 | 0.0001 |
| 400.00 | 0.05 | 1.0000 | 0.0001 | 750.0 | 0.1 | 75.00 | 0.01 | 30.000 | 0.002 | 1.0000 | 0.0001 |
| 1000.00 | 0.10 | 2.5500 | 0.0005 | 1900.0 | 0.2 | 190.00 | 0.02 | 75.00 | 0.01 | 2.5000 | 0.0002 |
| 2000.0 | 0.2 | 5.0000 | 0.0005 | 3750.0 | 0.5 | 375.00 | 0.05 | 145.00 | 0.02 | 5.0000 | 0.0005 |
Limit pressure: 150% Full scale.
FORCE internal sensor resolution:
| N | daN | kN | kg | g | lb | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| FS | Res. | FS | Res. | FS | Res. | FS | Res. | FS | Res. | FS | Res. |
| 10.000 | 0.005 | 1.0000 | 0.0005 | 0.0100 | 0.0005 | 1.0000 | 0.0005 | 1000.0 | 0.5 | 2.2000 | 0.001 |
| 25.000 | 0.005 | 2.5000 | 0.0005 | 0.0250 | 0.0005 | 2.5000 | 0.0005 | 2500.0 | 0.5 | 5.5000 | 0.001 |
| 50.000 | 0.005 | 5.0000 | 0.0005 | 0.0500 | 0.0005 | 5.0000 | 0.0005 | 5000.0 | 0.5 | 11.000 | 0.001 |
| 100.00 | 0.05 | 10.000 | 0.005 | 0.1000 | 0.005 | 10.000 | 0.005 | 10000 | 5 | 22.000 | 0.01 |
| 250.00 | 0.05 | 25.000 | 0.005 | 0.2500 | 0.005 | 25.000 | 0.005 | 25000 | 5 | 55.000 | 0.01 |
| 500.00 | 0.05 | 50.000 | 0.005 | 0.5000 | 0.005 | 50.000 | 0.005 | 50000 | 5 | 110.00 | 0.01 |
| 1000.0 | 0.5 | 100.00 | 0.05 | 1.0000 | 0.0005 | 100.00 | 0.05 | / | / | 220.00 | 0.1 |
| 3000.0 | 0.5 | 300.00 | 0.05 | 3.0000 | 0.0005 | 300.00 | 0.05 | / | / | 660.00 | 0.1 |
| 5000.0 | 0.5 | 500.00 | 0.05 | 5.0000 | 0.0005 | 500.00 | 0.05 | / | / | 1100.0 | 0.1 |
