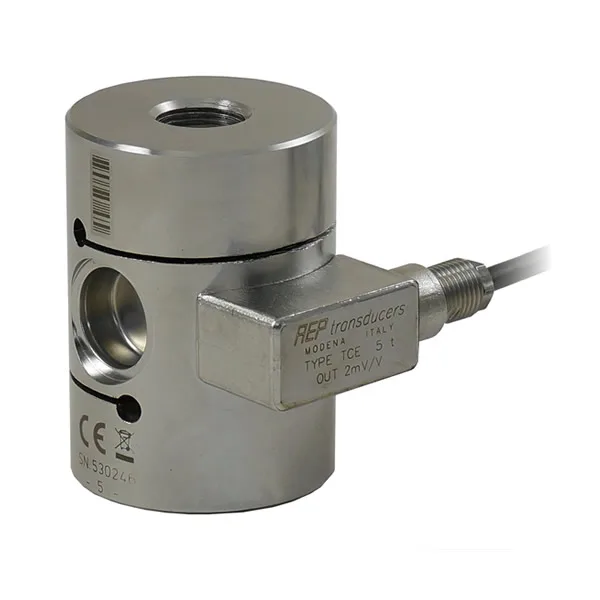

Load cell for the measurement of static and dynamic loads in COMPRESSION and TENSION
Nominal Load from 350 tons to 20 tons
Linearity and Hysteresis 0.03%
Standar output M12 connector

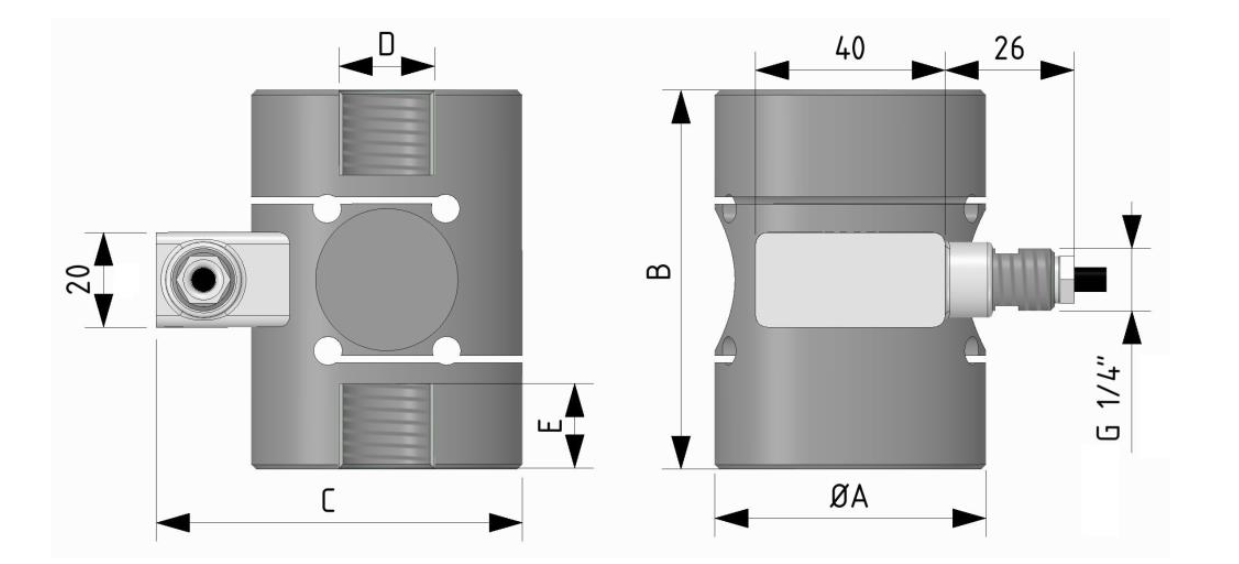

Dimensions [mm]
| CODE | LOAD | ØA | B | C | D | E |
|---|---|---|---|---|---|---|
| CTCE57350K5 | 350 kg | 57 | 80 | 74.5 | M20X1.5 | 17 |
| CTCE57500K5 | 500 kg | 57 | 80 | 74.5 | M20X1.5 | 17 |
| CTCE571TK5 | 1 t | 57 | 80 | 74.5 | M20X1.5 | 17 |
| CTCE572T55 | 2.5 t | 57 | 80 | 74.5 | M20X1.5 | 17 |
| CTCE575T5 | 5 t | 57 | 80 | 74.5 | M20X1.5 | 17 |
| CTCE825T5 | 5 t | 82 | 110 | 102 | M30X2 | 20 |
| CTCE827T55 | 7.5 t | 82 | 110 | 102 | M30X2 | 20 |
| CTCE8210T5 | 10 t | 82 | 110 | 102 | M30X2 | 20 |
| CTCE8220T5 | 20 t | 82 | 150 | 102 | M42X3 | 30 |
Technical Data
| ACCURACY | 0.03% |
| NOMINAL LOAD | 350 – 500 kg |
| NOMINAL LOAD | 1 – 2.5 – 5(1) – 7.5 – 10 – 20 t |
| NOMINAL SENSITIVITY CALIBRATION TOLERANCE | 4-20 mA (3 wires), ±5V or ±10V |
| NOMINAL SENSITIVITY CALIBRATION TOLERANCE | < ±0.1% |
| NON-LINEARITY | ±0.03% |
| NON-REPEATABILITY | ±0.03% |
| TEMPERATURE EFFECT (10°C) a) on zero | ±0.030% |
| TEMPERATURE EFFECT (10°C) b) on sensitivity | ±0.011% |
| NOMINAL POWER SUPPLY | ±5V → 12-24 Vdc |
| NOMINAL POWER SUPPLY | 4-20 mA and ±10V → 18-24 Vdc |
| MAX. POWER SUPPLY | 28 Vdc, 30 mA |
| MAX. ABSORPTION (without load) | min. 3 KW from 0 to 470 W |
| INSULATION RESISTANCE ZERO BALANCE | >2 GW, ±1% |
| MECHANICAL LIMIT: a) minimum load | 0% |
| MECHANICAL LIMIT: b) service load | 120% |
| MECHANICAL LIMIT: c) max permissible load | 150% |
| MECHANICAL LIMIT: d) breaking load | >300% |
| MECHANICAL LIMIT: e) max transverse load | 100% |
| MECHANICAL LIMIT: f) max permissible dynamic load | 50% |
| DISPLACEMENT AT NOMINAL LOAD | ~0.3 mm |
| REFERENCE TEMPERATURE | +23°C |
| TEMPERATURE NOMINAL RANGE | -10 / +40°C |
| SERVICE TEMPERATURE | -20 / +70°C |
| STORAGE TEMPERATURE | -20 / +80°C |
| WEIGHT Ø57 | ~1.5 kg |
| WEIGHT Ø82 | ~4.2 kg |
| WEIGHT 20 t | ~5 kg |
| PROTECTION CLASS (EN 60529) | IP67 |
| EXECUTION MATERIAL | Acciaio Inox / Stainless Steel |
| CABLE LENGTH | 5 m (on request 10 m) |
| RECOMMENDED KNUCKLE JOINTS | DURBAL EM20 – EM30 – EM42 |
(1) The load cell 5t Ø57 is guaranteed for TENSION up to 2.5t
Option
| USCITA CONNETTORE | CONNECTOR OUTPUT | MIL-C-26482 6 Poles Male connector |
| USCITA CONNETTORE | CONNECTOR OUTPUT | M12 4 Poles Male connector |
| CONNESSIONE ELETTRICA | ELECTRICAL CONNECTION | Female 4 poles straight M12x1 CONNECTOR complete PVC molded CABLE, shielded, length: 3m |

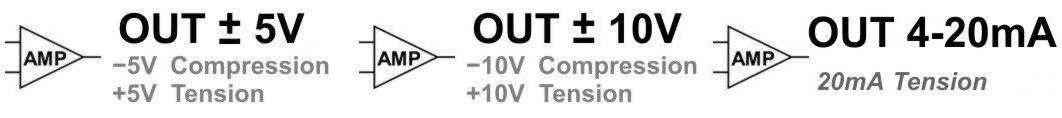

Electrical Connections
