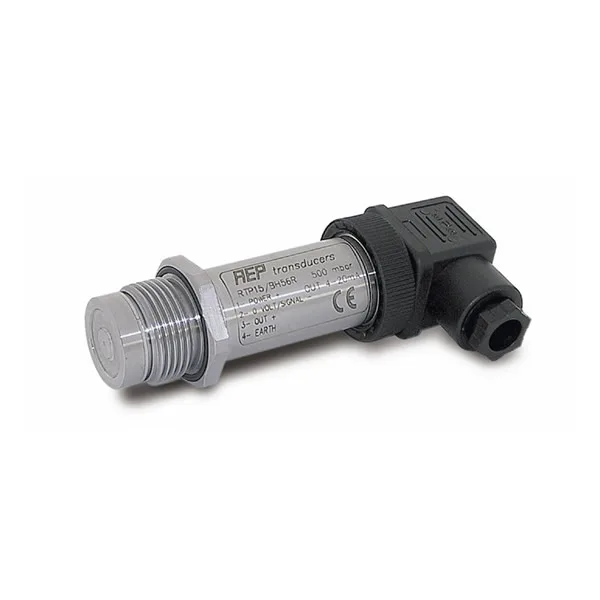

Pressure transmitters for RELATIVE, ABSOLUTE and VACUUM measures Nominal pressures from 1 bar to 50 bar AMPLIFIED outputs: 4-20mA, 10V or 5Volt Linearity and hysteresis 0,50% PROTRUDING DIAPHRAGM
Pressure transmitters belonging to TP15 series, born to solve problems in food industrial sectors, are now commonly used in those productive processes where pressure or level measurements of dense substances are required.
Protruding diaphragm enable to perform an accurate cleaning of the sensor and to prevent from forming of residuals on the measuring area.
The sensitive part, in contact with pressure, is entirely made of corrosion-proof stainless steel.
Every pressure transmitter is entirely LASER welded and completely resin-encapsulated, to ensure insensitivity and a high degree of hermetic tight.
The absence of any assembling via tight rings or gaskets, guarantees a high long-term stability, with negligible hysteresis and zero drift.
Electronic section, realised via SMD technology, consists of a high precision instrumental amplifier and a stable supplier, protected against short circuits and polarity inversion.
During production cycle, pressure transmitters are thermally compensated, tested and individually calibrated with the use of completely automated stations that analyse and record data.
Dimensions
Technical Data
| RELATIVE PRESSURE (R) Zero at atmospheric pressure |
1 – 2.5 – 5 – 10 – 20 – 50 bar |
| LINEARITY and HYSTERESIS | ± 0.50 % |
| TEMPERATURE EFFECT (1°C) a) on zero b) on sensitivity |
± 0.02 % ± 0.02 % |
| NOMINAL SENSITIVITY CALIBRATION TOLERANCE |
4-20mA (2 or 3 wires) 0-5 V, 0-10 V ± 0.1% |
| NOMINAL POWER SUPPLY | 4-20mA and 0-5V → 12-24Vdc 0-10V → 15-24Vdc |
| MAX. POWER SUPPLY MAX. ABSORPTION a) 3 wires b) 2 wires LOADING RESISTANCE a) tension b) current INSULATION RESISTANCE ZERO BALANCE RESPONSE FREQUENCY |
28Vdc
30mA min. 3KW |
| LIMIT MECHANICAL VALUES REFERRED TO NOMINAL PRESSURE a) service pressure b) max. permissible pressure c) breaking pressure d) highly dynamic pressure |
100% 150% >300% 75% |
| REFERENCE TEMPERATURE WORKING TEMPERATURE RANGE STORAGE TEMPERATURE RANGE |
+23°C -10/+70°C -20/+80°C |
| PROCESS COUPLING TIGHTENING WRENCH TIGHTENING TORQUE |
3/4″Gas Maschio / BSP Male 32 mm 25 Nm |
| PROTECTION CLASS (EN 60529) SENSOR EXECUTION MATERIAL ELECTRICAL CONNECTION |
IP65 INOX 17-4 PH DIN 43650 connector – A/ISO 4400 |
OPTIONS
| Electrical Connection | Female 4 poles straight M12x1 connector, complete with PVC molded shielded cable, length: 3 m |
| Alternative Cable | 3 m PVC cable |
| Vacuum (V) Range | (-1/0) (-1/+1) (-1/+2.5) (-1/+5) bar |
| Certification | MOCA certification for food applications (pressure ≥ 20 bar) |
Electrical connections
(1) ZERO ADJUSTMENT is accessible by unscrewing the nut
Connected to body of the pressure transmitter.
