SENSORDATA / T150, T153, T155, T156, T157 Fatigue Rated Flange Coupled Reaction Torque Sensor

SENSORDATA / T150, T153, T155, T156, T157 Fatigue Rated Flange Coupled Reaction Torque Sensor

Sensor Data Technologies Inc.

  • Fatigue Rated Coupled Torque Sensor
  • Flanges
  • Connection: PT02E-10-6P Connector
  • Mating Connector Supplied
  • High Torsional Stiffness
  • Alloy Steel
Category:
Tag:
브랜드:

설명

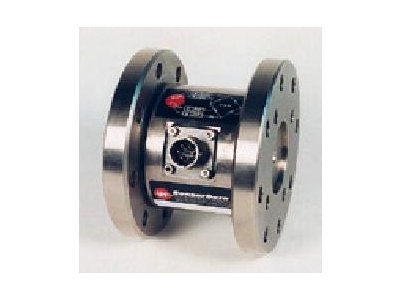

T150 Fatigue Rated Flange Coupled Reaction Torque Sensor

SensorData’s T150 Series of fatigue rated flange coupled torque sensors is designed for use during life testing and “test-to-failure” of drive-line components and where there is a small degree of angular rotation or reciprocating motion involved. The T150 Series with inherent low-end measurement capability can be installed at the driver or absorber end of the measurement chain. Each flange face is provided with a pilot diameter to assist installation. AC carrier or DC strain gage signal conditioning electronics can be used with the T150 Series. Interconnecting cable assemblies are available as an option. In-house calibration of the T150 Series with SensorData’s electronics will be provided free of charge or with customer-supplied electronics for a fee.

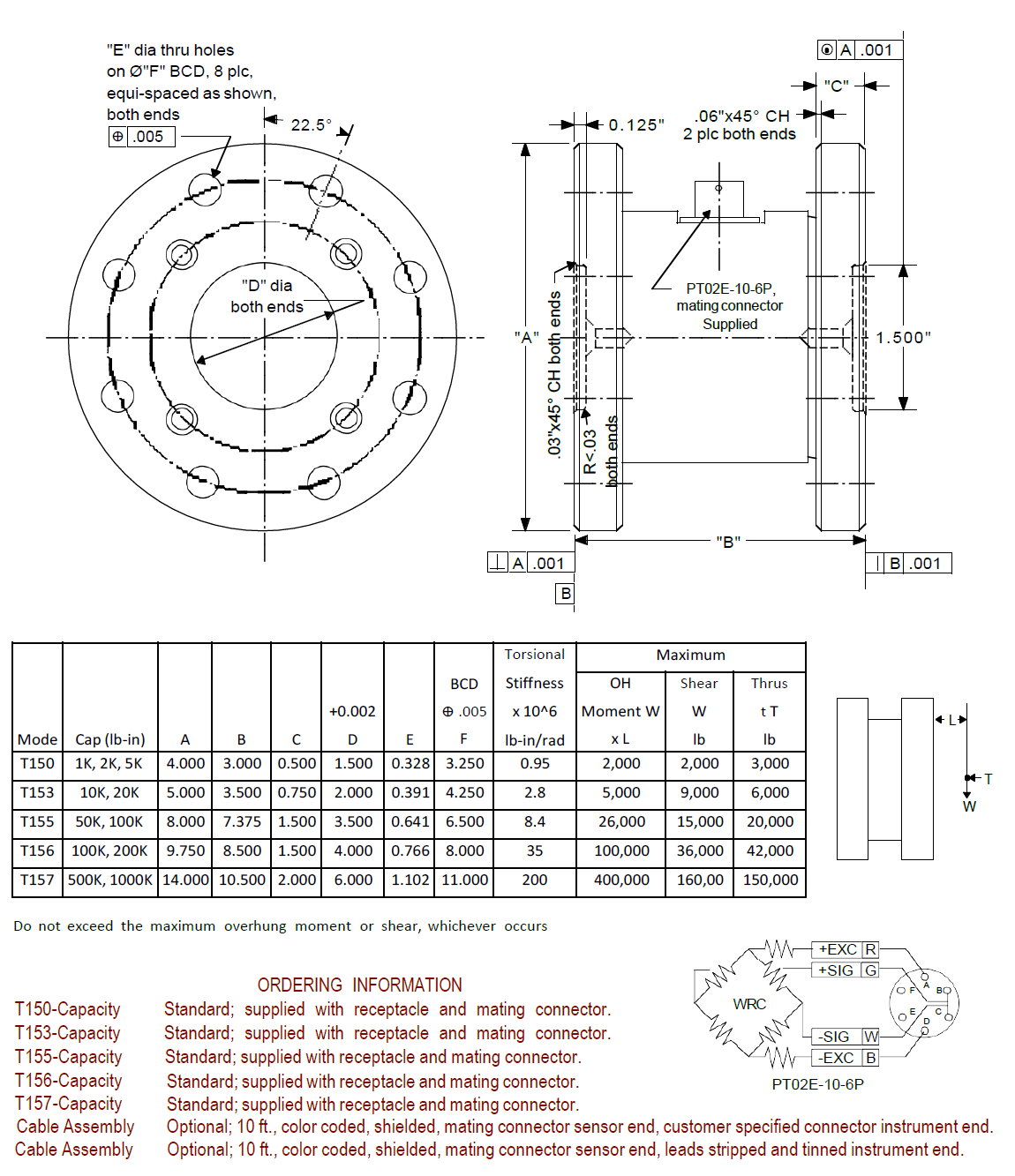

Item Specification
Type Reaction
Full Scale 113 Nm / 226 Nm / 565 Nm / 1130 Nm / 2260 Nm / 5650 Nm / 11300 Nm / 22600 Nm / 56500 Nm / 113000 Nm
Output 2 mV/V
Precision ±0.25 % FS
Excitation 10 V DC / 10 V AC
Drive Side Flange
Test Side Flange
Minimum Temperature -54 °C
Maximum Temperature 93 °C
Models T150 (Max Range 565 Nm)T153 (Max Range 2260 Nm)T155 (Max Range 11300 Nm)T156 (Max Range 22600 Nm)T157 (Max Range 113000 Nm)
