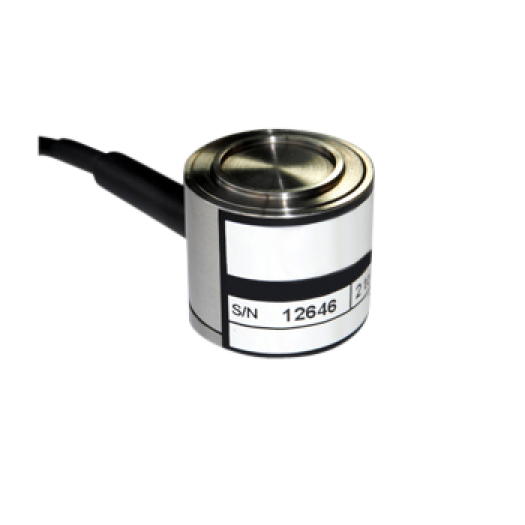

ALF216 Miniature Force Sensor
Technical Specifications
| Specification | Value |
|---|---|
| Bridge resistance | 700 Ω |
| Creep – 20 minutes | ±0.05% AL |
| Excitation voltage – maximum | 20V |
| Excitation voltage – recommended | 10V |
| Hysteresis | ±0.5% RL |
| Insulation resistance – minimum at 50vdc | 500 MΩ |
| Load direction | Compression |
| Measurement range | 5kN, 10kN, 20kN, 40kN |
| Non-linearity – terminal | ±0.5% RL |
| Overload – safe | 50% RL |
| Overload – ultimate | 400% RL |
| Rated output – nominal | 1.2mV/V |
| Rated output – rationalised | 1.0mV/V |
| Rationalisation tolerance | ±0.5% RL |
| Repeatability | ±0.02% RL |
| Sealing | IP65 |
| Temperature effect on rated output per °c | ±0.005% AL |
| Temperature effect on zero load output per °c | ±0.03% RL |
| Temperature range – compensated | -10 to +50°C |
| Temperature range – safe | -10 to +80°C |
| Weight – nominal (excluding cable) | 90 to 100g |
| Zero load output | ±4% RL |
