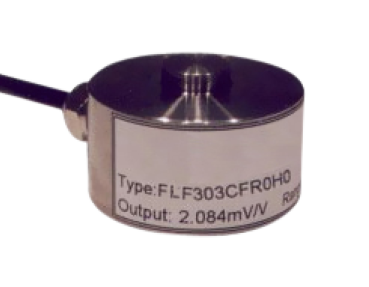

ALF303 Miniature Force Sensor
Technical Specifications
| Specification | Value |
|---|---|
| Bridge resistance | 350 Ω |
| Creep – 20 minutes | ±0.1% AL |
| Excitation voltage – maximum | 10V |
| Excitation voltage – recommended | 10V |
| Hysteresis | ±2.0% RL |
| Insulation resistance – minimum at 50vdc | 500 MΩ |
| Load direction | Compression |
| Measurement range | 20kN, 40kN |
| Non-linearity – terminal | ±2.0% RL |
| Overload – safe | 50% RL |
| Overload – ultimate | 200% RL |
| Rated output – nominal | 2 ±20%mV/V |
| Rated output – rationalised | 2.0mV/V |
| Rationalisation tolerance | ±1% RL |
| Repeatability | ±0.1% RL |
| Sealing | IP65 |
| Temperature effect on rated output per °c | ±0.04% AL |
| Temperature effect on zero load output per °c | ±0.05% RL |
| Temperature range – compensated | -10 to +50°C |
| Temperature range – safe | -10 to +80°C |
| Weight – nominal (excluding cable) | 120g |
| Zero load output | ±6% RL |
