ALW4 Hermetic load washer
Key features
- Force range up to 20,000 lbf
- Fully laser welded stainless steel body
- IP68 hermetically sealed construction
- Excellent non-linearity ±0.5% FS
- Wide operating temperature -20 to +80°C
- 5-point compression calibration standard
About the ALW4 Hermetic load washer
The ALW4-1 Hermetic Load Washer delivers precise force measurements in compact environments. Designed with a stainless steel strain gauge and laser welded construction, it ensures optimal durability, even in harsh industrial conditions. With rated capacities from 1,000 to 20,000 lbf and non-linearity better than ±0.5% of full scale, it is built for performance.
Usage conditions
Thanks to its IP68 rating and compensated temperature range of -15°C to +71°C, the ALW4-1 load washer is ideal for both indoor and outdoor industrial applications. Its 8-pin M12 male connector and robust build make it suitable for embedded use in machinery and structural components.
Possible applications
- Preload control in bolted joints
- Structural health monitoring
- Industrial press force measurement
- OEM integrations in robotics and machinery
- Load monitoring in rotating equipment
Advantages of choosing this product
Choosing the ALW4-1 means opting for a sensor that combines rugged design with precise force measurement. Its hermetically sealed construction guarantees long-term performance with minimal maintenance, while its compact format supports space-constrained installations.
Other important features
- Multiple screw sizes from 1/8” to 1 ½”
- Operating range: -20 to +80°C
- Optional digital, voltage, or current loop outputs
- Minimal deflection (0.05 mm)
- Nominal bridge resistance: 700 Ω
- Available with fast delivery options
Technical Specifications
| Specification | Value |
|---|---|
| Capacity (lbf) | 1K, 2K, 5K, 7.5K, 10K, 20K |
| Rated Output (RO) (mV/V) | 2 nominal |
| Safe Overload (%) | 150 of RO |
| Zero Balance (%) | ±5 of RO |
| Excitation (VDC or VAC) (V) | 5 (recommended), 10 max. |
| Bridge Resistance | 700 Ω nom. |
| Non-Linearity (%) | ±0.5 of RO |
| Hysteresis (%) | ±0.5 of RO |
| Non-Repeatability (%) | ±0.1 of RO |

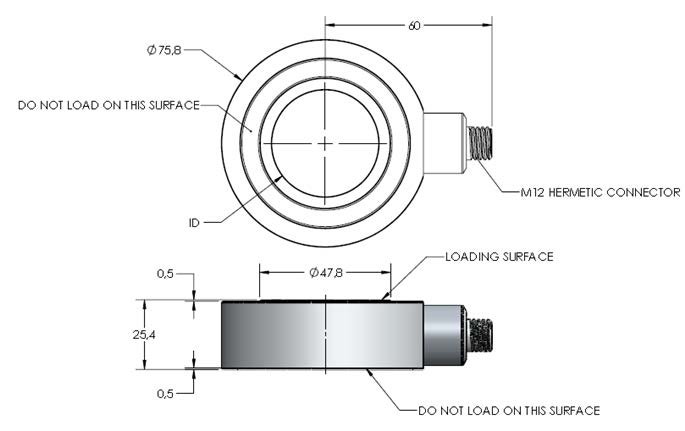

DIMENSIONS

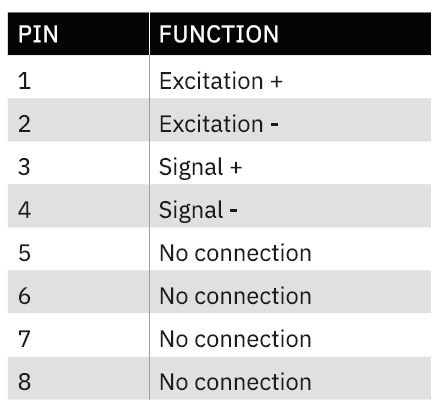

WIRING CODES
NOTE: Voltage, current loop or digital output versions are also available on request.

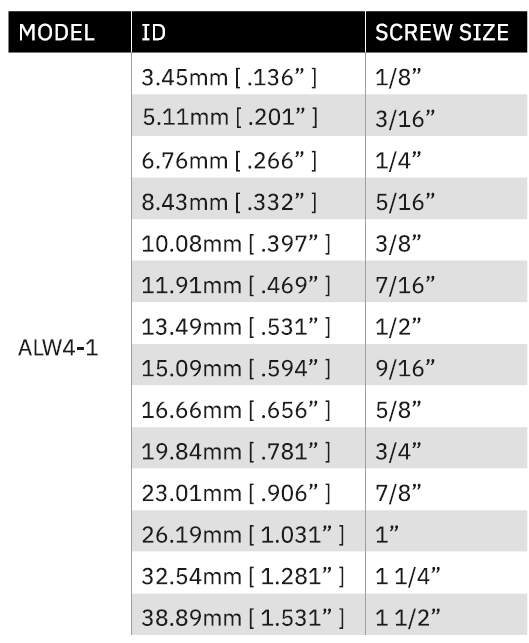

ORDER DETAILS
| Screw Size (inch) | Capacity (lb) | |||
| ALW4 | – | 1 | X/X 1/8 | xxxxx 1,000 |
| 3/16 | 2,000 | |||
| 1/4 | 5,000 | |||
| 5/16 | 7,500 | |||
| 3/8 | 10,000 | |||
| 7/16 | 20,000 | |||
| 1/2 | ||||
| 9/16 | ||||
| 5/8 | ||||
| 3/4 | ||||
| 7/8 | ||||
| 1 | ||||
| 1¼ | ||||
| 1½ | ||||
