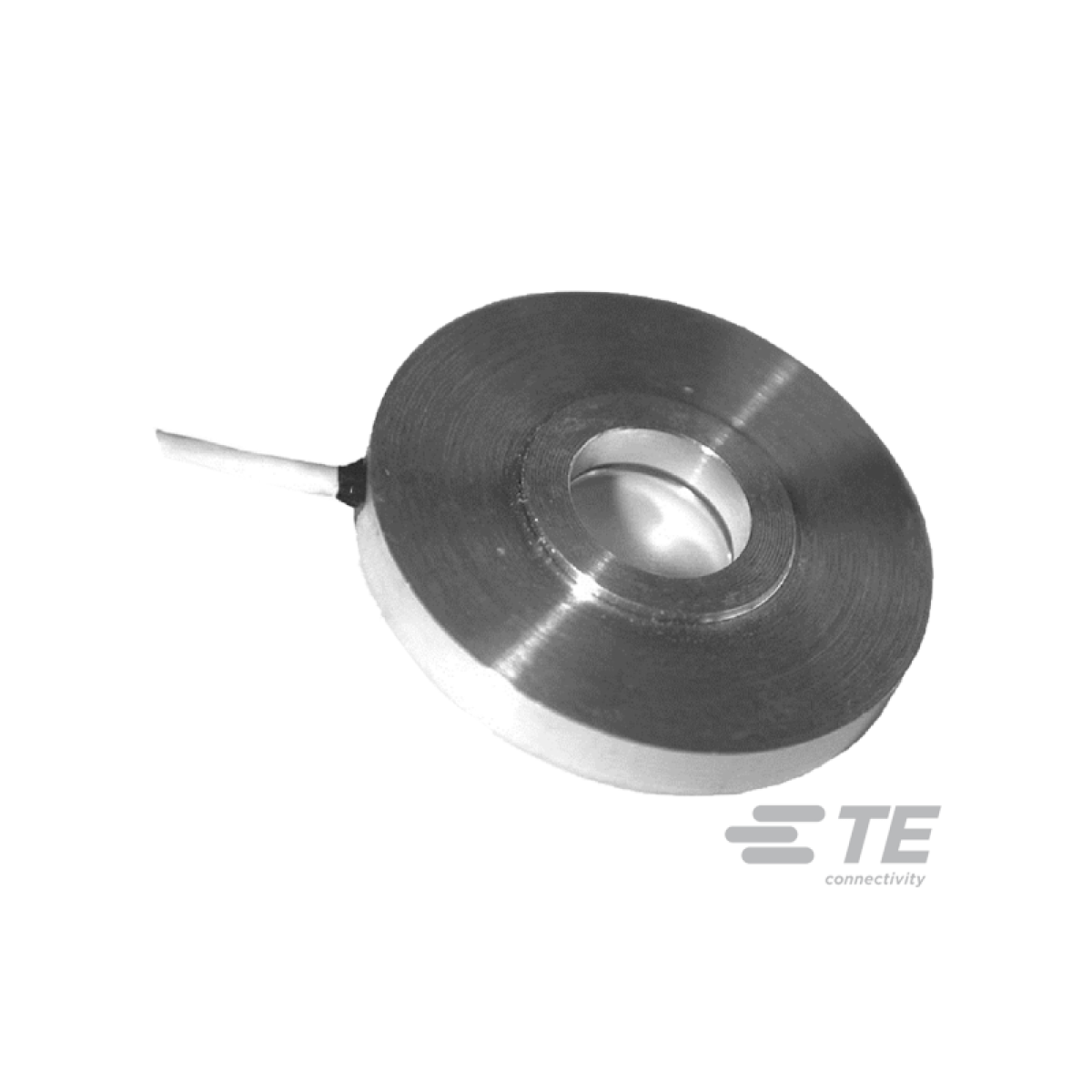

XFL225D Miniature Force Sensor

Key features

• Load washer model
• Flat sensor
• Inside hole 8mm or flat surface
• Temperature compensated

About the XFL225D Miniature Force Sensor

The XFL225D series is a very flat miniature load cell with a temperature compensation module integrated into the output cable.

The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The XFL225D is developed for measuring large full scale ranges up to 5000N; 1000 lbf and can withstand considerable overloads. It can measure strain during compression in static and dynamic applications. A strain relief spring strengthens the cable output. This sensor is available in a load washer model (the diameter of the hole is 8.2 mm) to measure bolt tightening forces.

Applications for XFL225D

• Strain table measurement
• Micro component assembly tools
• Screw and insert test benches
• Press fit monitoring
• Laboratory
