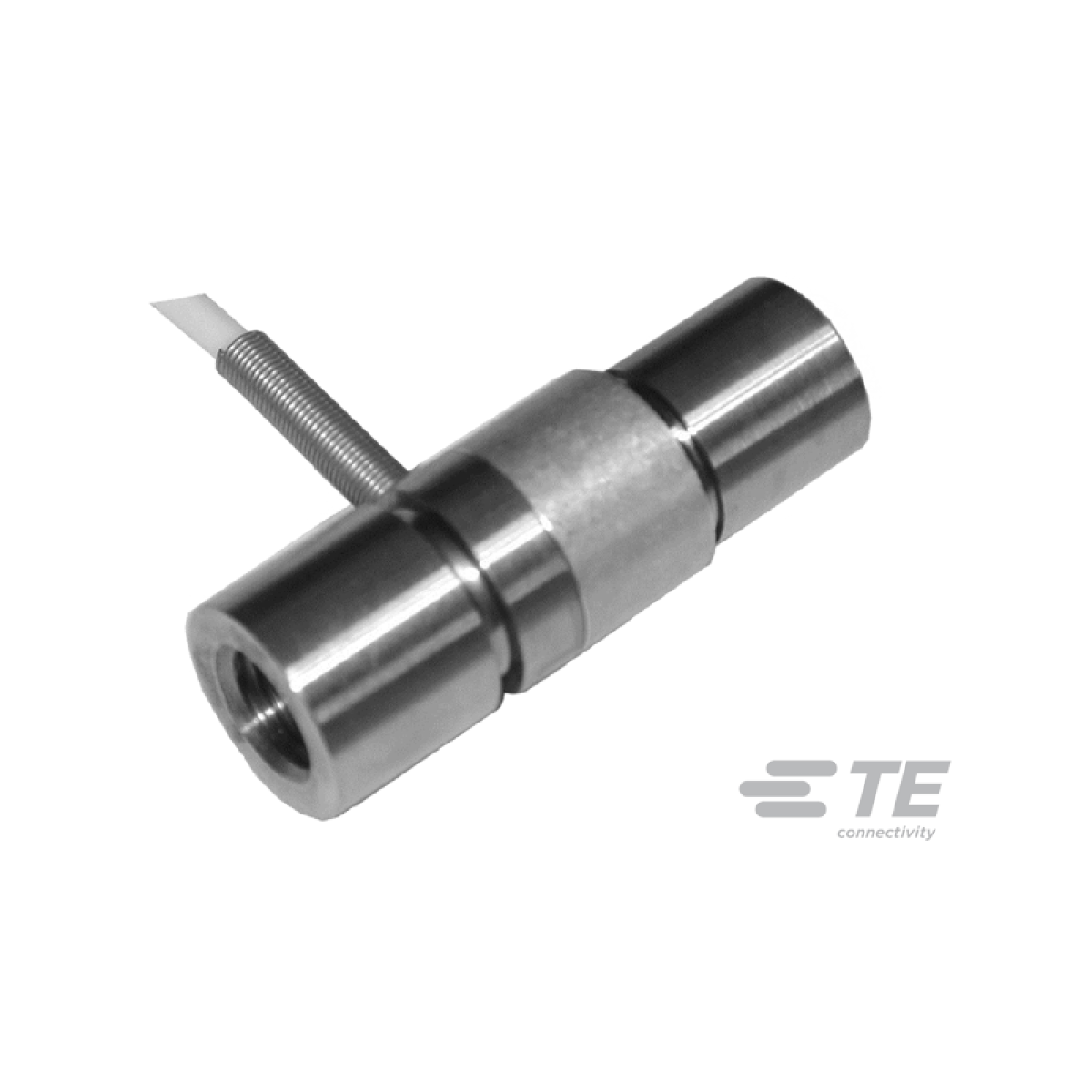

XFTC322 Miniature Force Sensor
Key features
- Wide range of temperature compensated
- Optional IP rating improvement
- Heavy duty
- High stiffness
About the XFTC322 Miniature Force Sensor
The XFTC322 series has been specifically developed to measure tension and/or compression in static and dynamic applications.
Fitted with metallic strain gages in a Wheatstone bridge circuit, the XFTC322 has the capacity of measuring heavy loads of up to 10 kN [2 klbf], while providing excellent temperature stability. With two threaded M10 studs, the XFTC322 is easily installed in industrial or OEM applications. A strain relief spring strengthens the cable output.
Applications for XFTC322
- Dynamic strain cylinder regulation
- Miniature press-fit device
- Fatigue test benches
- Robotics regulation
- Heat room environment
Technical Specifications
| Specification | Value |
|---|---|
| Accuracy | ±.5% of FS |
| Force introduction | Female threaded |
| Housing material | Stainless steel |
| Load direction | Compression, tension |
| Measurement range | 5kN, 10kN |
| Operating temperature | -55 – 175°C |
| Output signal | ±1mV/V, ±2V |
| Sealing | IP50 |
